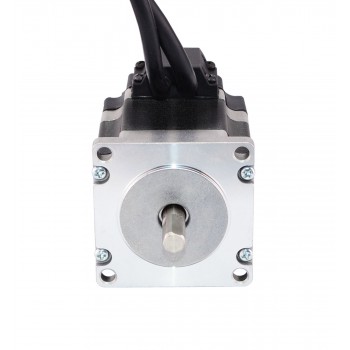

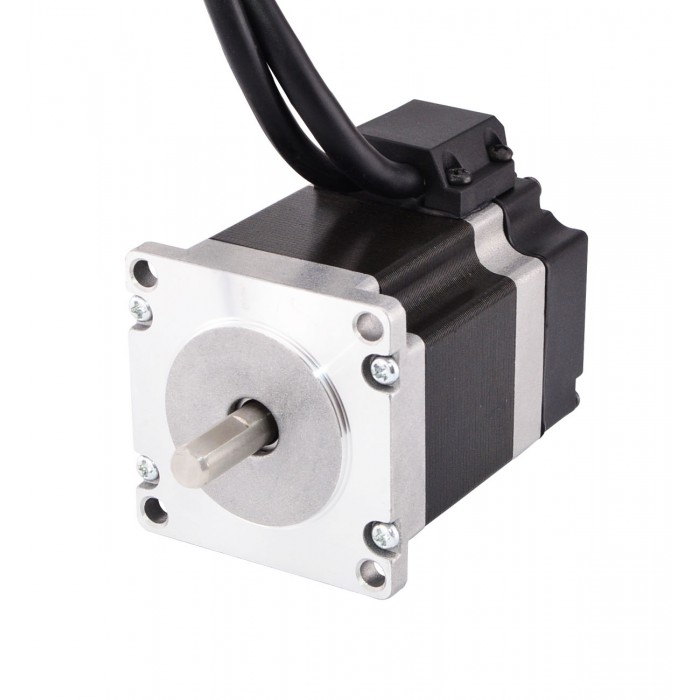

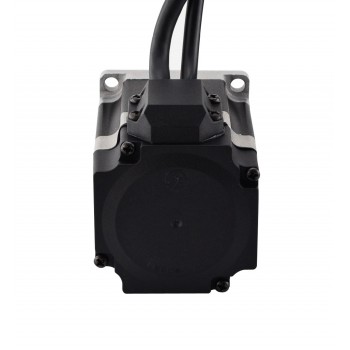

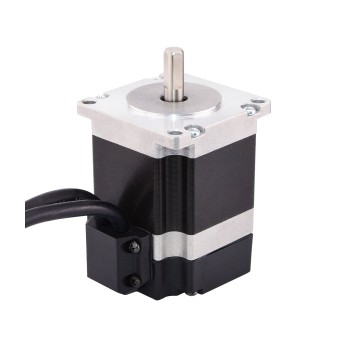

Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.26Nm/178.4oz.in 2.8A 2.5V with Encoder 1000CPR

Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.26Nm/178.4oz.in 2.8A 2.5V with Encoder 1000CPR
NO.:23HS22-2804D-E1000
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$59.63
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $56.65 5%
10 $55.46 7%
50 $53.67 10%
100 $51.88 13%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 23HS22-2804D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Closed Loop Stepper Motor 0.9 Deg 0.9Nm/128oz.in 0.38A 12.1V with Encoder 1000CPR
Next: Nema 23 Closed Loop Stepper Motor Bipolar 1.8 Deg 1.9Nm 2.8A 3.2V with Encoder 1000CPR
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 56
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Bipolar/Unipolar Bipolar
Electrical Specification
Output Frequency(MHz) ≤1MHz
Encoder Specification
Rated Voltage(V) 5V
Output Current(mA) 55
Resolution(CPR) 1000
Output Signal Channels 2 Channels
Running Speed(rpm) ≤5000rpm
IP Protection IP20
Physical Specification
Weight(g) 800
