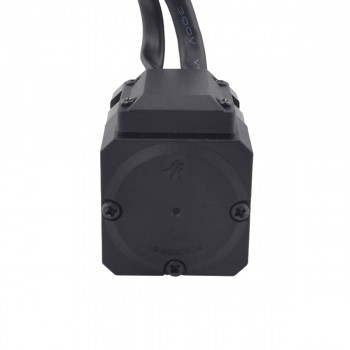

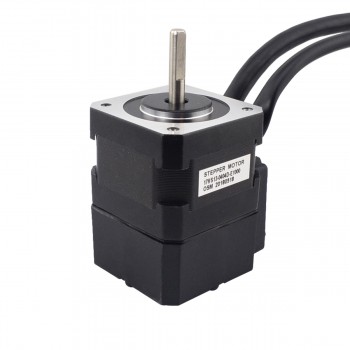

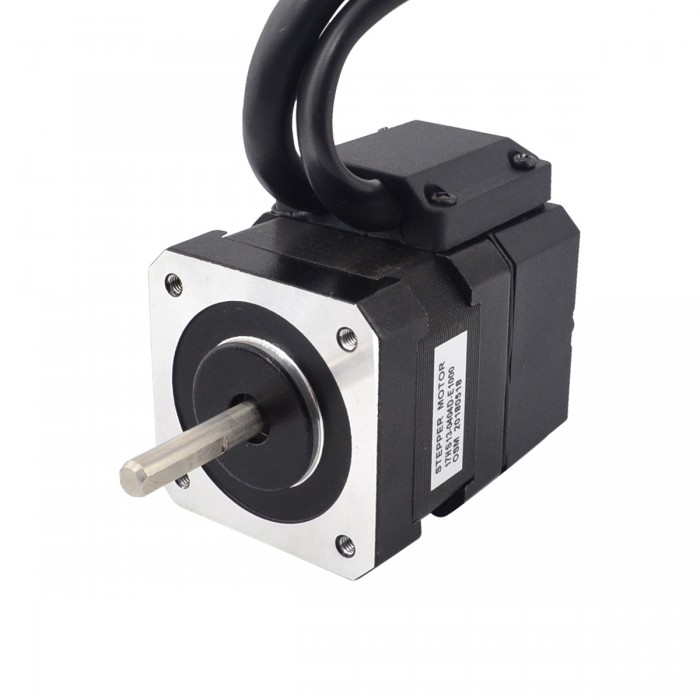

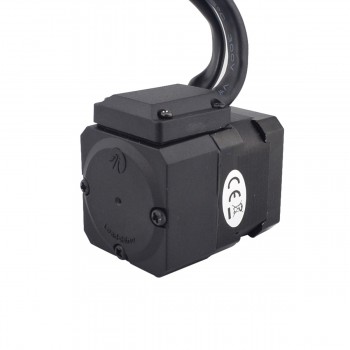

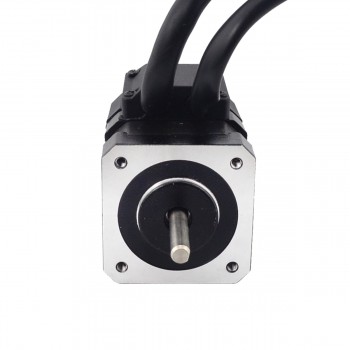

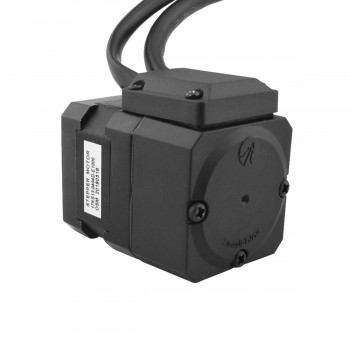

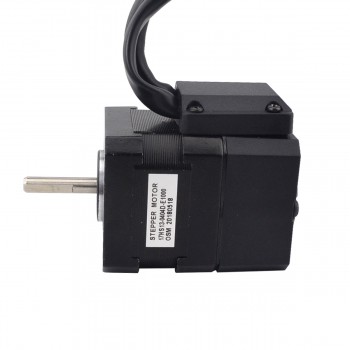

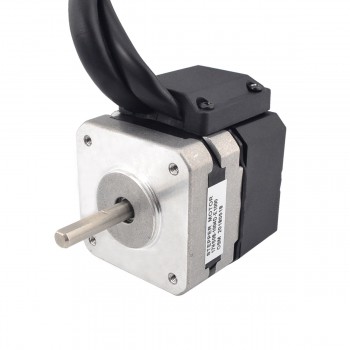

Nema 17 Closed Loop Stepper Motor Bipolar 1.8 Deg 26Ncm/36.83oz.in 0.40A 12V with Encoder 1000CPR
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$36.21
Motor Specification
- Manufacturer Part Number: 17HS13-0404D-E1000
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 0.26Nm(36.83oz.in)
- Rated Current/phase: 0.40A
- Voltage: 12.00V
- Phase Resistance: 30ohms
- Inductance: 37.00mH ± 20%(1KHz)
- Frame Size: 42 x 42mm
- Motor Length: 34mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-Cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Driving Voltage : 4.5V to 5.5V
- Output current : 20mA
- Resolution : 1000cpr
- Output Signal : 2 Channels
- Bore Diameter : Φ5mm
- Output Frequency : ≤60MHz
- Running Speed : ≤3600rpm
- IP Protection: IP20
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Green
|
Black
|
Red
|
Blue
|
Resources
- Motor Datasheet: 17HS13-0404D-E1000.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.826 |
| Inductance(mH) | 37 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Encoder Specification | |
| IP Protection | IP20 |
| Output Current(mA) | 20 |
| Output Frequency | ≤60KHz |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
| Running Speed(rpm) | ≤3600rpm |
| Output Signal Channels | 2 Channels |
No reviews
View History

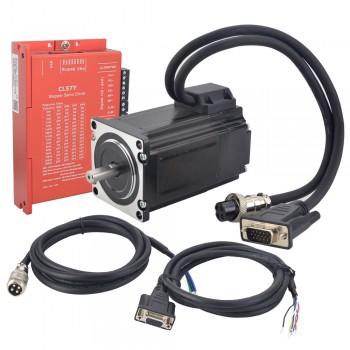

Related Products
