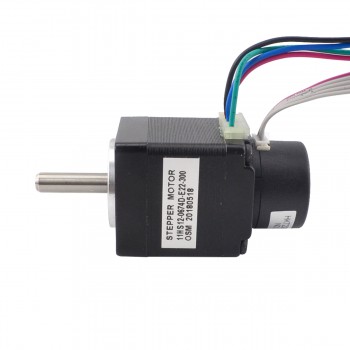

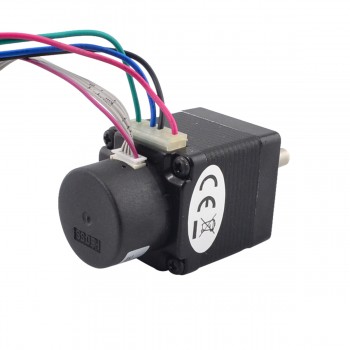

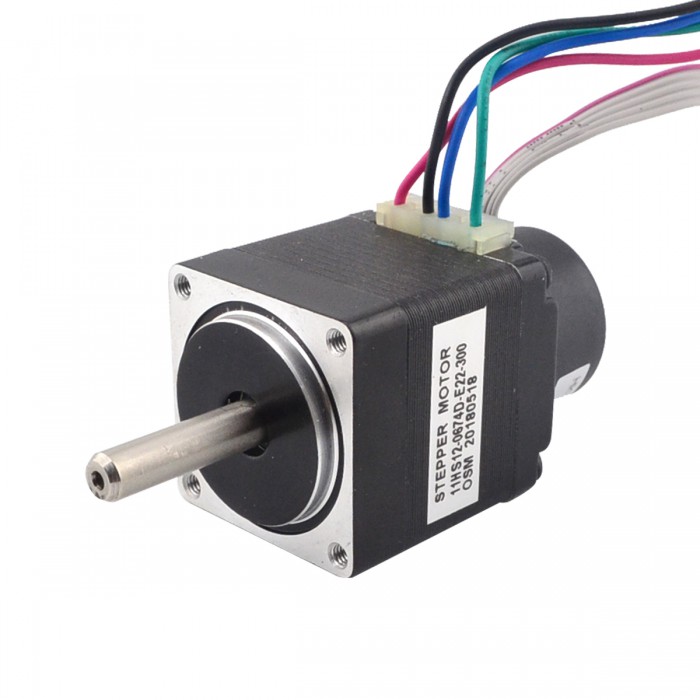

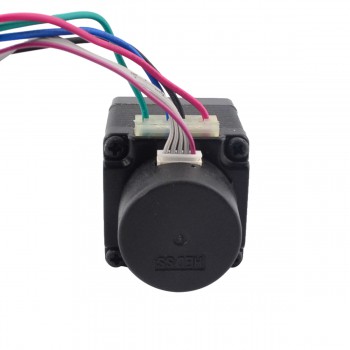

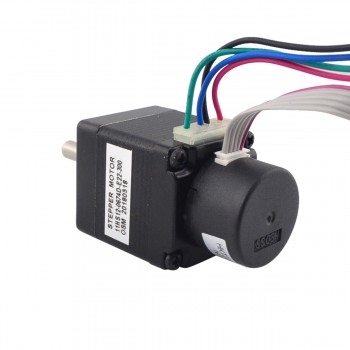

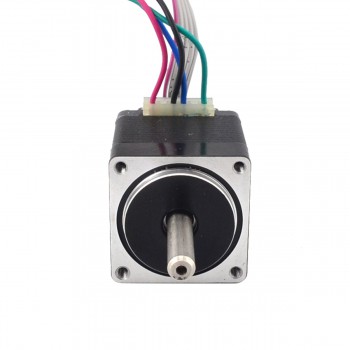

Nema 11 Closed Loop Stepper Motor Bipolar 1.8 Deg 0.07Nm/9.91oz.in 0.67A 3.75V with Encoder 300CPR
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$47.14
Motor Specification
- Manufacturer Part Number: 11HS12-0674D-E22-300
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 0.07Nm(9.91oz.in)
- Rated Current/phase: 0.67A
- Voltage: 3.75V
- Phase Resistance: 5.60ohms
- Inductance: 4.00mH ± 20%(1KHz)
- Frame Size: 28 x 28mm
- Motor Length: 32mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Driving Voltage : 5VDC
- Output current : ≤20mA
- Resolution : 300cpr
- Output Signal : 2 Channels
- Shaft Diameter : Φ5mm
- Output Frequency : ≤30KHz
- Output Low Voltage: ≤0.3VDC
- Output High Voltage: ≥3.4VDC
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Motor Datasheet: 11HS12-0674D-E22-300.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 7 |
| Holding Torque (oz.in) | 9.915 |
| Inductance(mH) | 4.0 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 11 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 5.6 |
| Rated Current (A) | 0.67 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Step Angle(°) | 1.8 |
| Encoder Specification | |
| Output Current(mA) | 20 |
| Output Frequency | ≤30KHz |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 300 |
| Output High Voltage(VDC) | ≥3.4 |
| Output Low Voltage(VDC) | ≤0.3 |
| Output Signal Channels | 2 Channels |
