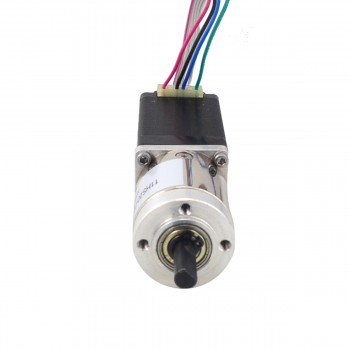

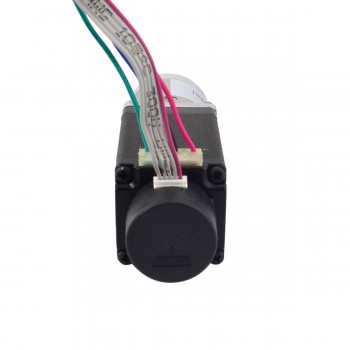

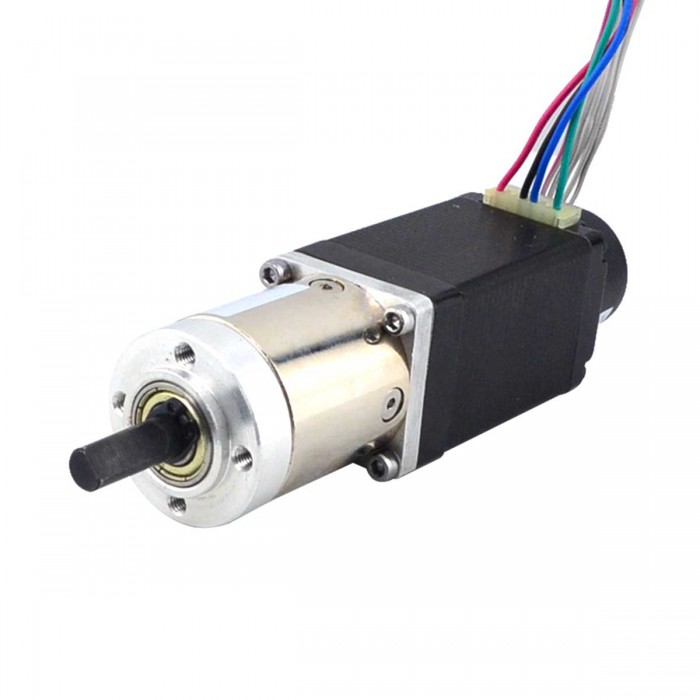

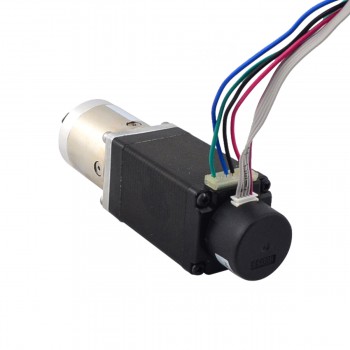

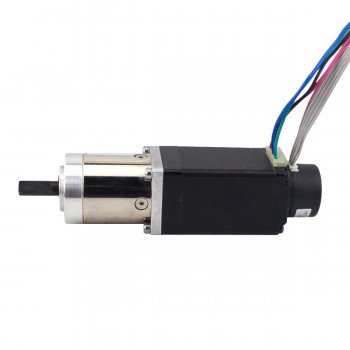

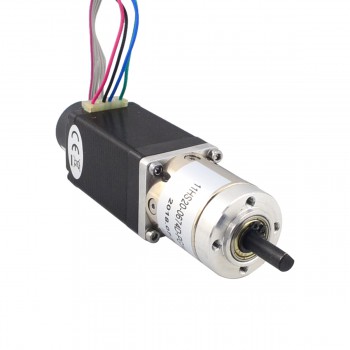

Nema 11 Closed-loop Geared Stepper L=51mm 1.8 Deg 0.14Nm 0.67A 8.04V with14:1 Planetary Gearbox & Encoder 300CPR

NO.:11HS20-0674D-PG14-E22-300
Post a review

Special Offer in December 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till December 7th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$77.15

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$73.29	5%
10	$71.75	7%
50	$69.44	10%
100	$67.12	13%

Affiliate Link

Description Specification Custom Options Review

Motor Specification

Manufacturer Part Number: 11HS20-0674D-PG14-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12.00ohms
Voltage: 8.04V
Inductance: 6.50mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 13.73
Efficiency: 81%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 3Nm(424.92oz.in)
Moment Permissible Torque: 5Nm(708.2oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Encoder Specification

Supply Voltage : 5VDC
Output current : ≤20mA
Resolution : 300cpr
Output Signal : 2 Channels
Shaft Diameter : Φ4mm
Output Frequency : ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Motor Datasheet: 11HS20-0674D-PG14-E22-300.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Closed-loop Geared Stepper Bipolar 1.8 Deg L=51mm 0.67A 8.04V with 5:1 Encoder 300CPR
Next: Nema 11 Closed-loop Geared Stepper Bipolar L=51mm 1.8 Deg 0.14Nm 0.67A 8.04V with 51:1 Encoder 300CPR

Motor Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	14
Holding Torque (oz.in)	19.83
Lead Length(mm)	500
Motor Nema Size	Nema 11
No. of Lead	4
Phase Resistance(ohm)	12
Rated Current (A)	0.67
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Step Angle(°)	1.8
Encoder Specification
Output Current(mA)	20
Output Frequency	≤30KHz
Rated Voltage(V)	5
Resolution(CPR)	300
Output High Voltage(VDC)	≥3.4
Output Low Voltage(VDC)	≤0.3
Output Signal Channels	2 Channels
