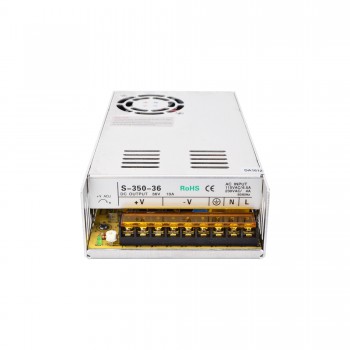

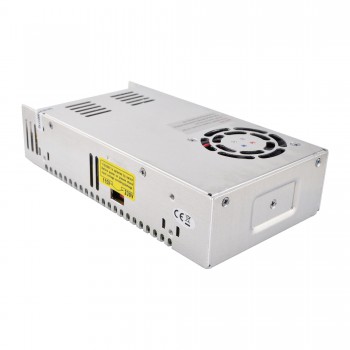

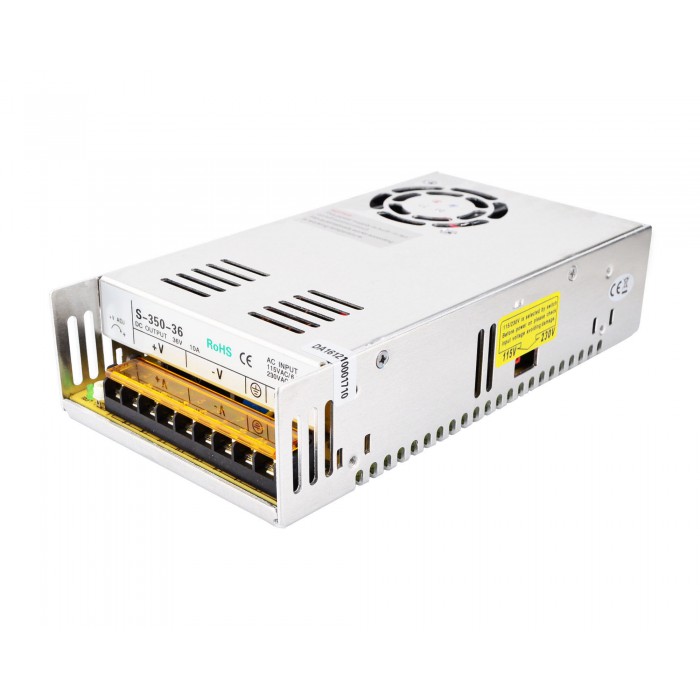

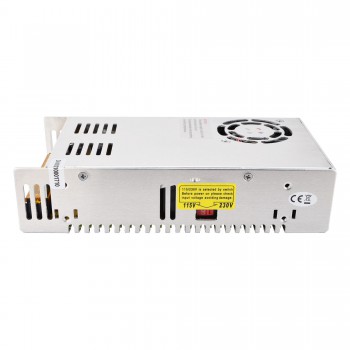

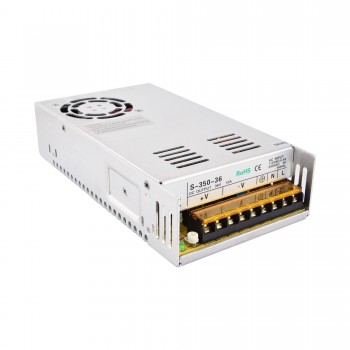

350W 36V 9.7A 115/230V Switching Power Supply for CNC Stepper Motor / Servo Motor System
This professional 350W 36V 9.8A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) .
Key Features
36V DC 9.8A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
Resources
Full Datasheet: S-350-36.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Output Voltage(V) | 36 |
| Power(W) | 350 |
| Max. Output Current(A) | 9.8 |
| Input Voltage(V) | 115/230 |
| Physical Specification | |
| Weight(g) | 1100 |
