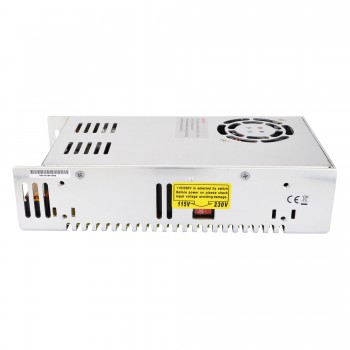

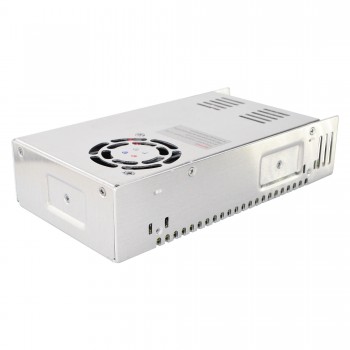

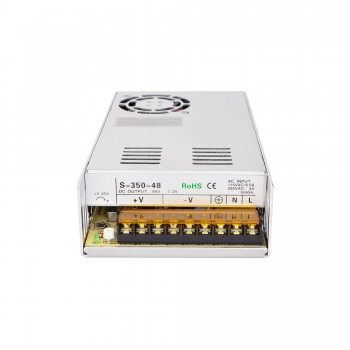

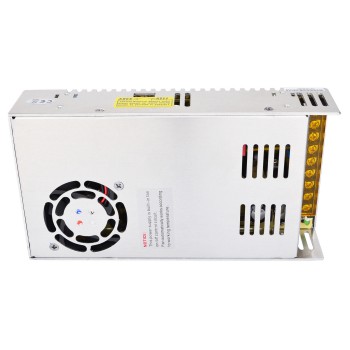

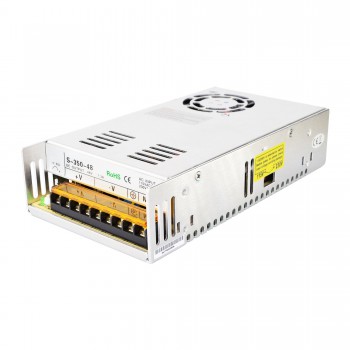

350W 48V 7.3A 115/230V Switching Power Supply for CNC Stepper Motor / Servo Motor System
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This professional 350W 48V 7.3A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling).
Key Features
48V DC 7.3A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
Resources
Full Datasheet: S-350-48.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Output Voltage(V) | 48 |
| Power(W) | 350 |
| Max. Output Current(A) | 7.3 |
| Input Voltage(V) | 115/230 |
| Physical Specification | |
| Weight(g) | 1100 |
Jeff – 02 Oct 2017
This supply is fairly stable when not connected to a driver or motor. The back EMF from my NEMA 24 did cause the voltage to fluctuate some (47.0 to 48.2 volts) But did not cause any problems with my driver or motor. My DM542T driver can accept up to 50 volts, so I would recommend 1 to 1.5 volts from max of your driver input so that back EMF will not cause you to exceed the input voltage of a driver.. I do not fault the supply for this, it is just the mature of driving a stepper motor to high rpm and slowing it back down to a stop.
This supply shows no signs of stress or heat when operating a NEMA 24 at 1350 RPMs for a continuous 25 minutes. I highly recommend this supply up to at least NEMA 24 motor sizes.
