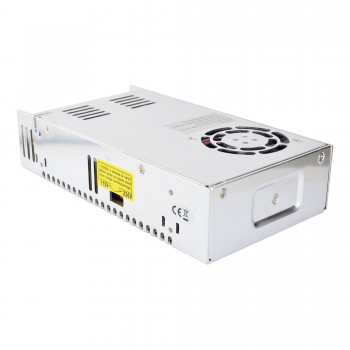

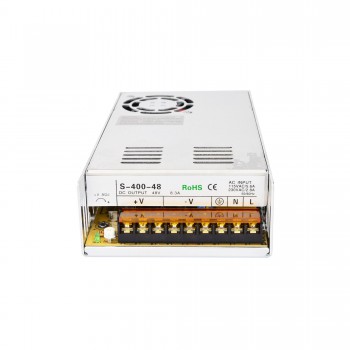

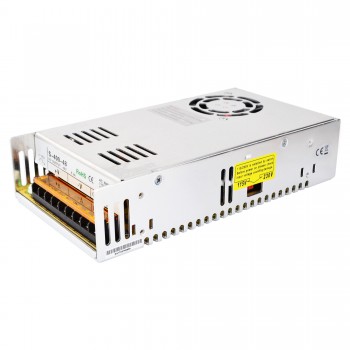

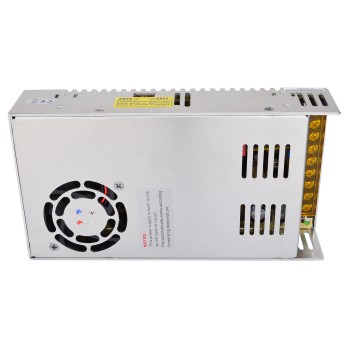

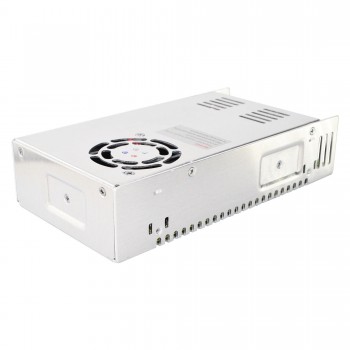

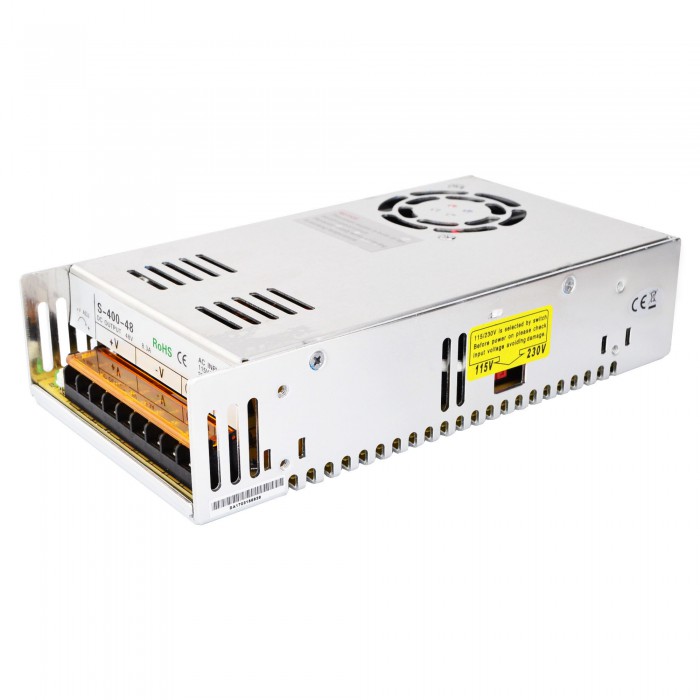

400W 48V 8.3A 115/230V Switching Power Supply for CNC Stepper Motor / Servo Motor System
This professional 400W 48V 8.3A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Machines.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling).
Key Features
48V DC 8.3A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
Resources
Full Datasheet: S-400-48.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Output Voltage(V) | 48 |
| Power(W) | 400 |
| Max. Output Current(A) | 8.3 |
| Input Voltage(V) | 115/230 |
| Physical Specification | |
| Weight(g) | 1150 |
