DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!

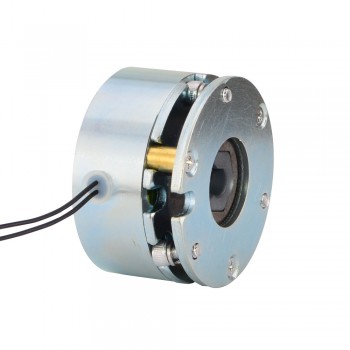

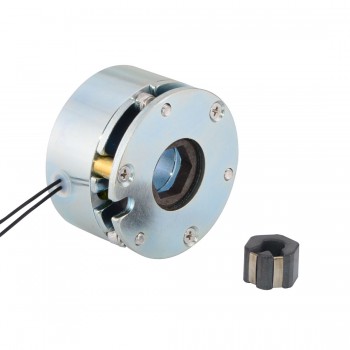

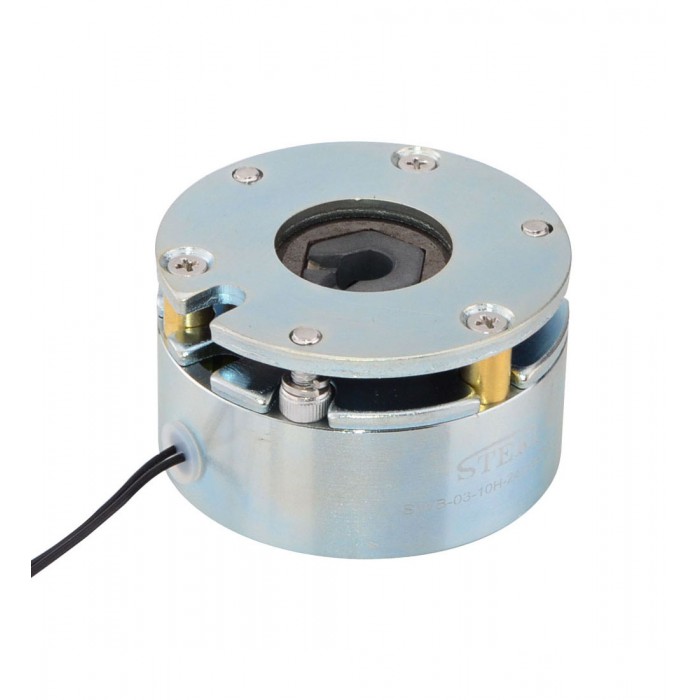

This brake is Non-excited brake and operate with 24VDC, it can create Max 0.24Nm(34oz.in) static friction torque. It's a good choice for Nema 17 size stepper motor.
The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.
Brake Specification
- Brake Type: Non-excited
- Static Friction Torque : 0.24Nm(34oz.in)
- Moment of Interia : 0.6x10-6 kg.cm2
- Voltage : 24V
- Power: 5W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.2kg
Resources
- Brake Datasheet: SWB-01.pdf
