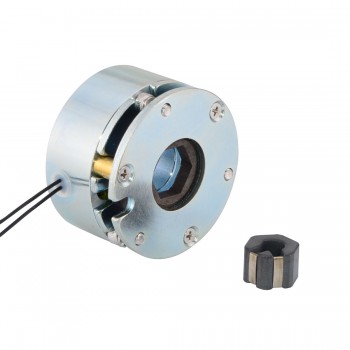

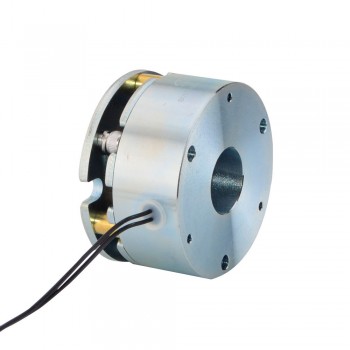

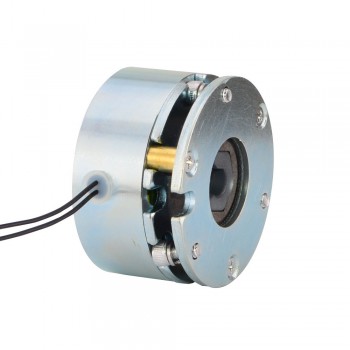

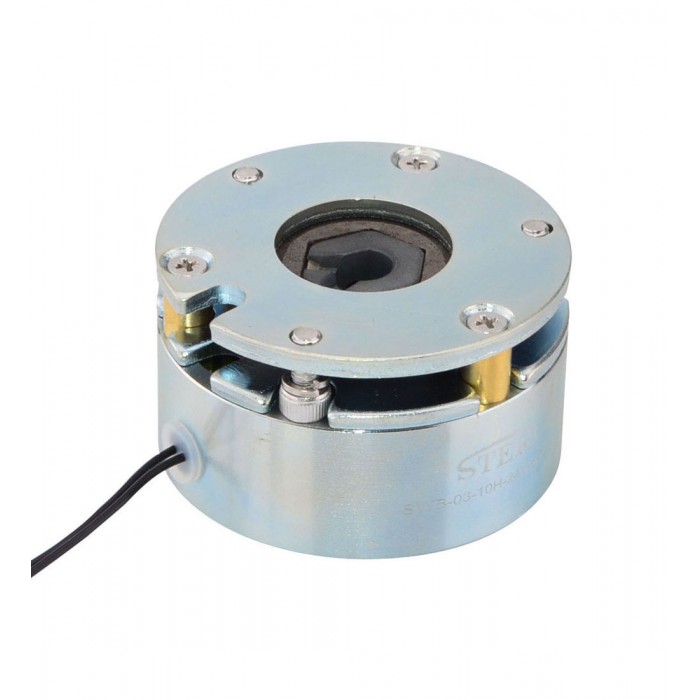

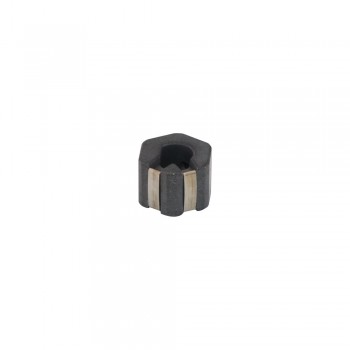

DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor

DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor
NO.:SWB-03
Review: Post a review
Our Price:$61.62
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $58.54 5%
10 $57.31 7%
50 $55.46 10%
100 $53.61 13%
Add To Cart

This brake is Non-excited brake and operate with 24VDC, it can create Max 2Nm(283.2oz.in) static friction torque. It's fit for Nema 23 and Nema 24 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

Brake Type: Non-excited

Static Friction Torque: 2Nm(283.2oz.in)

Moment of Interia : 3.8x10-6 kg.cm2

Voltage: 24V

Power: 11.5W

Heat-resistance Class: F

Max. Speed : 5000rpm

Weight : 0.4kg



Resources

Brake Datasheet: SWB-03.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor
Next: DC Electromagnetic Brake 24V 4.0Nm(566oz.in) 13W for Nema 34 Stepper Motor
Brake Specification
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 3.8x10-6
Power(W) 11.5
Static Friction Torque(Nm) 2
Static Friction Torque(oz.in) 283
Driving Voltage(V) 24
