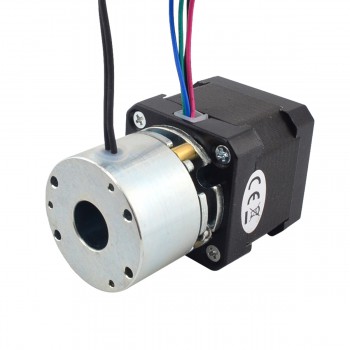

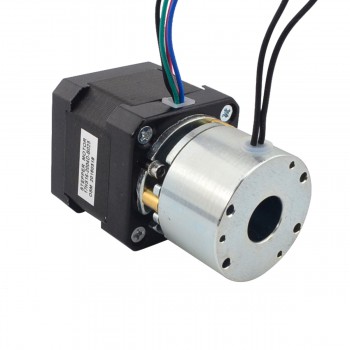

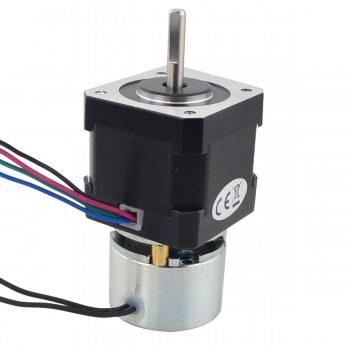

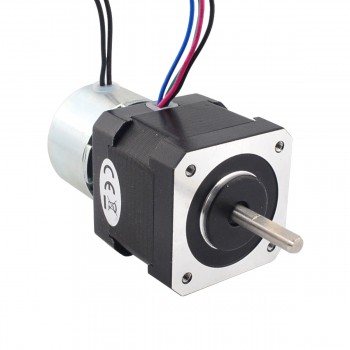

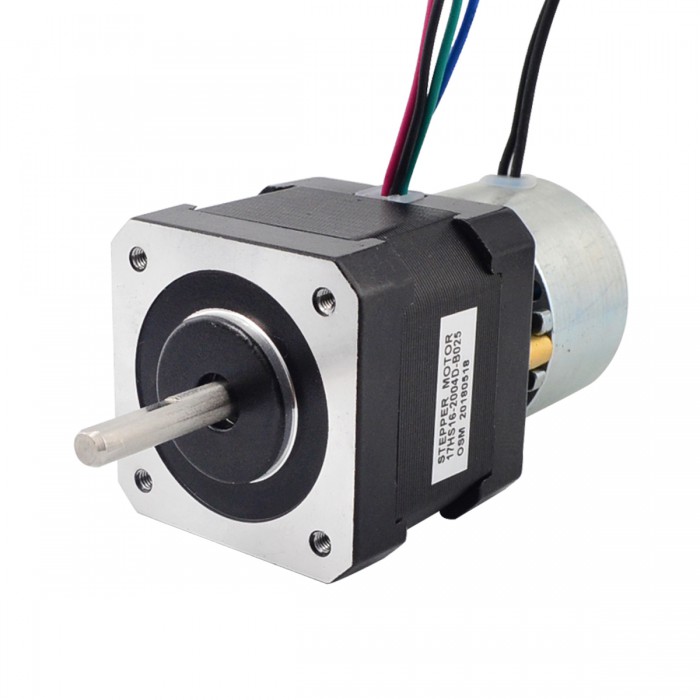

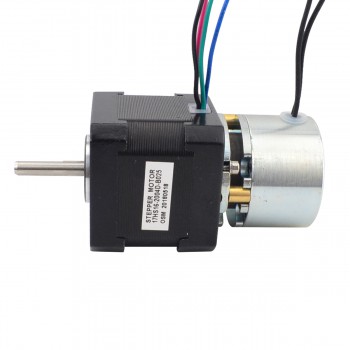

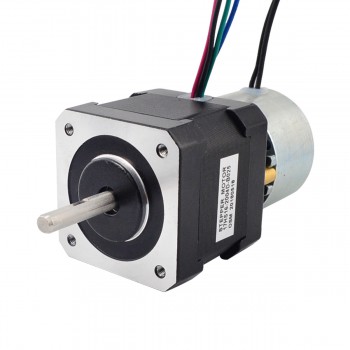

Nema 17 Stepper Motor Bipolar 1.8 Deg 0.65Nm(92oz.in) 2A 2.20V with Non-excited Brake
- Manuals and Documentation: Motor Datasheet:
Our Price:$60.24
This NEMA 17 bipolar stepper holds 0.45 Nm at 2.0 A, features a 1.8° step angle, and includes a 24 V brake with 0.25 Nm holding torque.

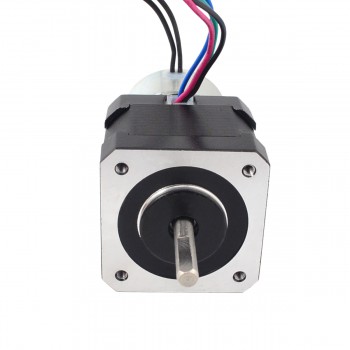

Motor Specification
Manufacturer Part Number: 17HS16-2004D-B025
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.45Nm(63.74oz.in)
Rated Current/phase: 2.00A
Voltage: 2.20V
Phase Resistance: 1.1ohms
Inductance: 2.60mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Motor Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

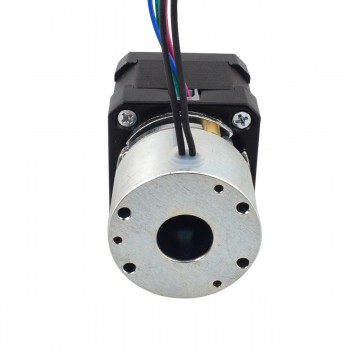

Brake Specification
Brake Type: Non-excited
Static Friction Torque: 0.25Nm(35.4oz.in)
Moment of Interia: 0.6x10-6kg.cm2
Voltage: 24V
Power: 5W
Heat-resistance Class: F
Max.Speed: 5000rpm
Weight: 0.2kg
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 45 |
| Holding Torque (oz.in) | 63.738 |
| Inductance(mH) | 2.6 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.1 |
| Rated Current (A) | 2.0 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Heat-resistance Class | F |
| Max. Speed(rpm) | 5000 |
| Moment of Interia(kg.cm2) | 0.6x10-6 |
| Power(W) | 5 |
| Static Friction Torque(Nm) | 0.25 |
| Static Friction Torque(oz.in) | 35.4 |
