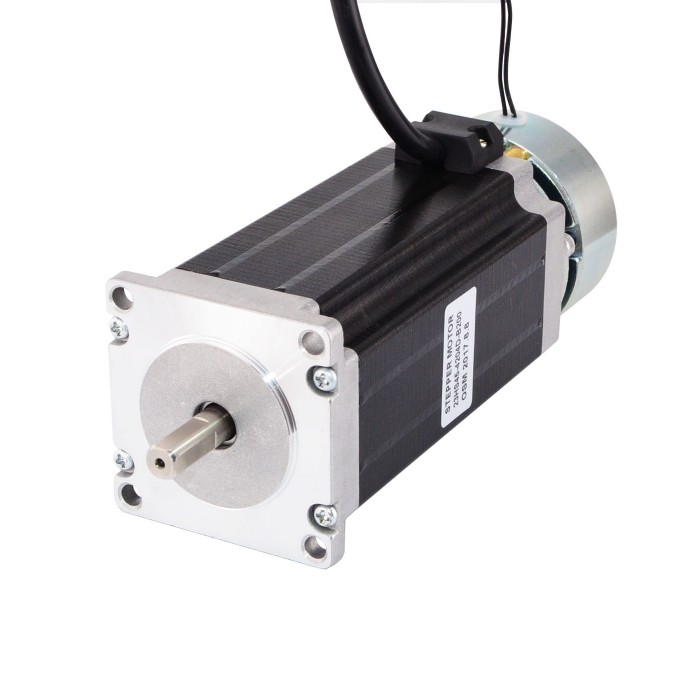

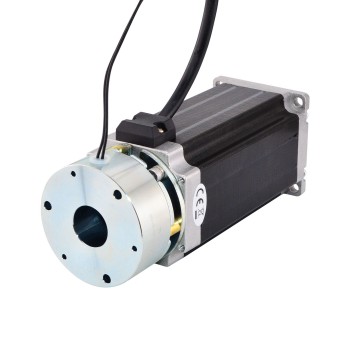

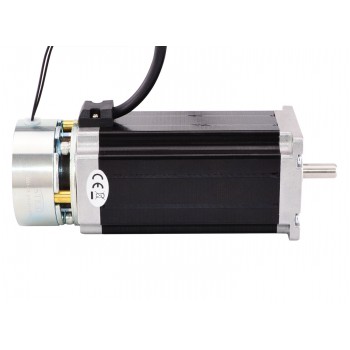

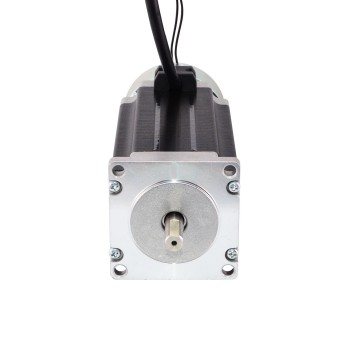

Nema 23 Stepper Motor Bipolar 1.8 Deg 3.0Nm(425oz.in) 4.2A 3.78V with Brake D-Cut Shaft
Special Offer in September 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 28th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$101.72
Motor Specification
- Manufacturer Part Number: 23HS45-4204D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 3Nm(425oz.in)
- Rated Current/phase: 4.2A
- Voltage: 3.78V
- Phase Resistance: 0.9ohms
- Inductance: 3.8mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 113mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.6kg

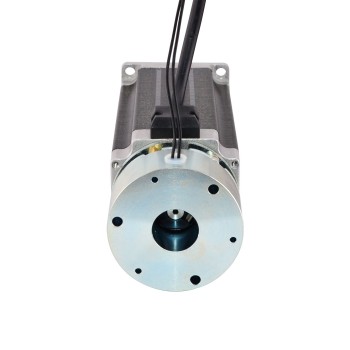

Brake Specification
- Brake Type: Non-excited
- Static Friction Torque: 2Nm(283.2oz.in)
- Moment of Interia : 3.8x10-6 kg.cm2
- Voltage: 24V
- Power: 11.5W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.4kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Resources
- Motor Datasheet: 23HS45-4204D-B200.pdf
- Brake Datasheet: SWB-03.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 113 |
| Holding Torque (Ncm) | 280 |
| Holding Torque (oz.in) | 396.5 |
| Inductance(mH) | 3.8 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.2 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Bipolar/Unipolar | Bipolar |
| Brake Specification | |
| Heat-resistance Class | F |
| Max. Speed(rpm) | 5000 |
| Moment of Interia(kg.cm2) | 3.8x10-6 |
| Power(W) | 11.5 |
| Static Friction Torque(Nm) | 2 |
| Static Friction Torque(oz.in) | 283 |
| Driving Voltage(V) | 24 |
