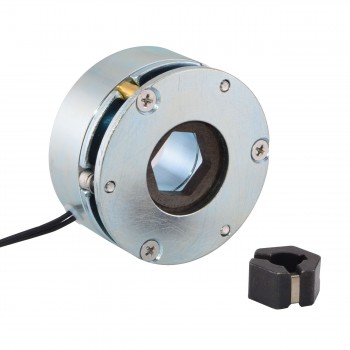

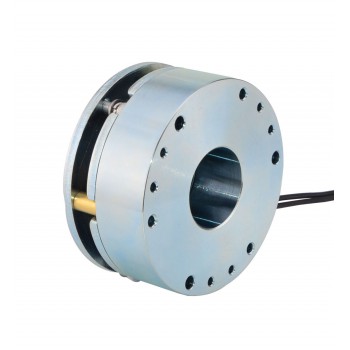

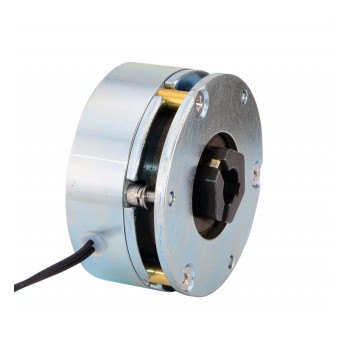

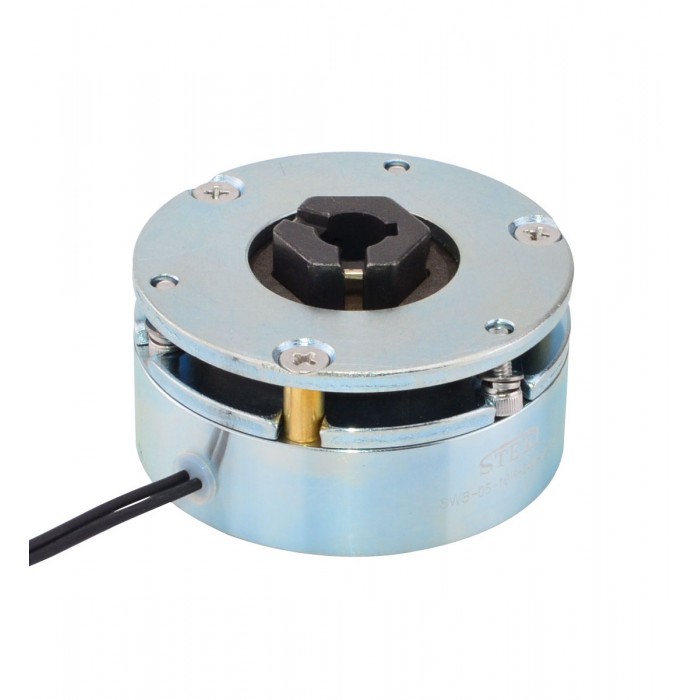

DC Electromagnetic Brake 24V 4.0Nm(566oz.in) 13W for Nema 34 Stepper Motor

DC Electromagnetic Brake 24V 4.0Nm(566oz.in) 13W for Nema 34 Stepper Motor
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$71.55
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $67.97 5%
10 $66.54 7%
50 $64.40 10%
100 $62.25 13%
Add To Cart

This brake is Non-excited brake and operate with 24VDC, it can create Max 4Nm(566.4oz.in) static friction torque. It's suitable for Nema 34 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque : 4Nm(566.4oz.in)
  • Moment of Interia : 23x10-6 kg.cm2
  • Voltage : 24V
  • Power: 13W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.8kg


Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor
Next: Nema 23 Stepper Motor Bipolar 1.8 Deg 1.26Nm(178oz.in) 2.8A 2.5V with Brake D-Cut Shaft
Brake Specification
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 23x10-6
Power(W) 13
Static Friction Torque(Nm) 4
Static Friction Torque(oz.in) 566
Driving Voltage(V) 24
