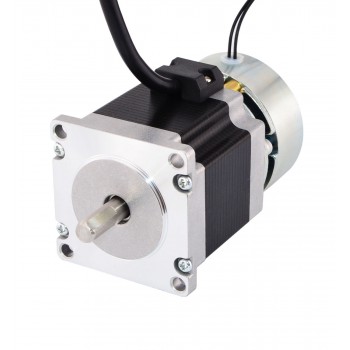

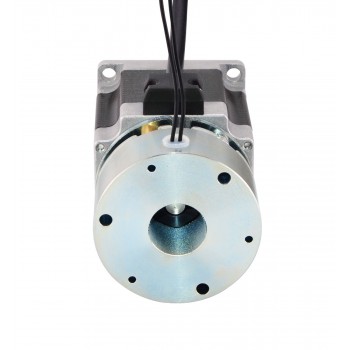

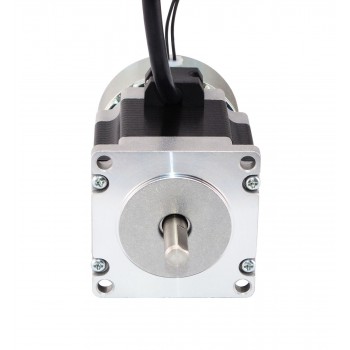

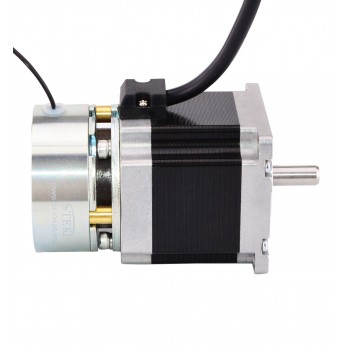

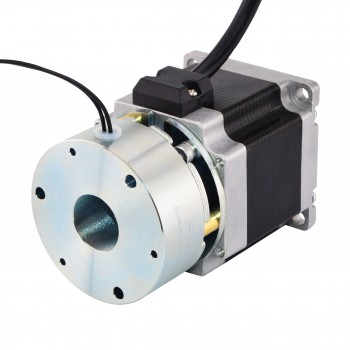

Nema 23 Stepper Motor Bipolar 1.8 Deg 1.26Nm(178oz.in) 2.8A 2.5V with Brake D-Cut Shaft

Nema 23 Stepper Motor Bipolar 1.8 Deg 1.26Nm(178oz.in) 2.8A 2.5V with Brake D-Cut Shaft
NO.:23HS22-2804D-B200
Review: Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$83.03
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $78.88 5%
10 $77.22 7%
50 $74.73 10%
100 $72.24 13%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 23HS22-2804D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 0.7kg

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 2Nm(283.2oz.in)
  • Moment of Interia : 3.8x10-6 kg.cm2
  • Voltage: 24V
  • Power: 11.5W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.4kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: DC Electromagnetic Brake 24V 4.0Nm(566oz.in) 13W for Nema 34 Stepper Motor
Next: Nema 23 Stepper Motor Bipolar 1.8 Deg 1.9Nm(269oz.in) 2.8A 3.2V with Brake D-Cut Shaft
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 56
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Bipolar/Unipolar Bipolar
Brake Specification
Heat-resistance Class F
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 3.8x10-6
Power(W) 11.5
Static Friction Torque(Nm) 2
Static Friction Torque(oz.in) 283
Driving Voltage(V) 24
