1 Axis Closed Loop Stepper Motor CNC Kit 13.0Nm(1841oz.in) High Torque Nema 34 Motor & Driver

NO.:1-CL86-34HS59
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$175.70

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$166.92	5%
5	$163.40	7%
10	$158.13	10%
50	$152.86	13%

Affiliate Link

Description Specification Custom Options Review

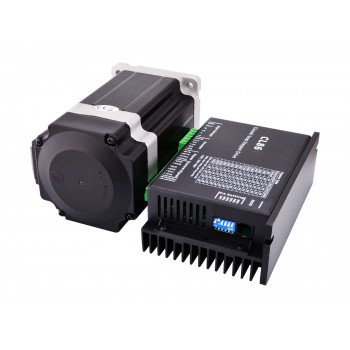

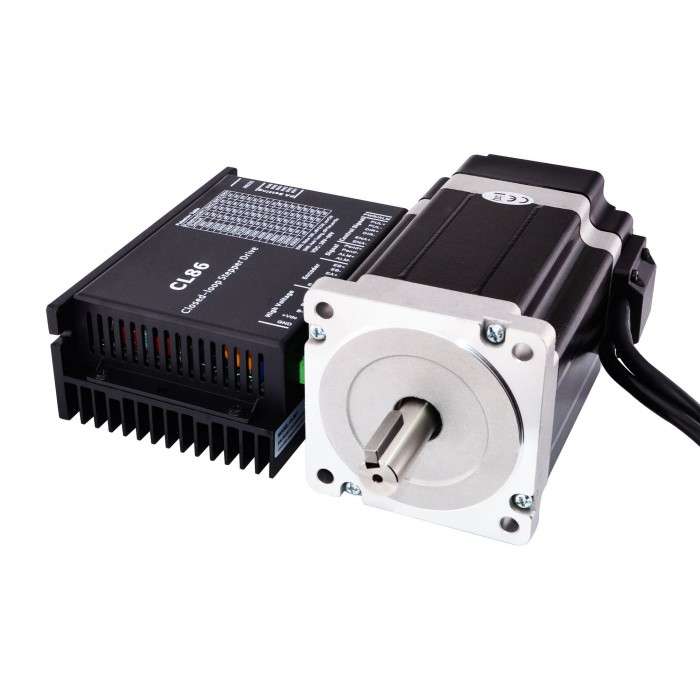

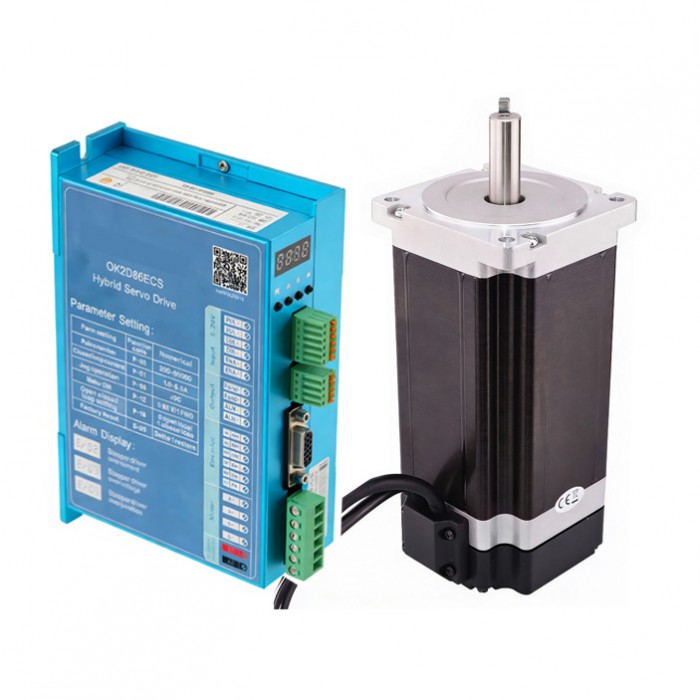

This CNC kit included:

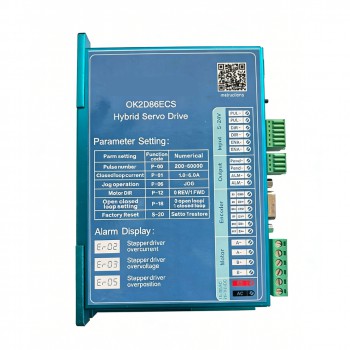

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor

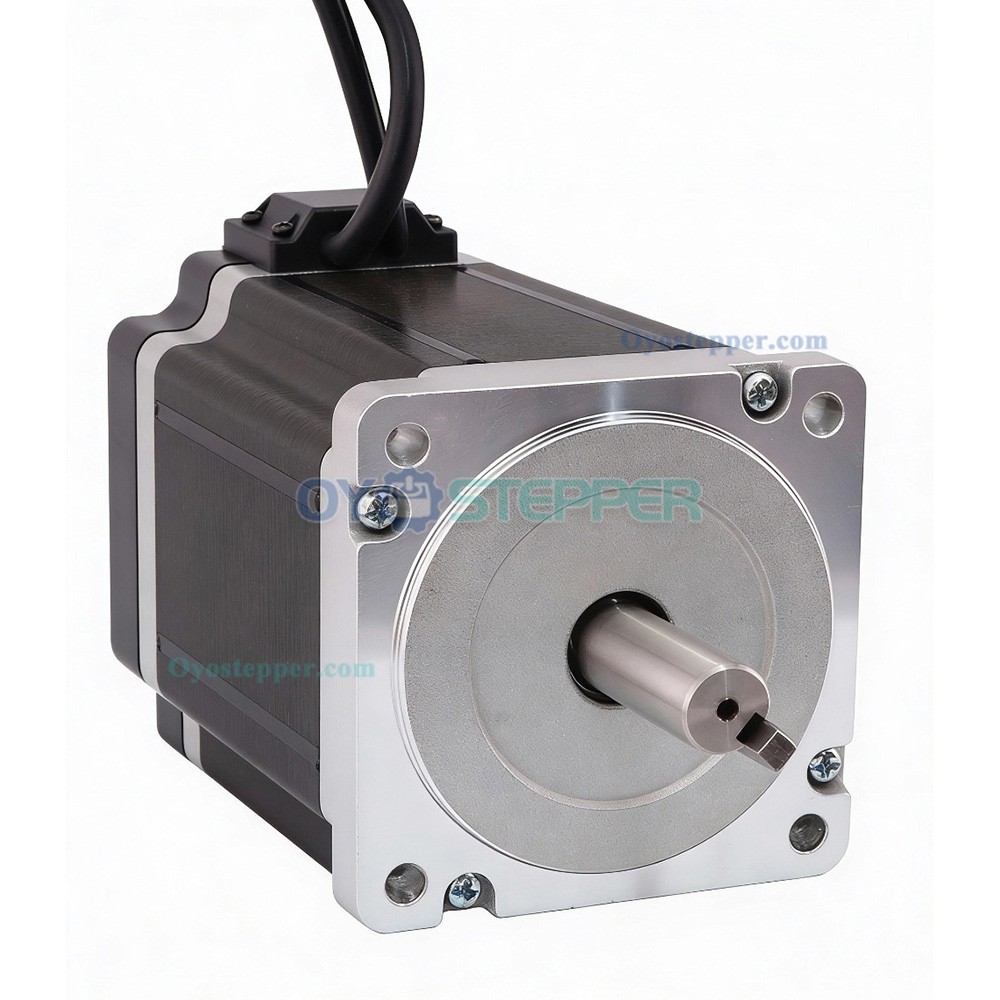

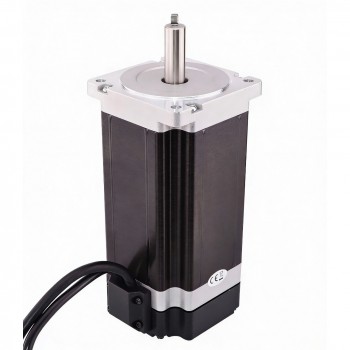

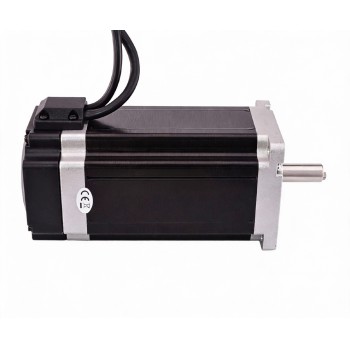

1 x 13.0Nm[1841oz.in] Nema 34 Closed Loop Stepper Motor w/ Encoder 1000CPR

Motor Specification

Manufacturer Part Number: 34HS59-5004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 152mm

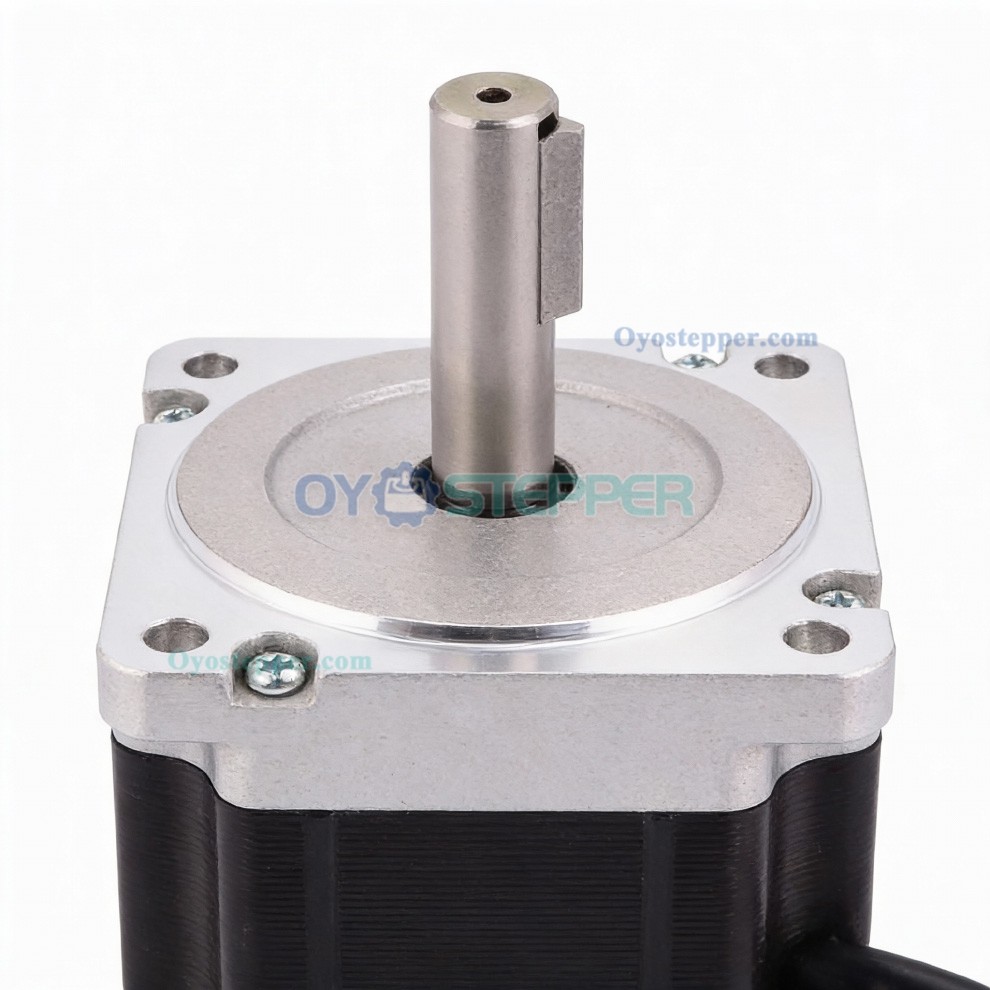

Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Driver Specification

Closed-loop, eliminates loss of synchronization
Broader operating range – higher torque and higher speed
Reduced motor heating and more efficient
Do not need a high torque margin
No Tuning and always stable
Quick response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost

Resources

Motor Datasheet: 34HS59-5004D-E1000.pdf
Driver Manual: CL86.pdf
