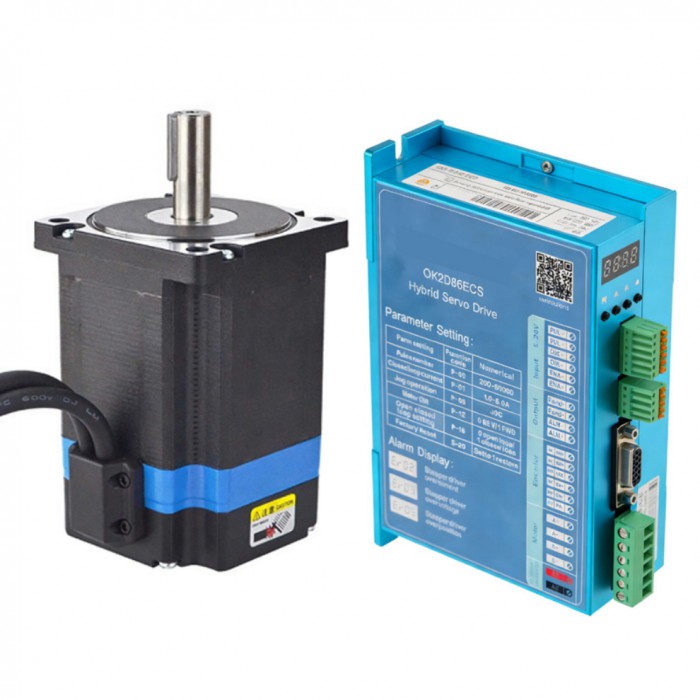

1 Axis Closed loop Stepper Motor Kit 5.8 Nm(821.51 oz.in) 1.8 Deg Nema 34 Closed loop Stepper Motor ＆ Driver

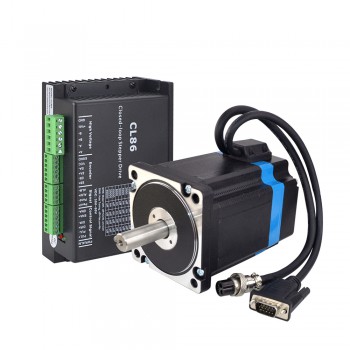

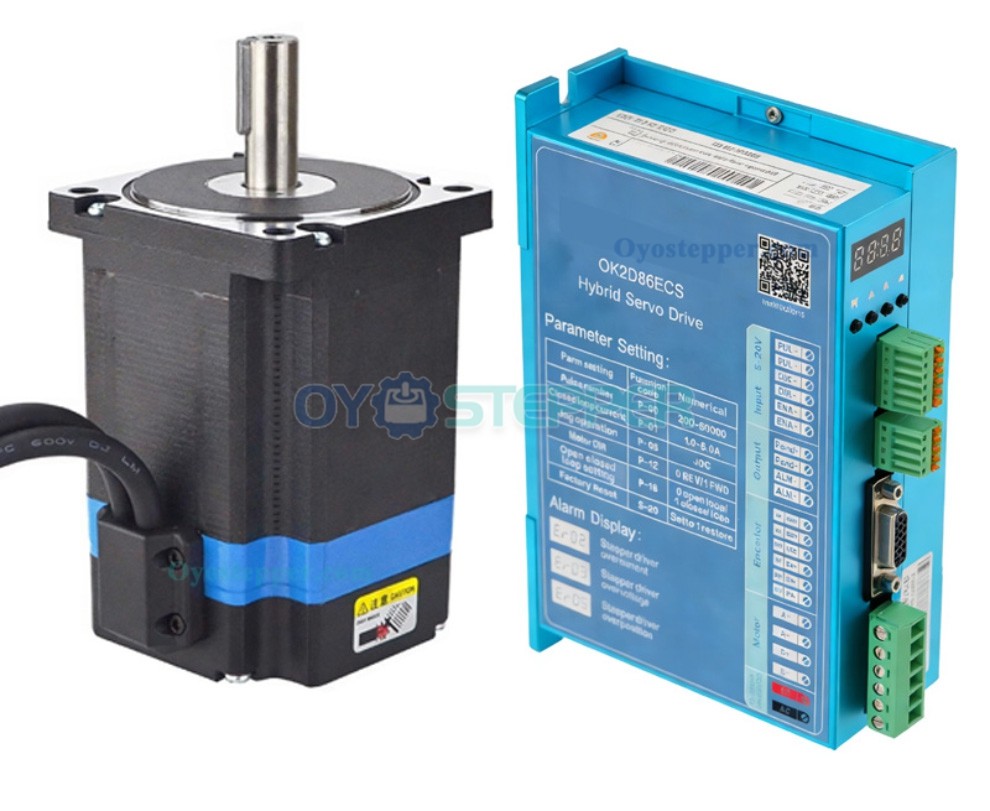

This CNC kit included:

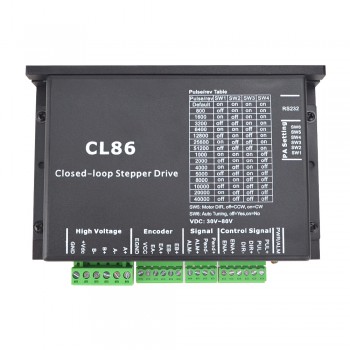

1 x Closed Loop Stepper Driver 0~8 18~80VDC for Nema 34 Stepper Motor

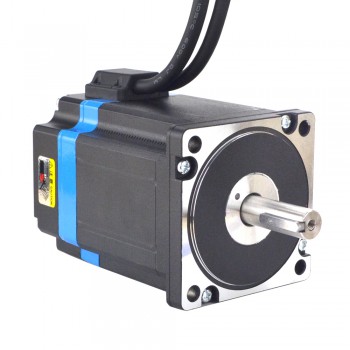

1 x Nema 34 Closed Loop Stepper Motor 5.8Nm/821.512oz.in Encoder 1000CPR

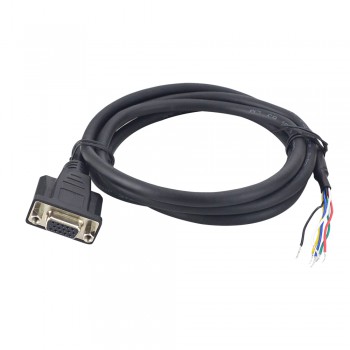

1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

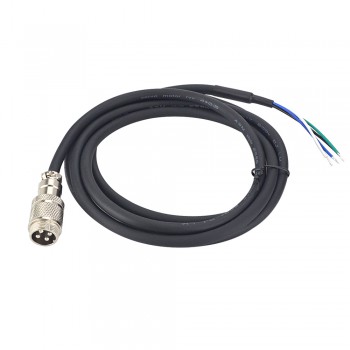

1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors(Just for aviation-plug model motor)

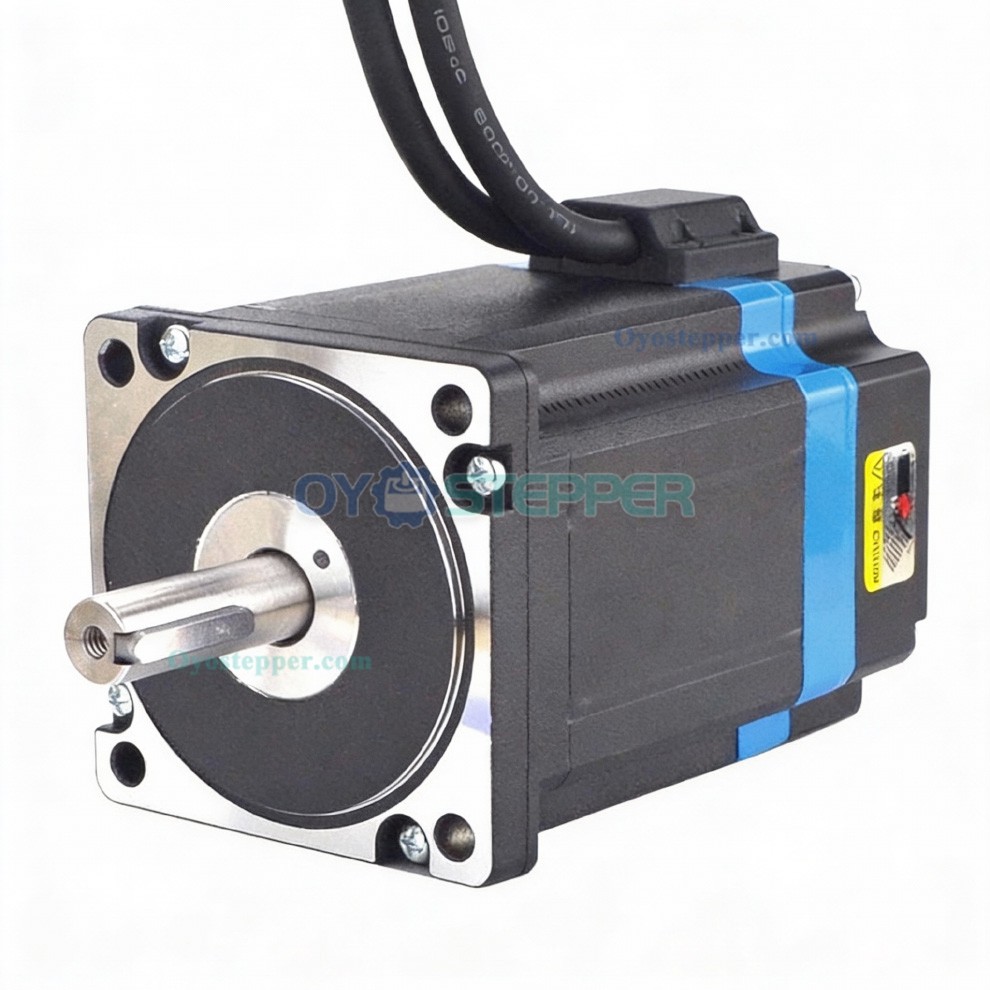

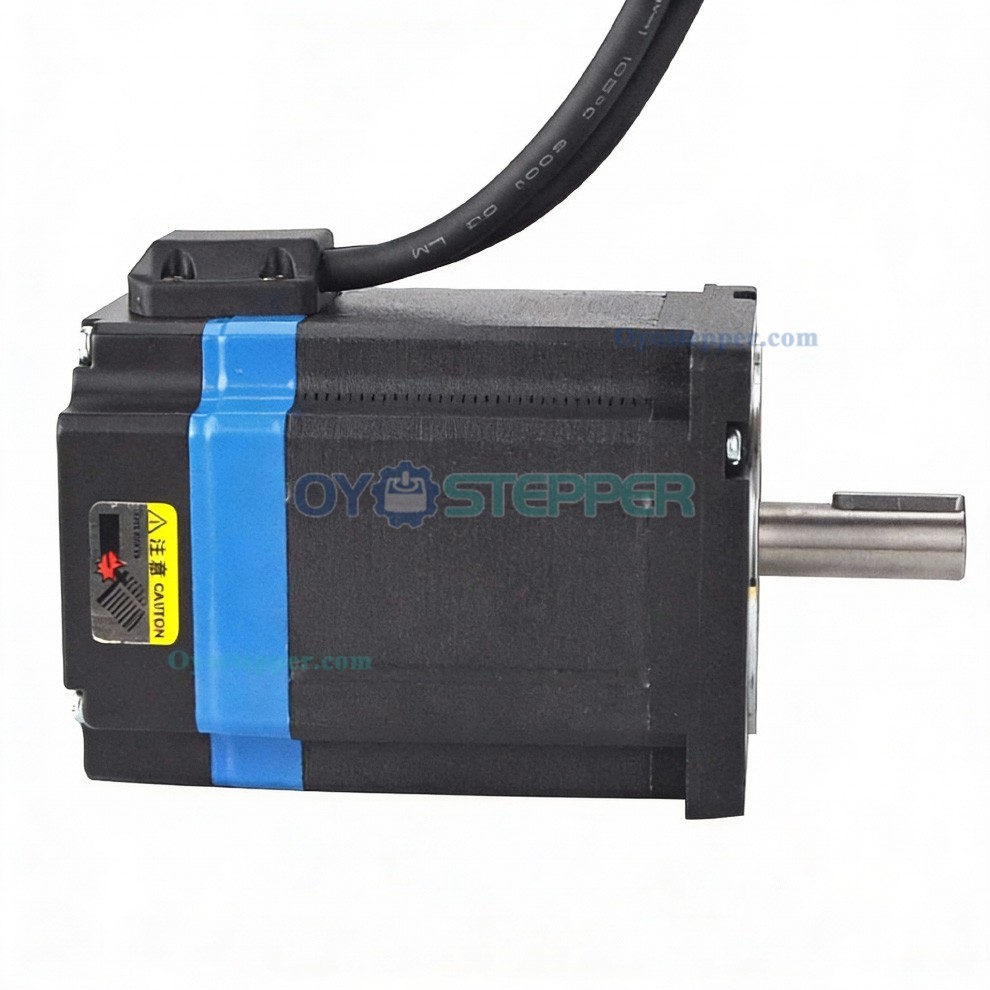

Motor Specification

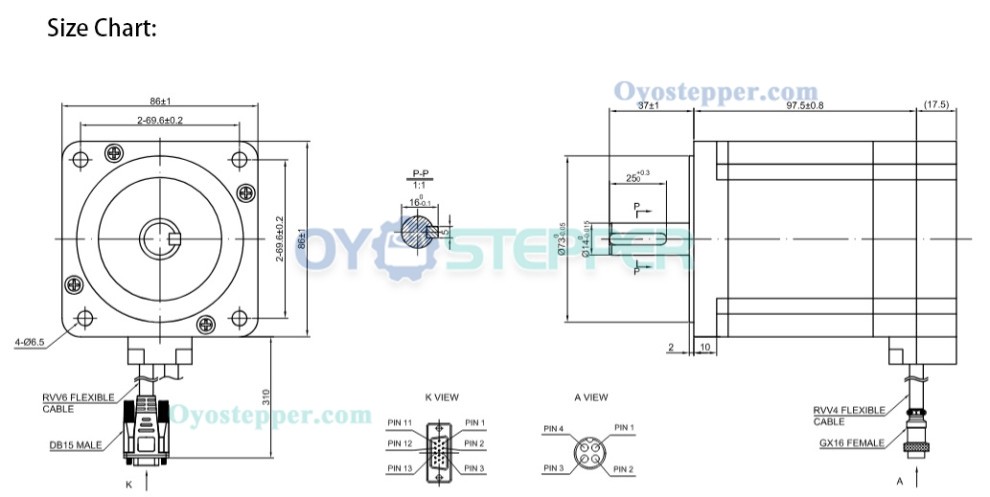

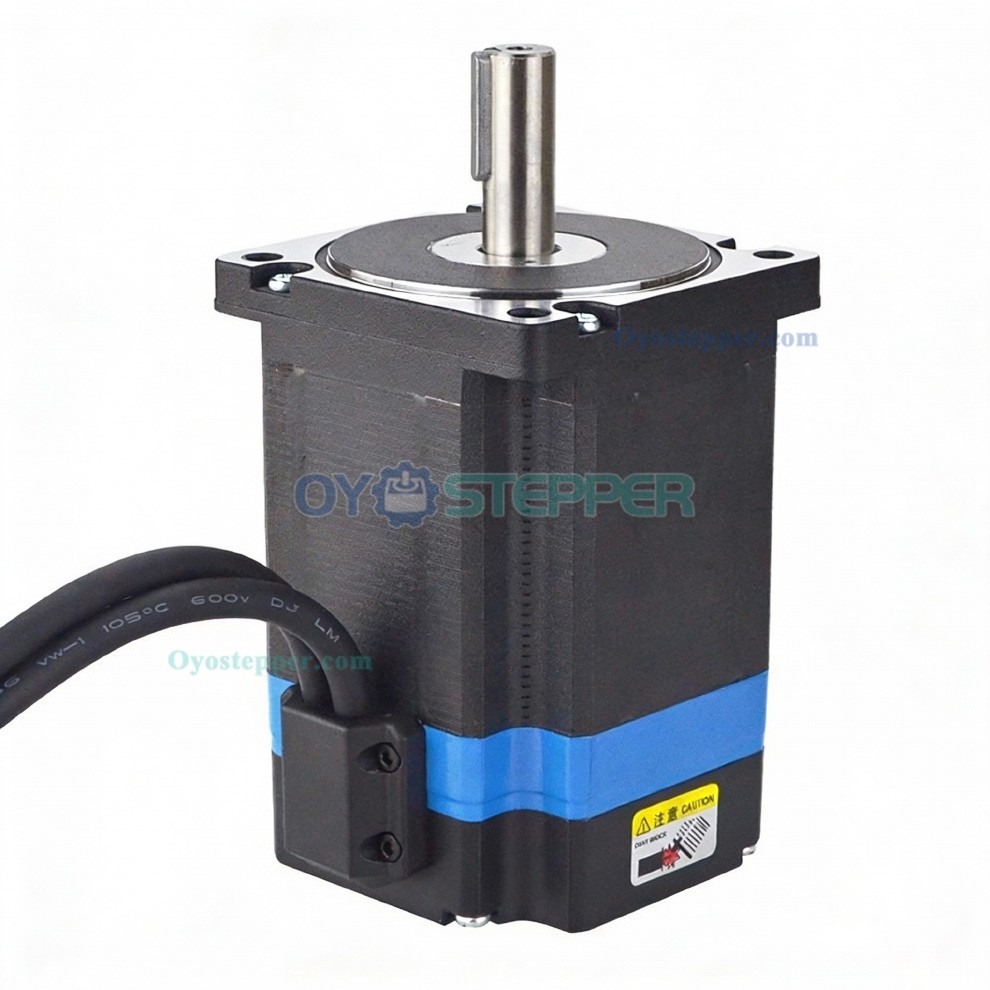

Manufacturer Part Number: 34HS38-6004D-E1000

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Frame Size: 86 x 86 mm

Holding Torque: 5.8 N.m(821.512 oz.in)

Rated Current/phase: 6 A

Shaft Diameter: Φ14 mm

Shaft Length: 40 mm

Key-Way Length: 25 mm

Phase Resistance: 0.32 ohm

Inductance: 2.8 mH ± 20%(1KHz)

Number of Leads: 4

Lead Length: 300 mm

Driving Voltage: 5V

Output current: 55mA

Resolution: 1000ppr

Output Signal: 2 Channels

Bore Diameter: Φ8mm

Output Frequency: ≤1MHz

Running Speed: ≤5000rpm

IP Protection: IP20

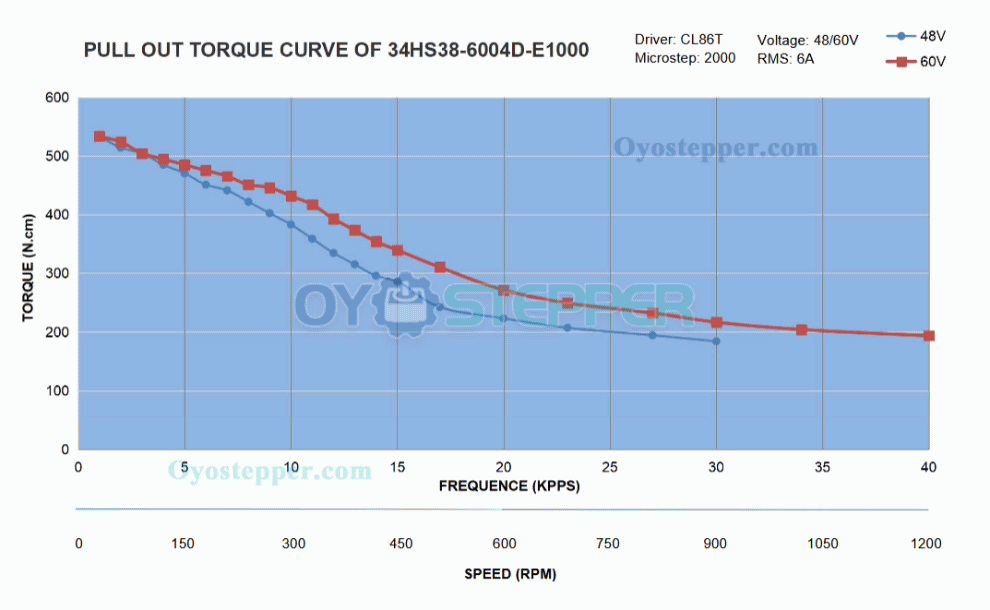

Connection

Closed Loop Stepper Motor Driver 0~8A 18~80VDC for Nema 34 Stepper Motor

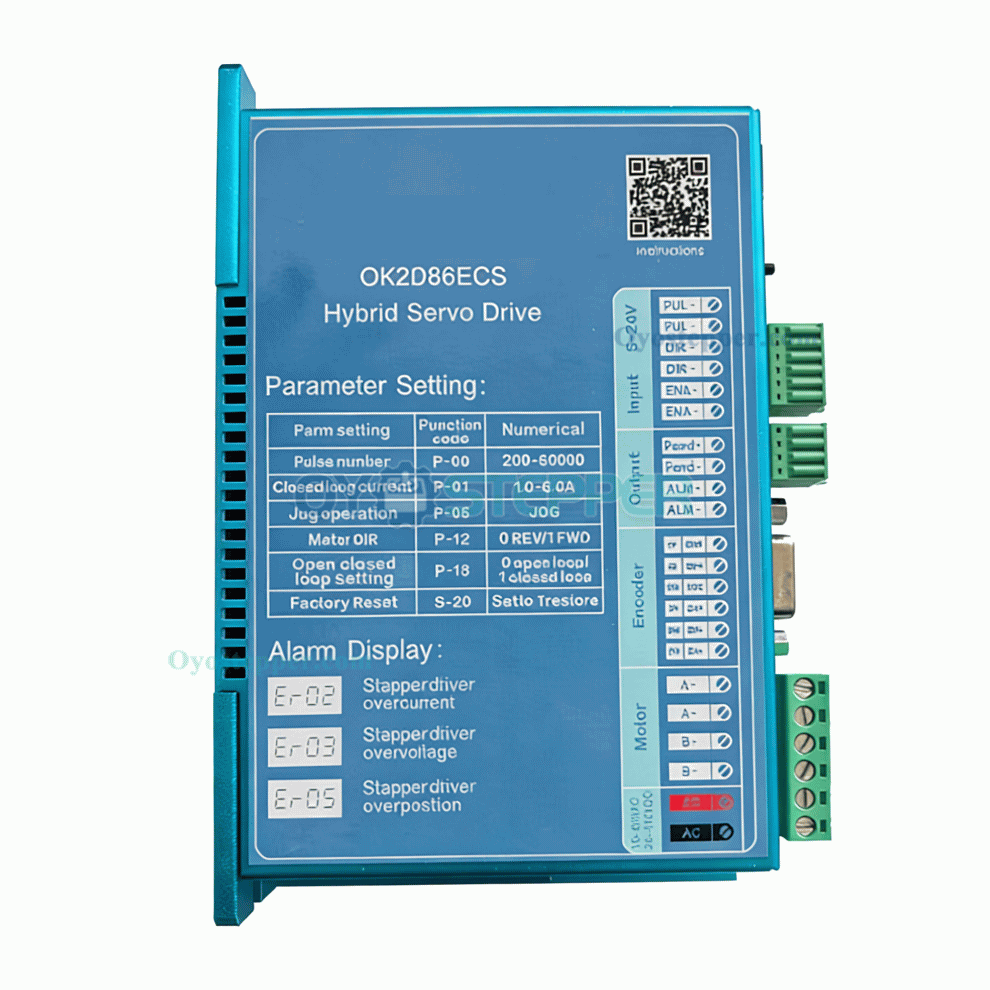

The OK2D86ECS is a 86-frame closed-loop stepper driver. It integrates an ARM-based processor and a vector control algorithm.

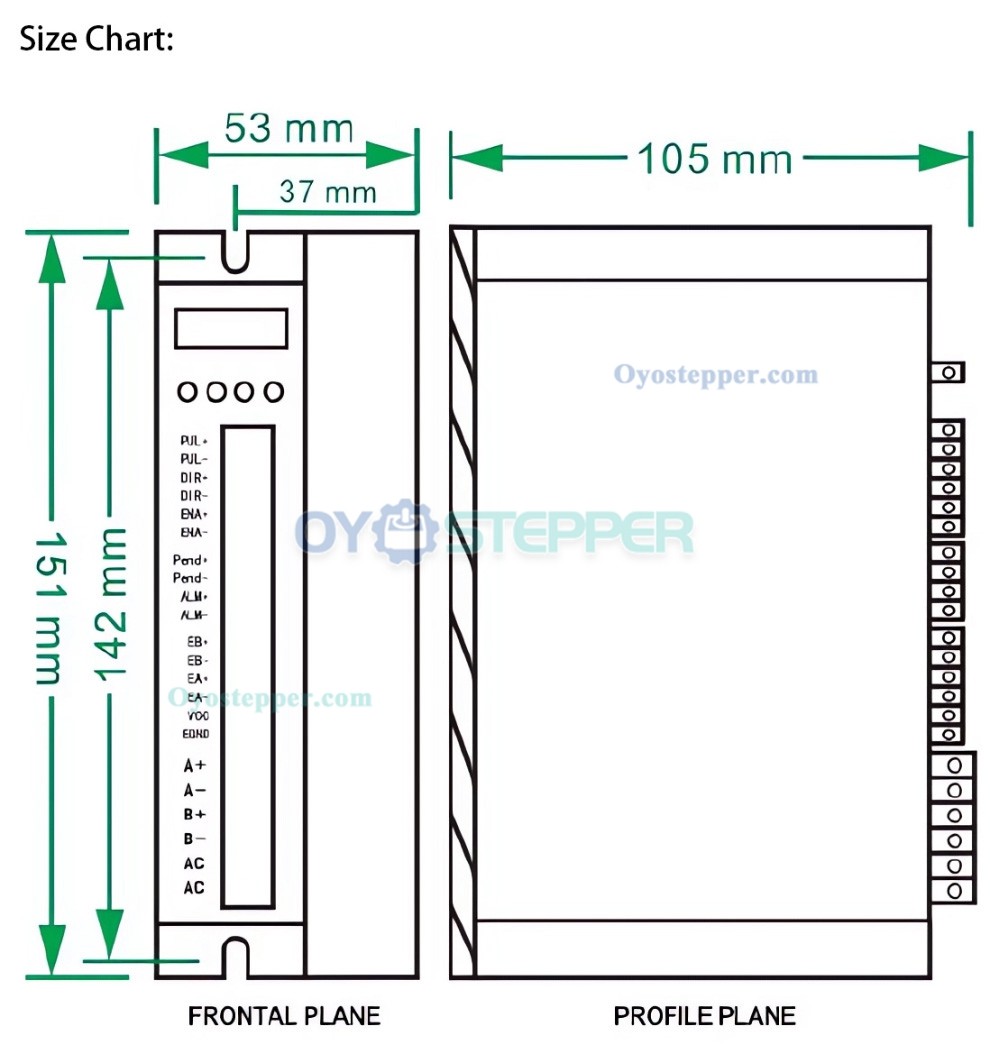

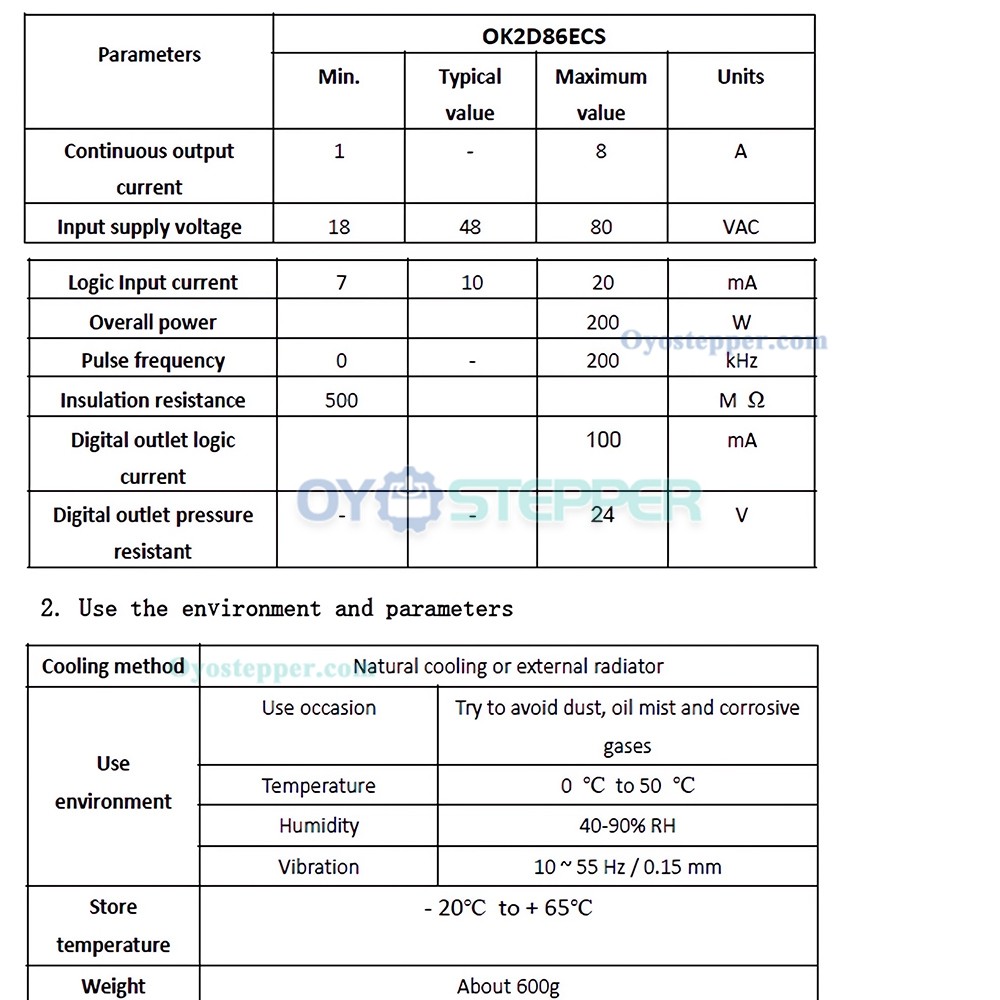

Specifications:
Model:OK2D86ECS
Power: Max 200W
Output Peak Current: 1~8A
Input Voltage: +18~80VDC (Typical 48VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):200~60000 PPR
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:600g

Operating Environment and other Specifications:
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 50℃
Humidity: <80%RH (No-condensing, no frosting)
Operating Temperature: 70℃ MAX
Vibration: 5.9m/s2 Max
Storage Temperature: -20℃ －+80℃;
