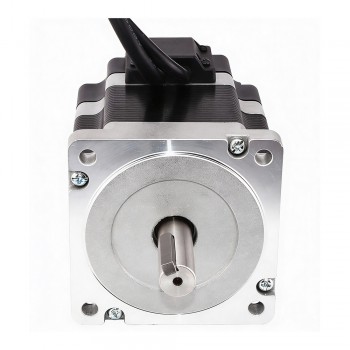

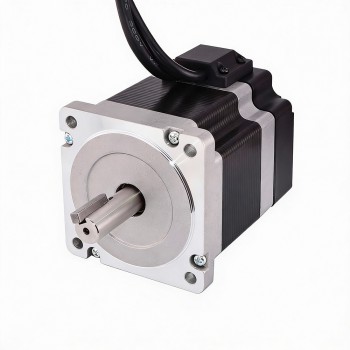

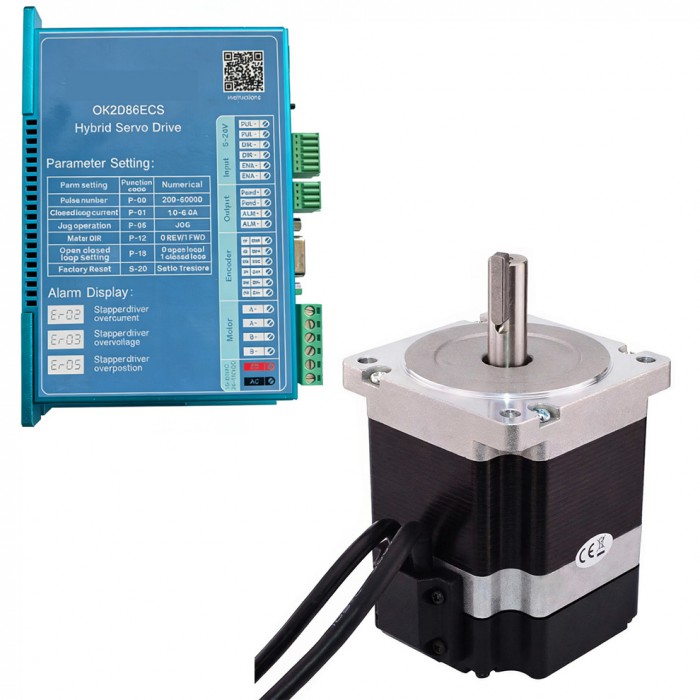

1 Axis Nema 34 Closed Loop Stepper Motor & Driver Kit 4.5Nm (637oz.in) 1.8 deg Keyway Shaft 86 x 86mm

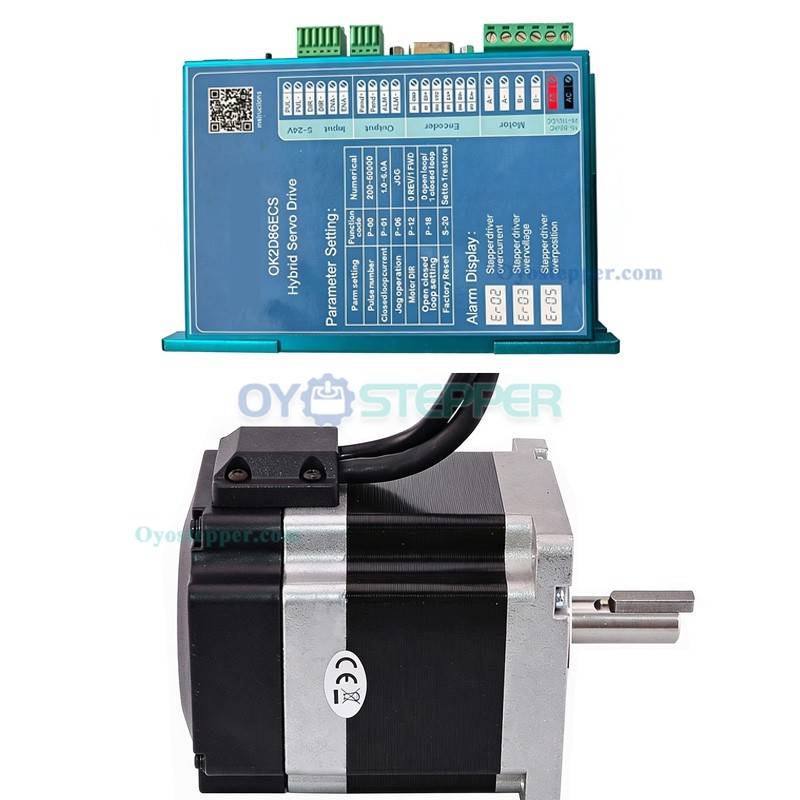

This CNC kit included:

1 x Closed Loop Stepper Driver 0~8A 18~80VDC for Nema 34 Stepper Motor

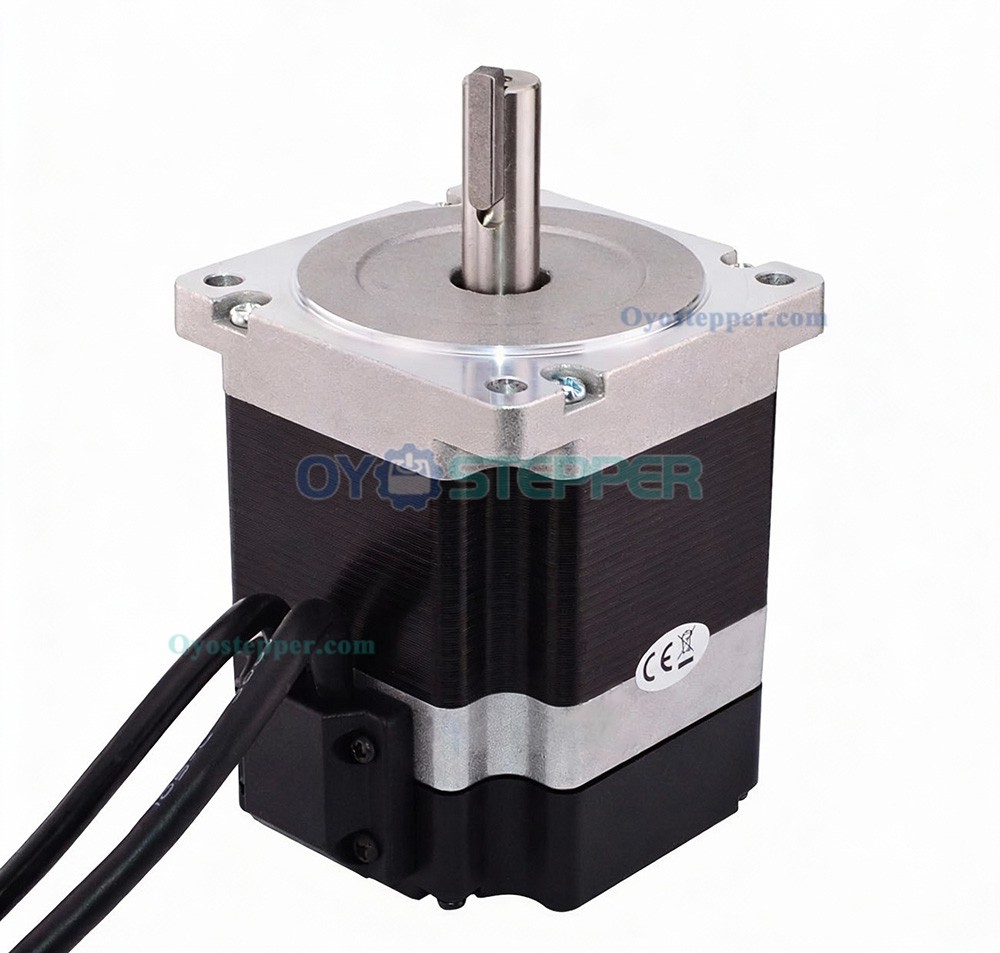

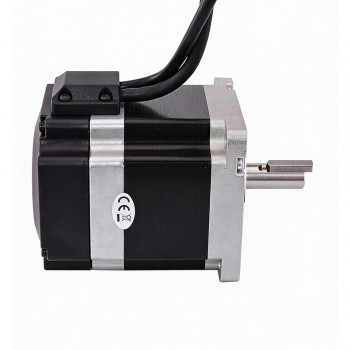

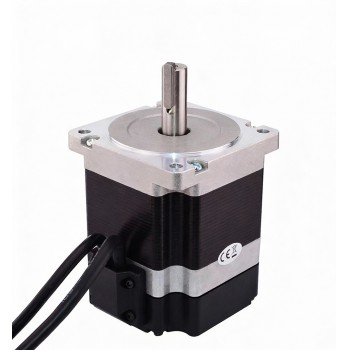

1 x 4.5Nm[637oz.in] Nema 34 Closed Loop Stepper Motor with Encoder 1000CPR

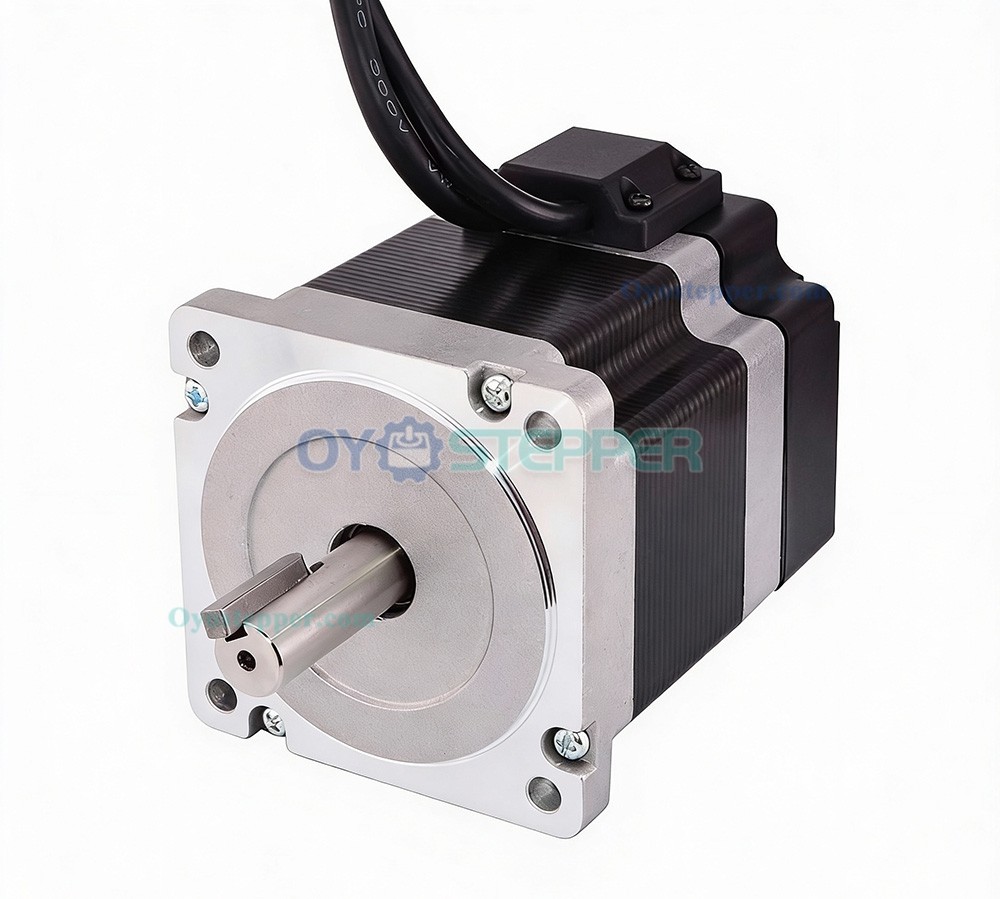

Motor Specification

Manufacturer Part Number: 34HS31-5504D-E1000

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 4.5Nm(637oz.in)

Rated Current/phase: 5.5A

Voltage: 2.2V

Phase Resistance: 0.4ohms

Inductance: 3.5mH ± 20%(1KHz)

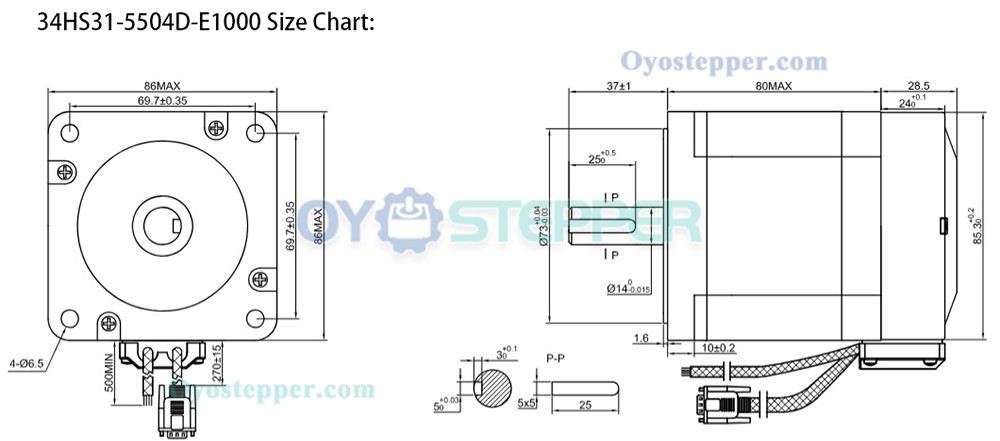

Frame Size: 86 x 86mm

Body Length: 80mm

Shaft Diameter: Φ14mm

Shaft Length: 35mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 500mm

Weight: 1.2kg

Connection

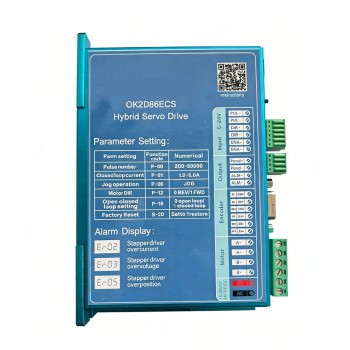

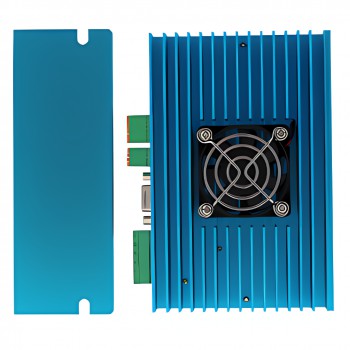

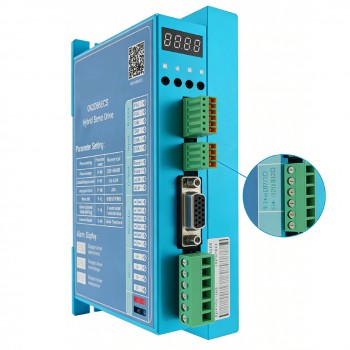

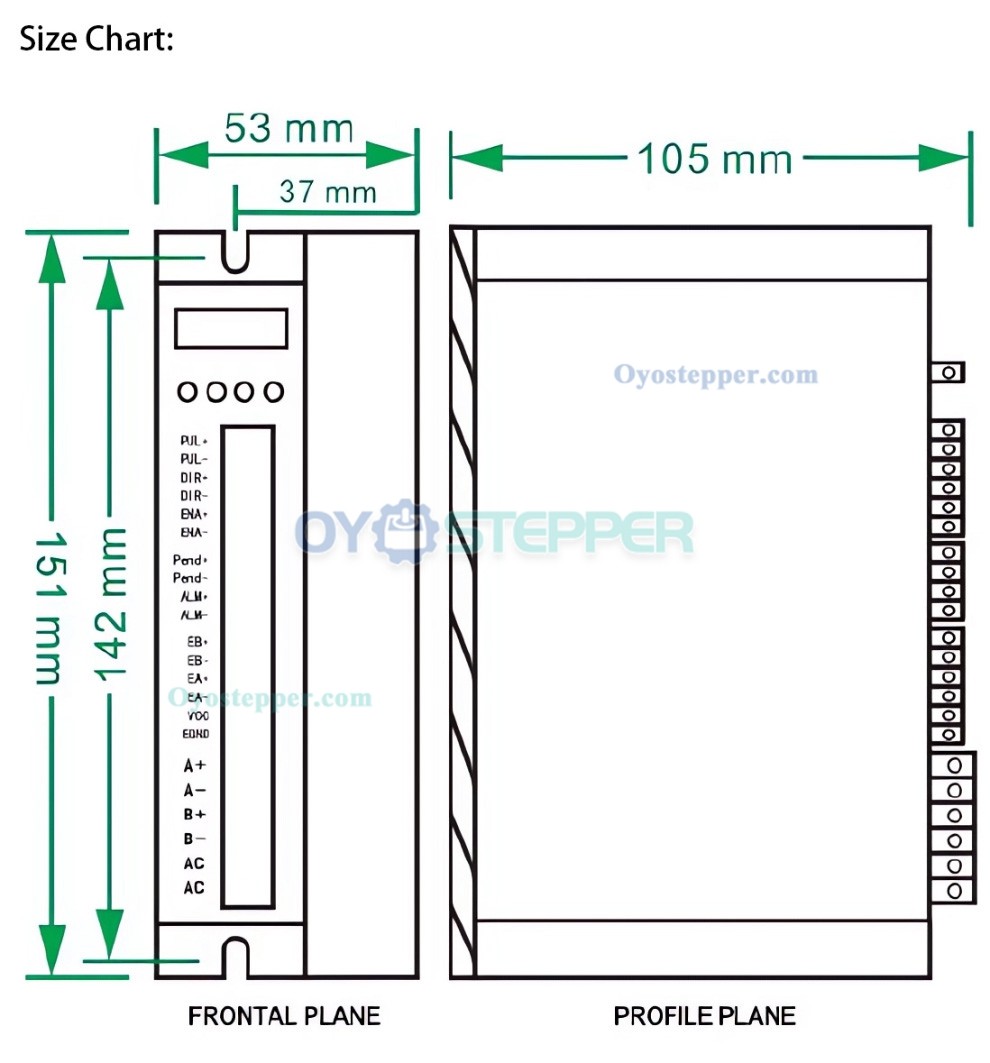

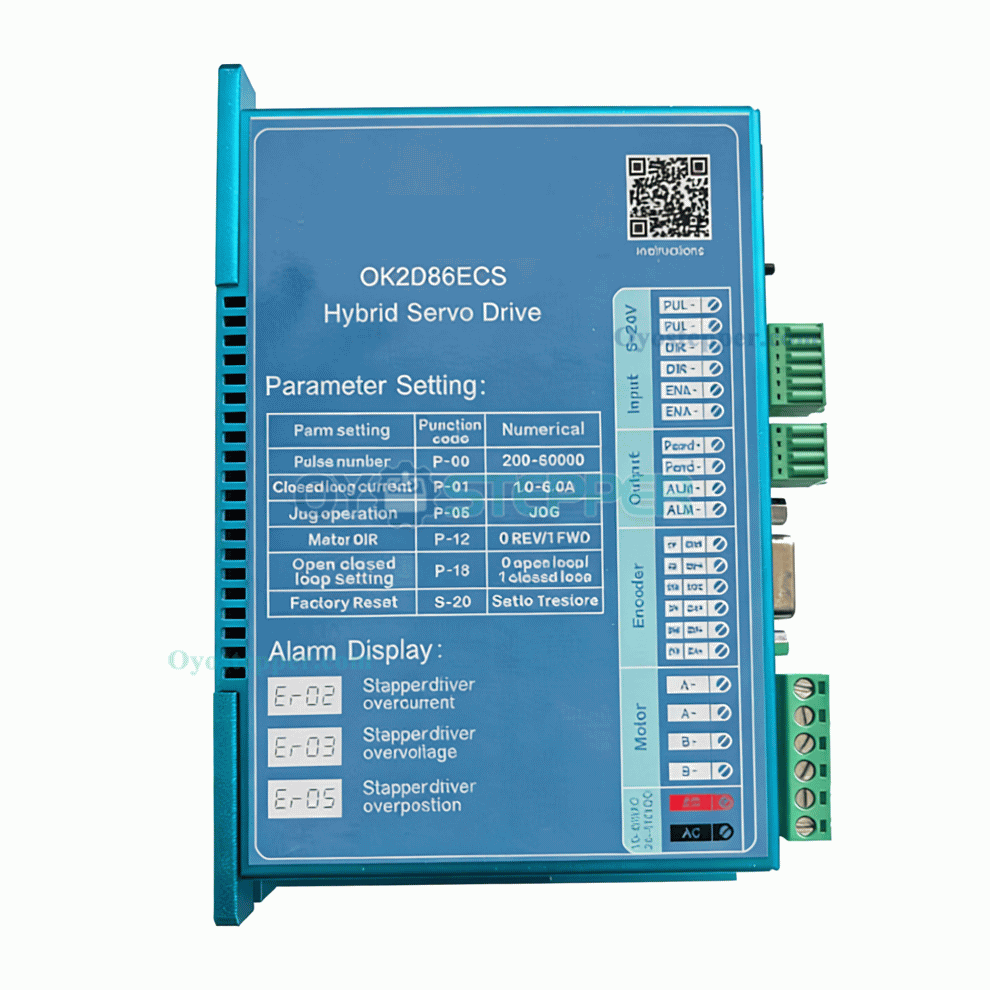

OK2D86ECS Closed Loop Stepper Motor Driver 0~8A 18~80VDC

The OK2D86ECS is a 86-frame closed-loop stepper driver. It integrates an ARM-based processor and a vector control algorithm.

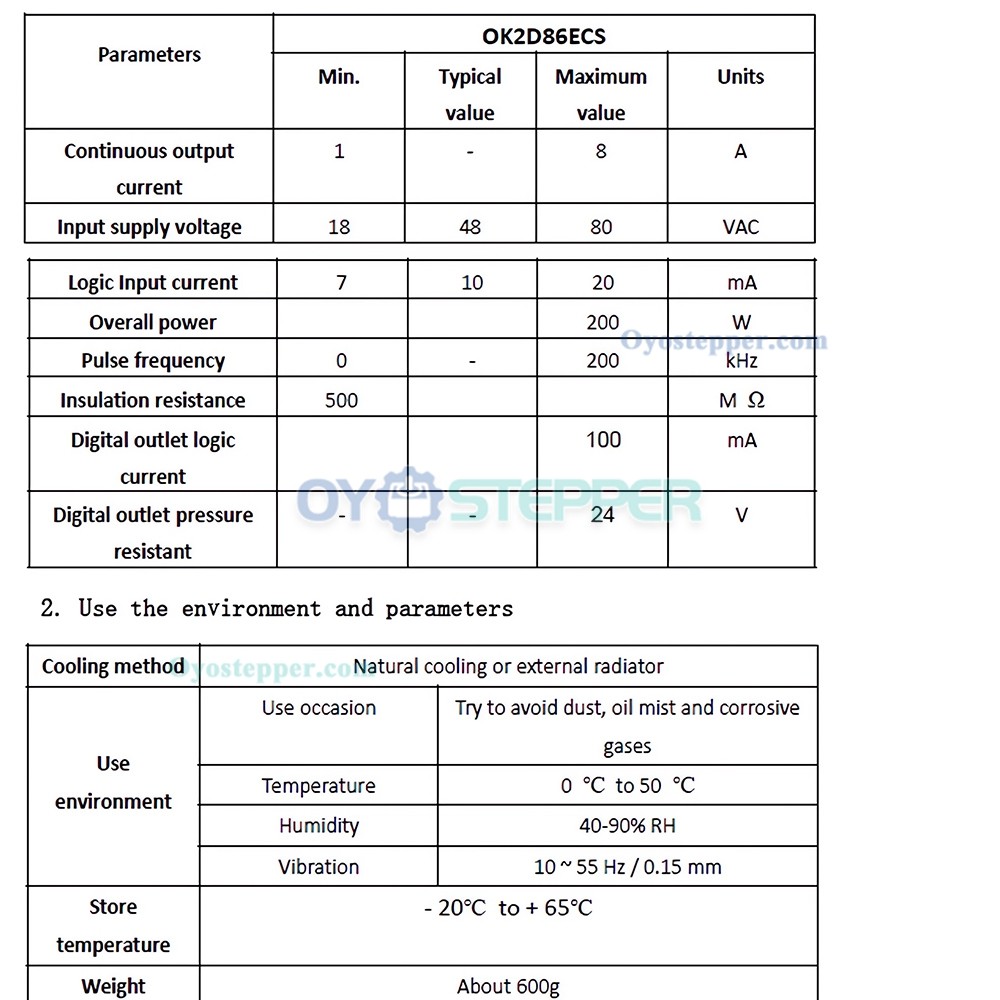

Specifications:
Model:OK2D86ECS
Power: Max 200W
Output Peak Current: 1~8A
Input Voltage: +18~80VDC (Typical 48VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):200~60000 PPR
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:600g

Operating Environment and other Specifications:
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 50℃
Humidity: <80%RH (No-condensing, no frosting)
Operating Temperature: 70℃ MAX
Vibration: 5.9m/s2 Max
Storage Temperature: -20℃ －+80℃;
