1 Axis Stepper Motor CNC Kit 4.0Nm(566oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver

1 Axis Stepper Motor CNC Kit 4.0Nm(566oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver
NO.:1-OK2D656T-24HS39
Post a review
Our Price:$64.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $60.96 5%
10 $59.68 7%
50 $57.75 10%
100 $55.83 13%
Add To Cart

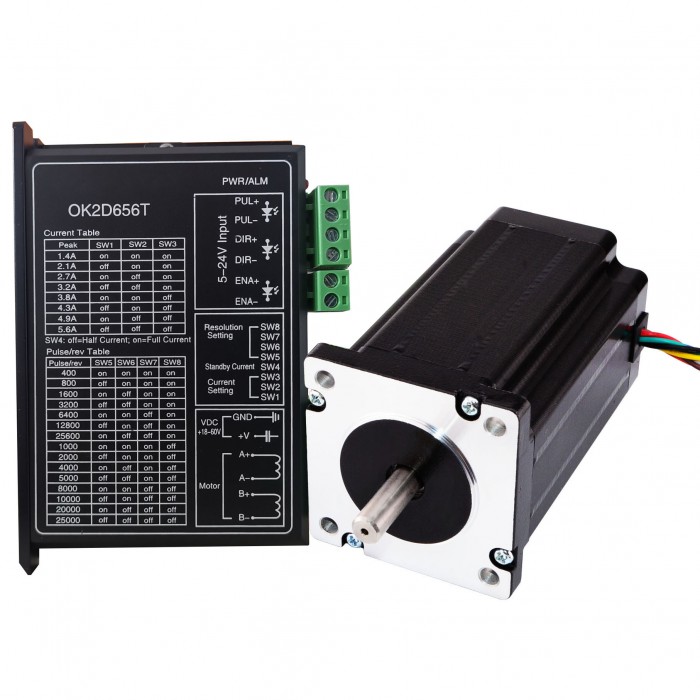

This CNC kit included:

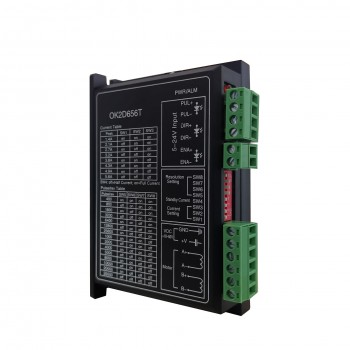

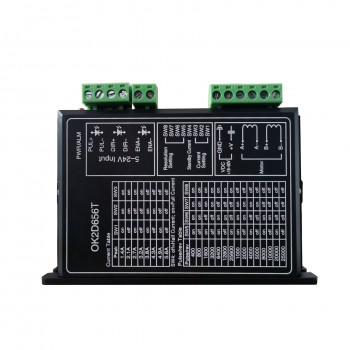

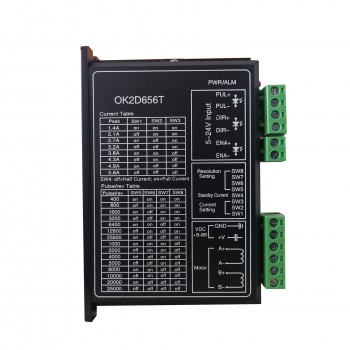

  • 1 xOK2D656T Two-phase Stepper Driver for NEMA23 NEMA24 NEMA34 Stepper Motor

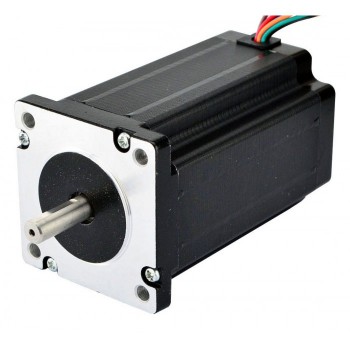

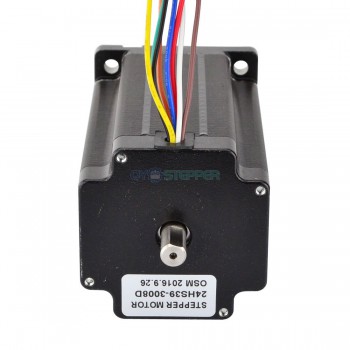

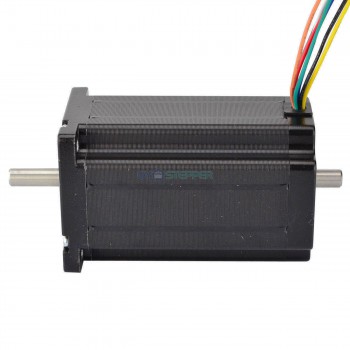

  • 1 x Dual Shaft Nema 24 Bipolar Stepper Motor 4Nm (566 oz.in) 60x60x100mm 8 Wires

Motor Specification

  • Manufacturer Part Number: 24HS39-3008D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque(Bipolar): 4Nm(566oz.in)
  • Holding Torque(Unipolar): 2.8Nm(397oz.in)
  • Rated Current/phase(Bipolar Parallel): 4.24A
  • Rated Current/phase(Bipolar Serial): 2.12A
  • Rated Current/phase(Unipolar): 3A
  • Phase Resistance(Bipolar Parallel): 0.7ohms
  • Phase Resistance(Bipolar Serial): 2.8ohms
  • Phase Resistance(Unipolar): 1.4ohms
  • Inductance(Bipolar Parallel): 3mH ± 20%(1KHz)
  • Inductance(Bipolar Serial): 12mH ± 20%(1KHz)
  • Inductance(Unipolar): 3mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

Features:
Built in high subdivision, low vibration, low heat generation, and stable low-speed operation;
Current vector control, high current efficiency;
Built in acceleration and deceleration control to improve smoothness of start stop;
Single and double pulse control modes can be selected;
Memory of motor operating position;
Input signal differential optocoupler isolation, compatible with 5V~24V;
Overcurrent protection, overvoltage protection;
Automatic detection, flexible selection of pulse edge counting method;
Green light indicates operation, while red light indicates protection or offline;
The SW1-3 current dial settings are shown in the table below.


Electrical Specifications:
Output Peak Current: 1.4~5.6A
Input Voltage: +18~60VDC
Pulse Input Frequency: 0~200kHz
Protection:
a.Peak overcurrent action value 6A ±10%
b.Overvoltage voltage action value 50VC
Defaul communication rate:57.6Kbps
Overall dimensions:19.5x60x96mm
Weight: Approx.150g


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH-90%RH
Operating Temperature: 0℃ - 70℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ - 80℃;
