1 Axis Stepper Motor CNC Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver

1 Axis Stepper Motor CNC Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
NO.:1-DM542T-23HS45
Post a review
Our Price:$54.77
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $52.03 5%
10 $50.94 7%
50 $49.29 10%
100 $47.65 13%
Add To Cart

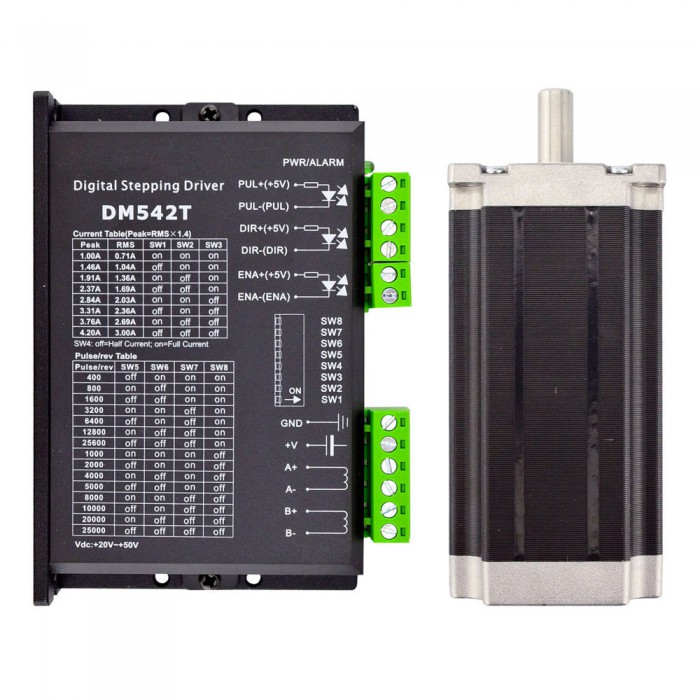

This CNC kit included:

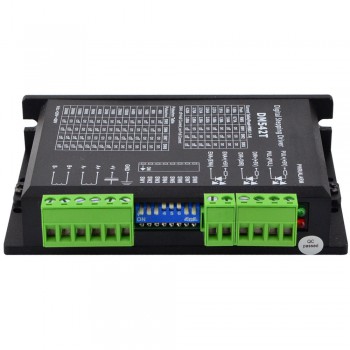

  • 1 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor

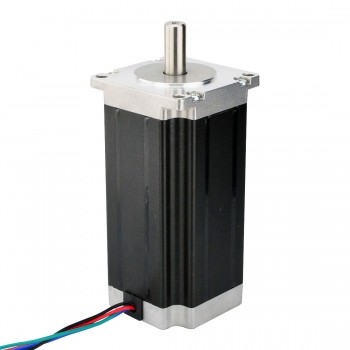

  • 1 x Nema 23 Bipolar 3Nm (425oz.in) 3.5A 57x57x114mm 4 Wires CNC Stepper Motor

Motor Specification

  • Manufacturer Part Number: 23HS45-3504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3Nm(425oz.in)
  • Rated Current/phase: 3.5A
  • Voltage: 4.2V
  • Phase Resistance: 1.2ohms
  • Inductance: 5mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

  • Input voltage 20-50VDC
  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
  • Soft-start with no "jump" when powered on
  • 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
  • Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR mode
  • Over-voltage and over-current protections

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Motor CNC Kit 1.9Nm(269oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
Next: 1 Axis Stepper Motor CNC Kit 3.1Nm(439oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 113
Holding Torque (Ncm) 300
Holding Torque (oz.in) 424.8
Inductance(mH) 5
Lead Length(mm) 400
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 1.2
Rated Current (A) 3.5
Shaft Diameter(mm) 10
Shaft Length(mm) 24
Stepper Driver Specification
Driving Voltage(V) 20 - 50
Output Current(A) 1 - 4.2
Microstep(Steps/rev.) 400 - 25600
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
Physical Specification
Weight(g) 2250
