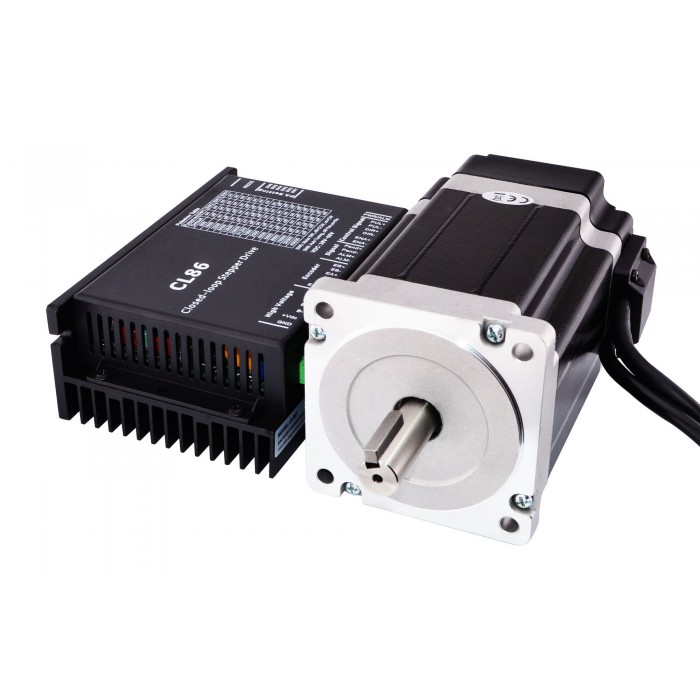

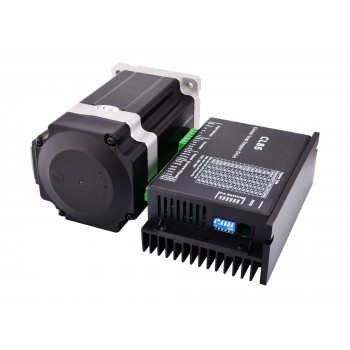

1 Axis Closed Loop Stepper Motor CNC Kit 8.5Ncm(1204oz.in) High Torque Nema 34 Motor & Driver

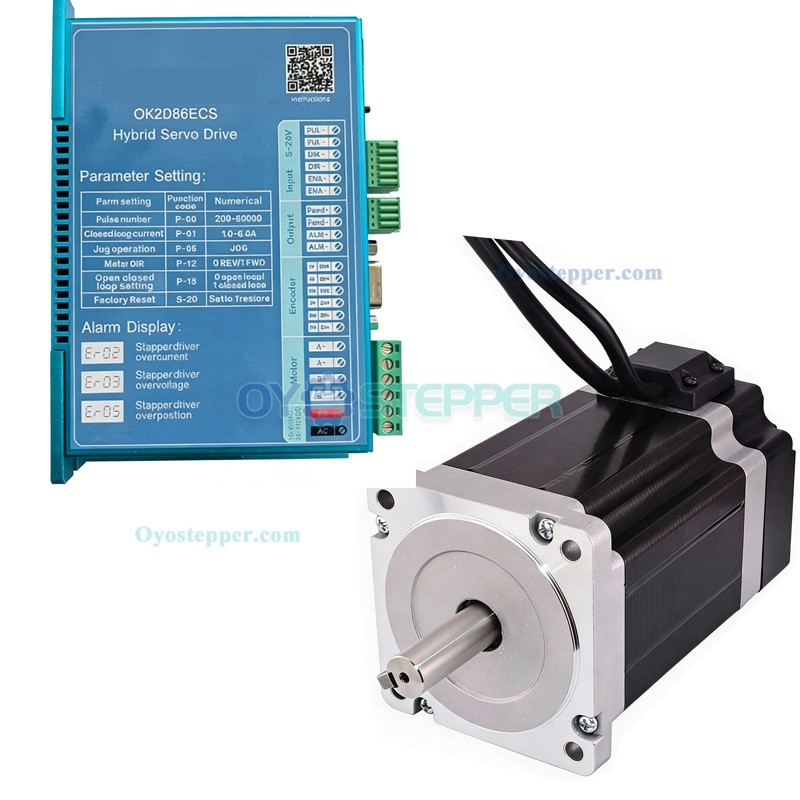

This CNC kit included:

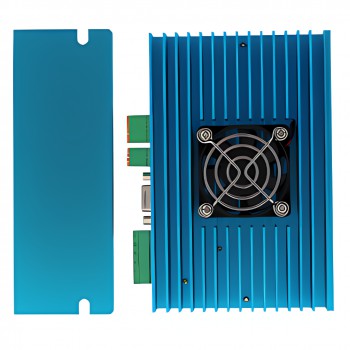

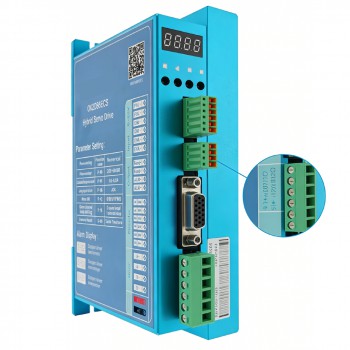

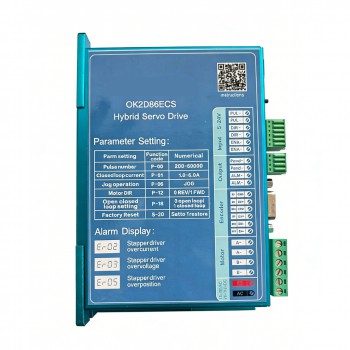

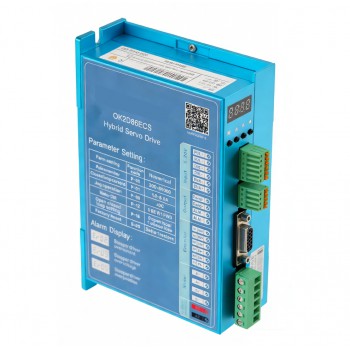

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor

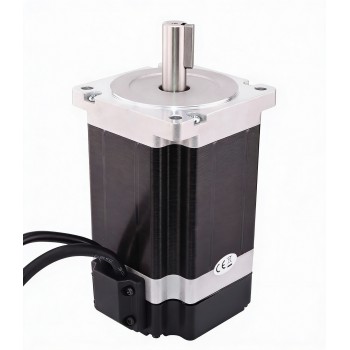

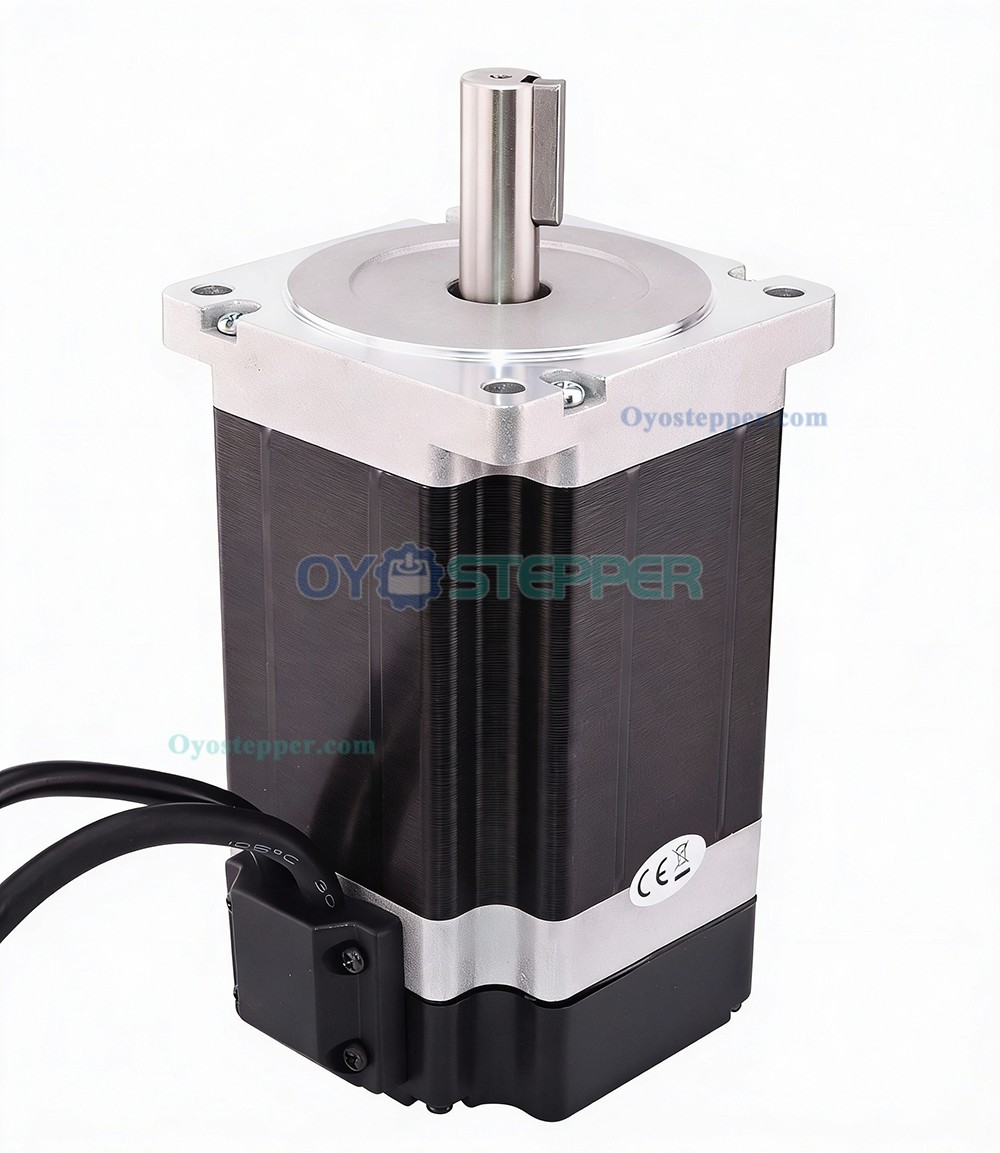

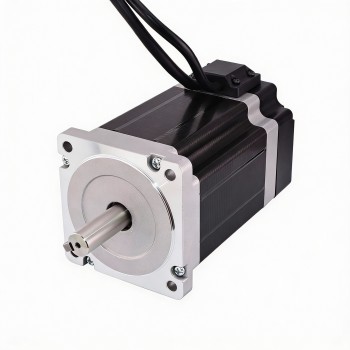

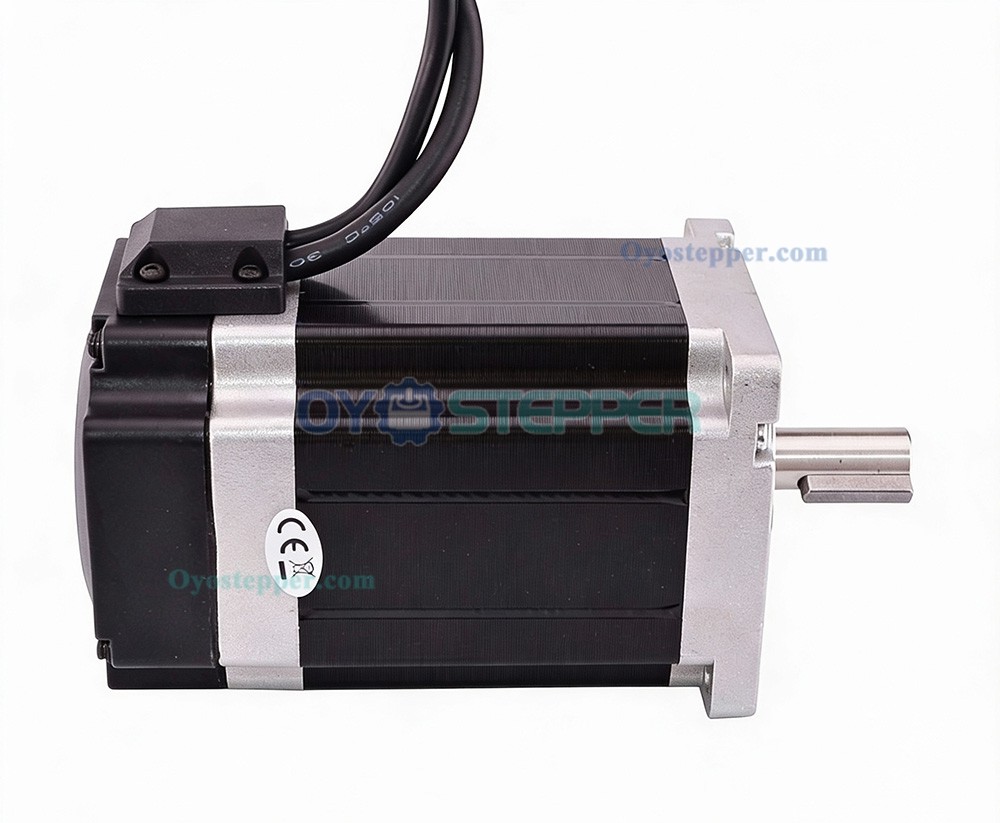

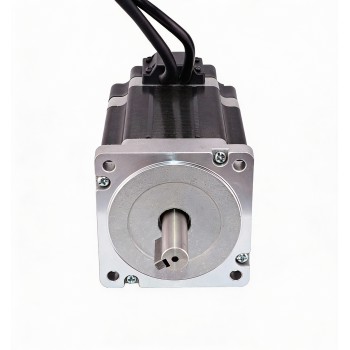

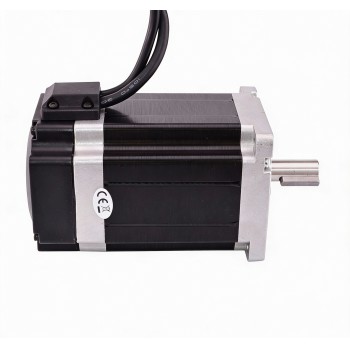

1 x 8.5Nm[1204oz.in] Nema 34 Closed Loop Stepper Motor w/ Encoder 1000CPR;

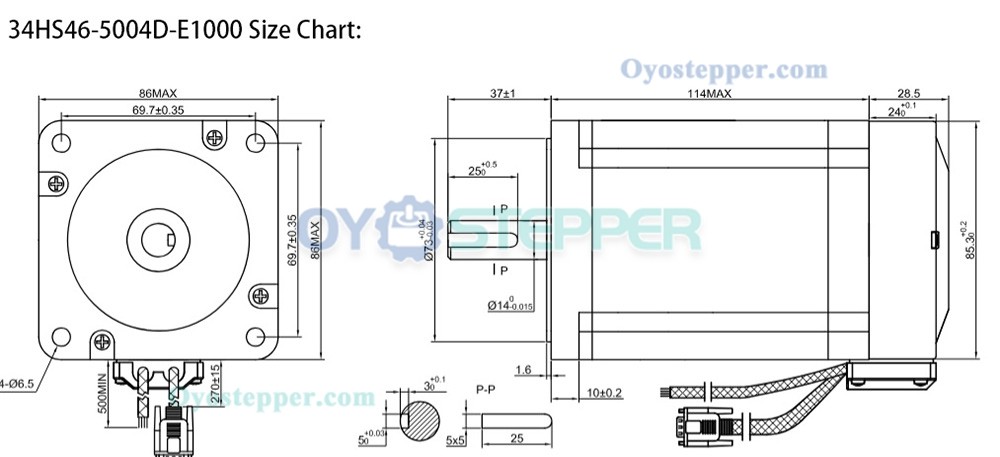

Motor Specification
Manufacturer Part Number: 34HS46-5004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Driver Specification
Closed-loop, eliminates loss of synchronization
Broader operating range – higher torque and higher speed
Reduced motor heating and more efficient
Do not need a high torque margin
No Tuning and always stable
Quick response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost
Resources
Motor Datasheet: 34HS46-5004D-E1000.pdf
Driver Manual: CL86T.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 / 1.8 |
| Body Length(mm) | 114 |
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.7 |
| Inductance(mH) | 11 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Electrical Specification | |
| Output Frequency(MHz) | ≤1 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 24 - 80 |
| Output Current(A) | 0 - 8.2 |
| Microstep(Steps/rev.) | 400 - 51200 |
| Max. Pulse Input(kHZ) | 200 |
| Pulse Width(μs) | 2.5 |
| Encoder Specification | |
| Rated Voltage(V) | 5 |
| Output Current(mA) | 55 |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
| Running Speed(rpm) | ≤5000 |
| IP Protection | IP20 |
| Physical Specification | |
| Weight(g) | 5000 |
