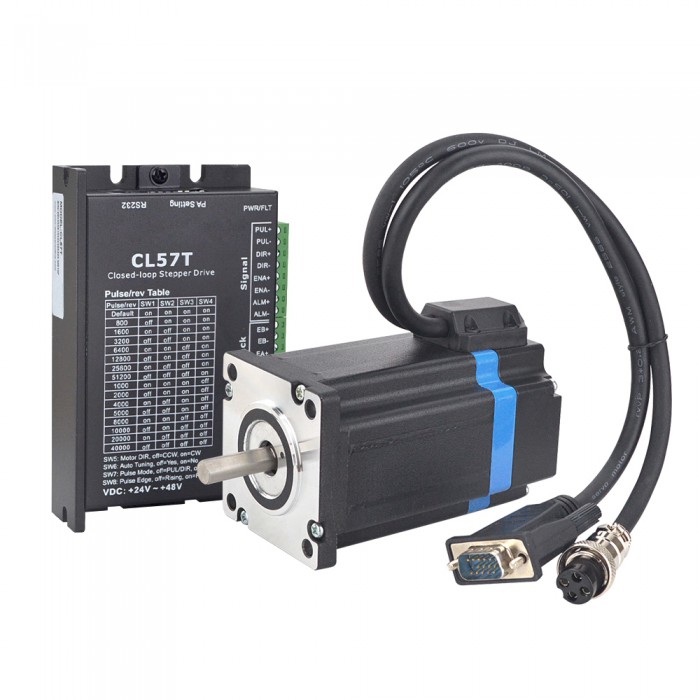

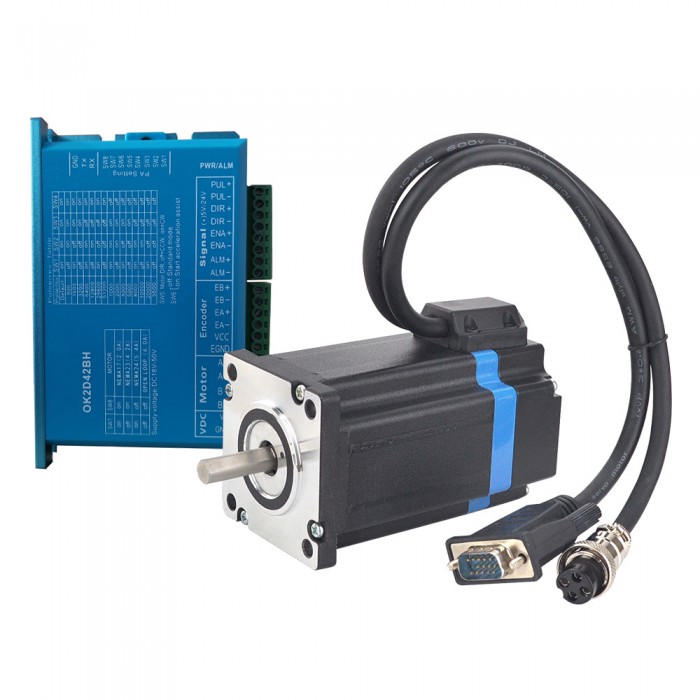

1 Axis Closed loop Stepper Motor Kit 3.5 Nm(495.74 oz.in) 1.8 Deg Nema 24 Closed loop Stepper Motor & Driver
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Here is the replacement for this kit: 1-OK2D42BH-24HE34
This CNC kit included:
- 1 x Closed Loop Stepper Driver 0~5.6A 18~70VDC for Nema 17, Nema 23, Nema 24 Stepper Motor

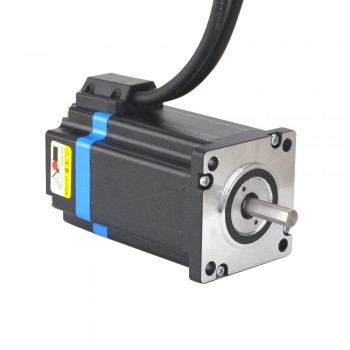

- 1 x Nema 24 Closed Loop Stepper Motor 3.5Nm/495.74oz.in Encoder 1000CPR

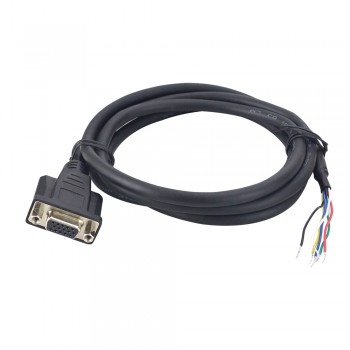

- 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

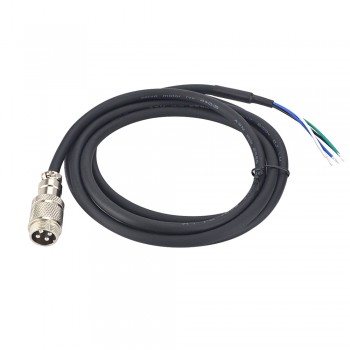

- 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 23 and 24 Closed Loop Stepper Motors(Just for aviation-plug model motor)
Motor Specification
- Manufacturer Part Number: 24HS33-5804D-E1000
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Frame Size: 60 x 60mm
- Holding Torque: 3.5 N.m(495.74 oz.in)
- Rated Current/phase: 5.8 A
- Shaft Diameter: Φ8 mm
- Full D-cut Shaft Length: 25 mm
- Phase Resistance: 0.62 ohm
- Inductance: 2 mH ± 20%(1KHz)
- Number of Leads: 4
- Lead Length: 300 mm
- Driving Voltage : 5V
- Output current : 55mA
- Resolution : 1000ppr
- Output Signal : 2 Channels
- Bore Diameter : Φ8mm
- Output Frequency : ≤1MHz
- Running Speed : ≤5000rpm
- IP Protection : IP20
Connection
A+
|
A-
|
B+
|
B-
|
White
|
Green
|
Blue
|
Black
|

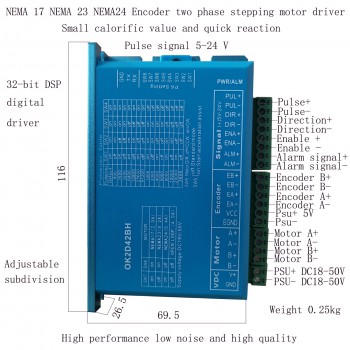

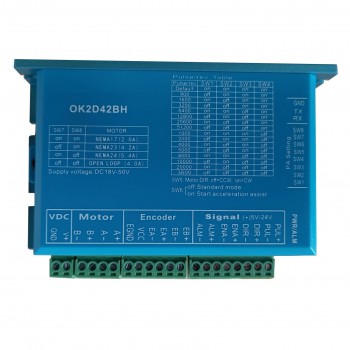

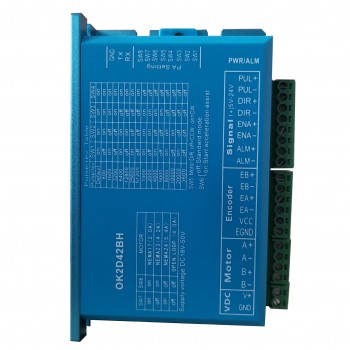

Driver Specification
Model:OK2D42BH
Output Peak Current: 0~5.6A
Input Voltage: +18~70VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):400~51200ppr
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:580g
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 300KHZ;
Subdivided into 16 settings (200~51200) to meet the requirements of most customers;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.
Resources
- Motor Datasheet: 24HS33-5804D-E1000.pdf
- Motor Torque Curve: 24HS33-5804D-E1000_Torque_Curve.pdf
- Driver Manual: OK2D42BHmanual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
CNC Kit Specification | |
---|---|
No of Axis | Single Axis |
Open-loop/Closed-loop | Closed-loop |
Motor Specification | |
Holding Torque (Ncm) | 350 |
Holding Torque (oz.in) | 495.74 |
Inductance(mH) | 2 |
Lead Length(mm) | 300 |
Motor Nema Size | Nema 24 |
No. of Lead | 4 |
Phase Resistance(ohm) | 0.62 |
Rated Current (A) | 5.8 |
Shaft Diameter(mm) | 8 |
Shaft Length(mm) | 25 |
Step Angle(°) | 1.8 |
Encoder Specification | |
IP Protection | IP20 |
Output Current(mA) | 55 |
Output Frequency | ≤1 |
Resolution(CPR) | 1000 |
Running Speed(rpm) | ≤5000 |
Output Signal Channels | 2 Channels |
