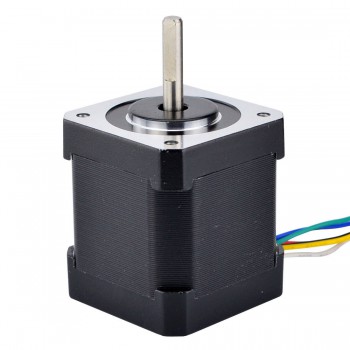

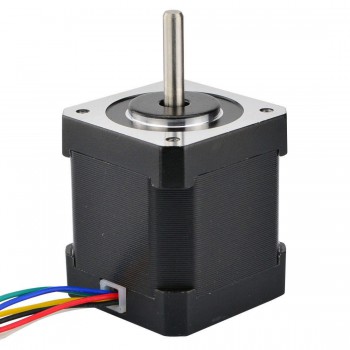

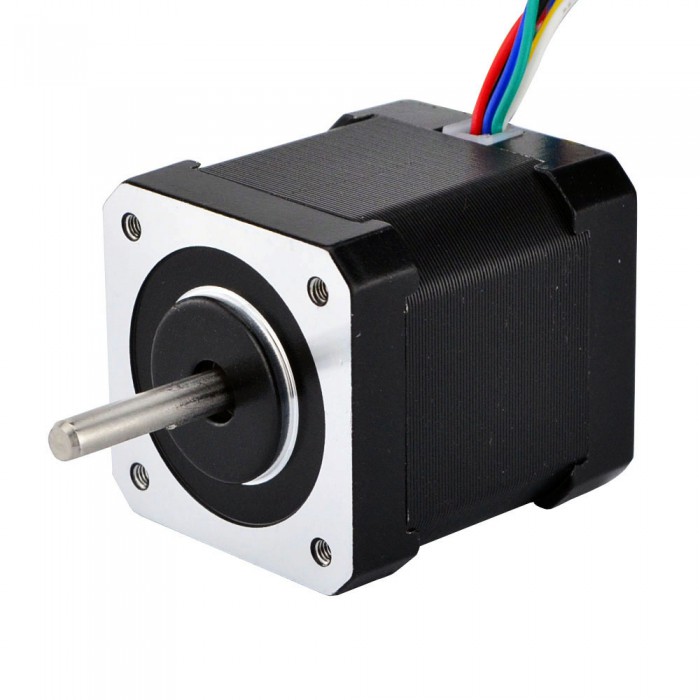

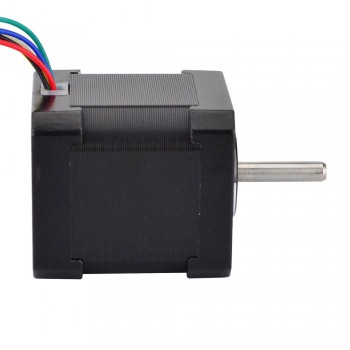

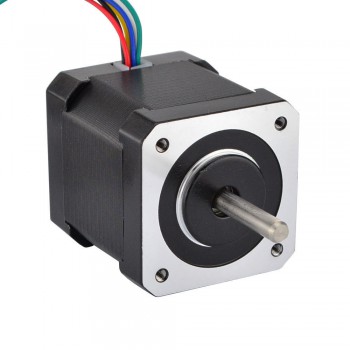

Nema 17 Stepper Motor Unipolar 1.8 Deg 32Ncm (45.3oz.in) 0.4A 12V 42x42x48mm 6 Wires
This unipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 6 wires, each phase draws 0.4A at 12V, with holding torque 32Ncm (45.3oz.in).
Electrical Specification
Manufacturer Part Number: 17HS19-0406S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 32Ncm(45.32oz.in)
Rated Current/phase: 0.4A
Voltage: 12V
Phase Resistance: 30.0ohms
Inductance: 25mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 380g
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
BLK
|
YEL
|
GRN
|
RED
|
WHT
|
BLU
|
Resources
Full Datasheet: 17HS19-0406S.pdf
Torque Curver: 17HS19-0406S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 32 |
| Holding Torque (oz.in) | 45.3 |
| Inductance(mH) | 25 |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 6 |
| Lead Length(mm) | 500 |
| Weight(g) | 350 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
