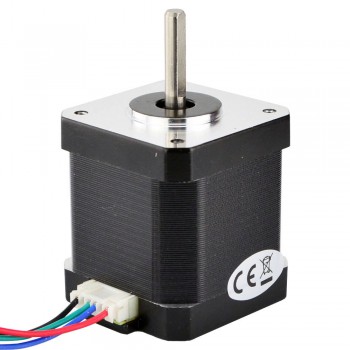

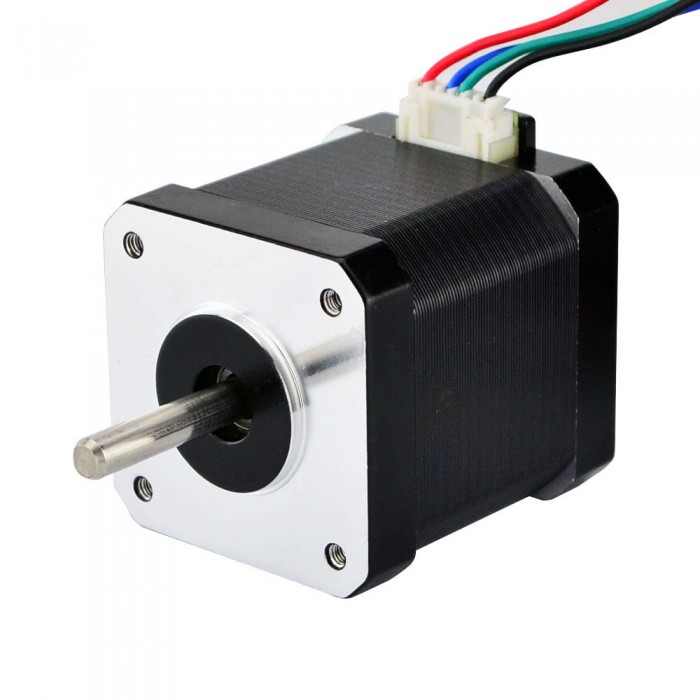

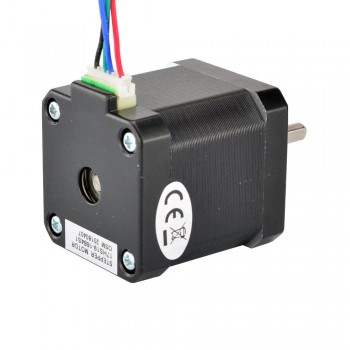

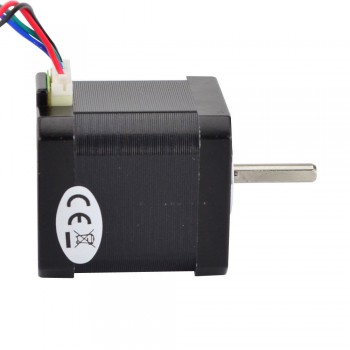

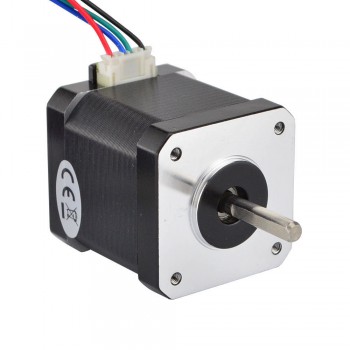

Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm (64oz.in) 1.68A 2.8V 42x42x48mm 4 Wires
-
Manuals and Documentation:
Full Datasheet:
Torque Curver:
Our Price:$14.30
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws 1.68A, with holding torque 45Ncm (64oz.in).
Electrical Specification
Manufacturer Part Number: 17HS19-1684S1
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 45Ncm(64oz.in)
Rated Current/phase: 1.68A
Voltage: 2.8V
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 390g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 45 |
| Holding Torque (oz.in) | 63.7 |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 2 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 1000 |
| Weight(g) | 400 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
