3 Axis TB6560 CNC Stepper Motor Kit 1.26Nm(178.5oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver

3 Axis TB6560 CNC Stepper Motor Kit 1.26Nm(178.5oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
NO.:3-TB6560-23HS22
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$119.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $113.99 5%
5 $111.59 7%
10 $107.99 10%
50 $104.39 13%
Add To Cart

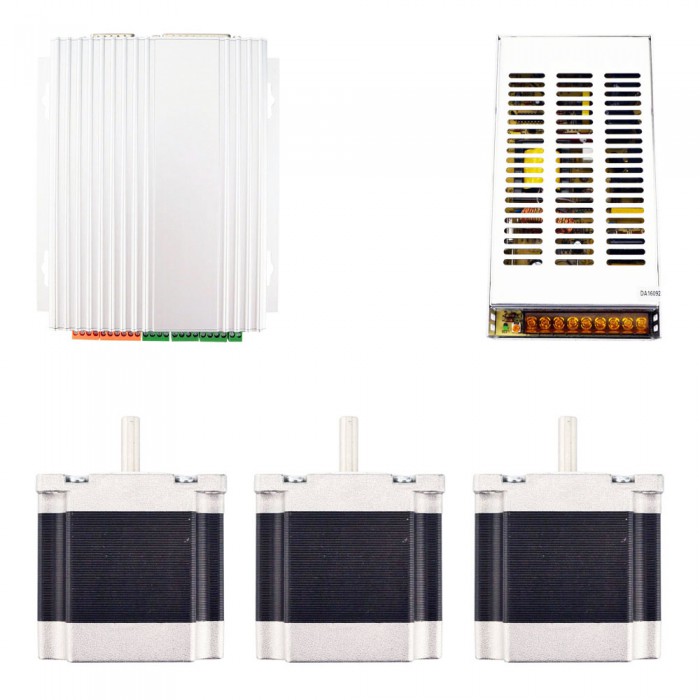

This CNC kit included:

1 x 3 Axis TB6560 CNC Stepper Motor Driver Board

3 x 1.26Nm (178.4oz.in) of Nema 23 Stepper Motor

1 x 201W 24V 8.3A 115/230V Switching Power Supply

1 x DB25 Parallel Cable & Manual CD

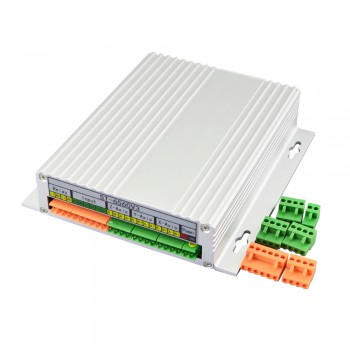

3 Axis TB6560 CNC Driver Board

Toshiba TB6560AHQ chip - High power, maximum current 3.5A

Resolution 1, 1/2, 1/8, 1/16 micro stepping output

Working voltage DC12-DC30V, rated voltage 24V

Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.

Half current function when no signal to prevent motor heating.

Build with a 227V 10A Relay.

Manual Control circuit included.

Overload, over-current and over-temperature safety.

Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.

Supports most parallel software MACH3, KCAM4, EMC2 etc.

Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.

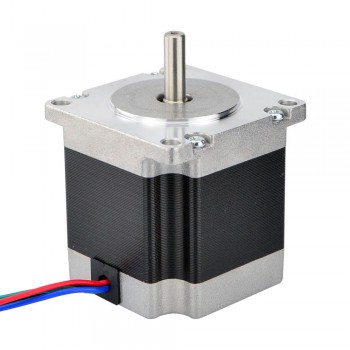

Stepper Motor

Manufacturer Part Number: 23HS22-2804S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 1.26Nm(178.4oz.in)

Rated Current/phase: 2.8A

Voltage: 2.5V

Phase Resistance: 0.9ohms

Inductance: 2.5mH ± 20%(1KHz)

Frame Size: 57 x 57mm

Body Length: 56mm

Shaft Diameter: Φ6.35mm

Shaft Length: 21mm

Number of Leads: 4

Lead Length: 500mm

Weight: 700g

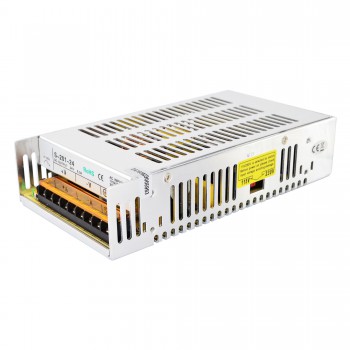

Switching Power Supply

24V DC 8.3A output

AC input voltage range: 93~132V/176~264VAC

115V/230V AC selected by switch

Free air cooling convection

Low output ripple and yawp

Over current, over voltage, short circuit and overheat protections

215*115*50mm (L*W*H)



Resources

Driver Manual: ST-6560V3.pdf

Motor Datasheet: 23HS22-2804S.pdf

Power Supply Manual: S-201-24.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 3 Axis TB6560 CNC Stepper Motor Kit 0.45Nm(64oz.in) 1.8 Deg Nema 17 Stepper Motor & Driver
Next: 3 Axis TB6560 CNC Stepper Motor Kit 1.9Nm(269oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8 / 1.8
Body Length(mm) 56
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Stepper Driver Specification
Driving Voltage(V) 12 - 30
Output Current(A) 0.7 - 3.5
Microstep(Steps/rev.) 200 - 3200
Max. Pulse Input(kHZ) 40
Physical Specification
Weight(g) 4100
