Nema 17 Bipolar Stepper Motor 12V 1.8 Degree 26Ncm (36.8oz.in) 0.4A 42x42x34mm 4 Wires

Nema 17 Bipolar Stepper Motor 12V 1.8 Degree 26Ncm (36.8oz.in) 0.4A 42x42x34mm 4 Wires
NO.:17HS13-0404S1
Review: Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$9.38
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $8.91 5%
30 $8.72 7%
50 $8.44 10%
100 $8.16 13%
Add To Cart

Nema 17 Bipolar Stepper Motor 12V 1.8deg 26Ncm (36.8oz.in) 0.4A 42x42x34mm 4 Wires



It with step angle 1.8deg and size 42x42x34mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in).



Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 26Ncm(36.8oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 37mH ± 20%(1KHz)
  •

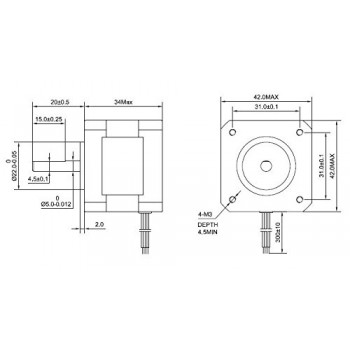

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 230g

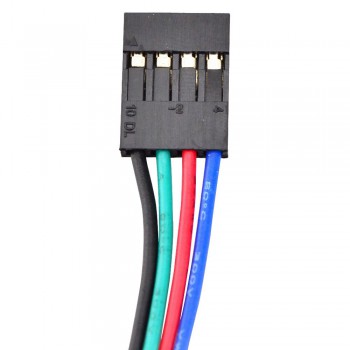

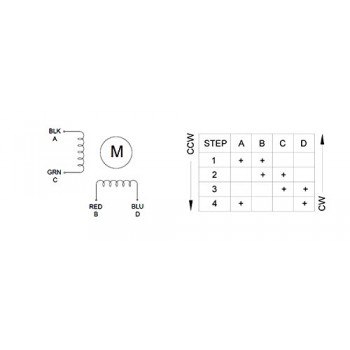

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 1.5A 1.8 Degree 45Ncm 12V for DIY CNC/ 3D Printer/Extruder
Next: Pancake Nema 11 Stepper Motor Bipolar 1.8 Degree 1Ncm (1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.8
Inductance(mH) 37
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 42x42
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Mr.David.K – 15 Nov 2019

Service is excellent, item received unexpectedly quickly and I’m impressed with the shockproof packing. All perfectly fits the description. performance has been quite good, it’s very responsive, does the job for my 3D printer build. I would definitely recommend this stepper motor for small projects.
