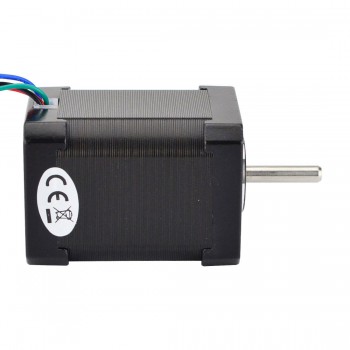

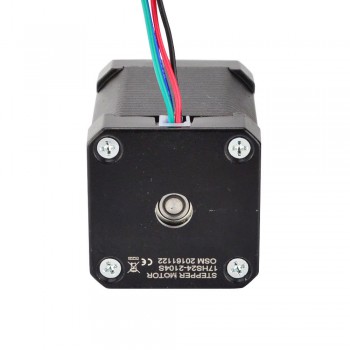

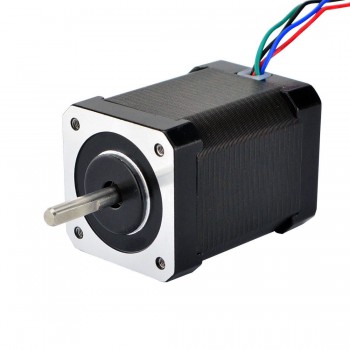

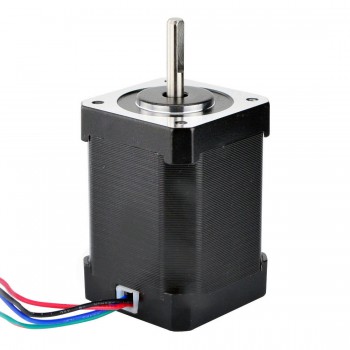

Nema 17 Stepper Motor Bipolar 1.8 Degree 65Ncm (92oz.in) 2.1A 3.36V 42x42x60mm 4 Wires Extruder Motor(17HS24-2104S)
-
Manuals and Documentation:
Full Datasheet:
Torque Curver:
It with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws 2.1A, with holding torque up to 65Ncm (92oz.in).
Electrical Specification
Manufacturer Part Number: 17HS24-2104S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 2.1A
Voltage: 3.36V
Phase Resistance: 1.6ohms
Inductance: 3mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 500g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 65 |
| Holding Torque (oz.in) | 92 |
| Inductance(mH) | 3 |
| Phase Resistance(ohm) | 1.6 |
| Rated Current (A) | 2.1 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 60 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 500 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
