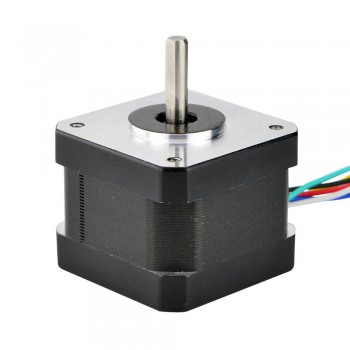

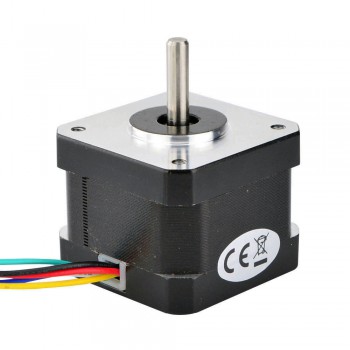

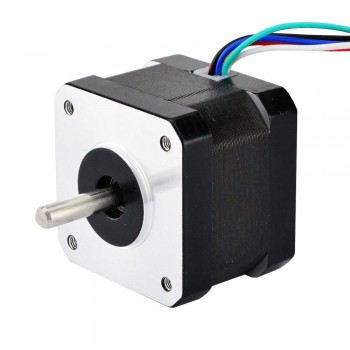

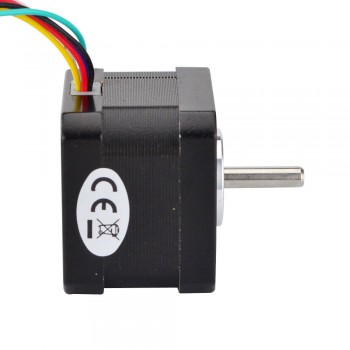

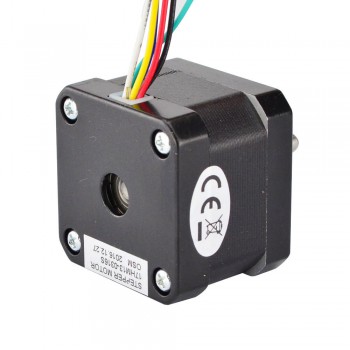

Nema 17 Stepper Motor Unipolar 0.9 Deg 16Ncm (22.7oz.in) 0.3A 12V 42x42x34mm 6 Wires
This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x34mm. It has 6 wires, each phase draws current 0.31.0A at 12V, with holding torque 16Ncm (22.7oz.in).
Electrical Specification
Manufacturer Part Number: 17HM13-0316S
Motor Type: Unipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 16Ncm(22.7oz.in)/23Ncm(31.8oz.in)
Rated Current/phase: 0.31A/0.22A
Voltage: 12V
Phase Resistance: 38.5ohms/77.0ohms
Inductance: 36mH ± 20%(1KHz)/144mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 300g
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
BLK
|
YEL
|
GRN
|
RED
|
WHT
|
BLU
|
Resources
Full Datasheet: 17HM13-0316S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 16 |
| Holding Torque (oz.in) | 22.7 |
| Inductance(mH) | 36 |
| Phase Resistance(ohm) | 35.8 |
| Rated Current (A) | 0.31 |
| Step Angle(°) | 0.9 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 6 |
| Lead Length(mm) | 500 |
| Weight(g) | 280 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
