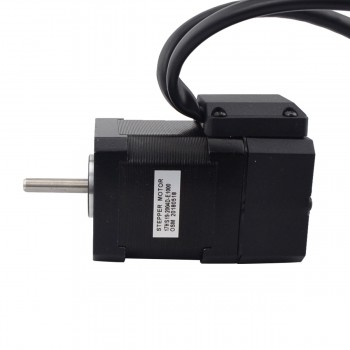

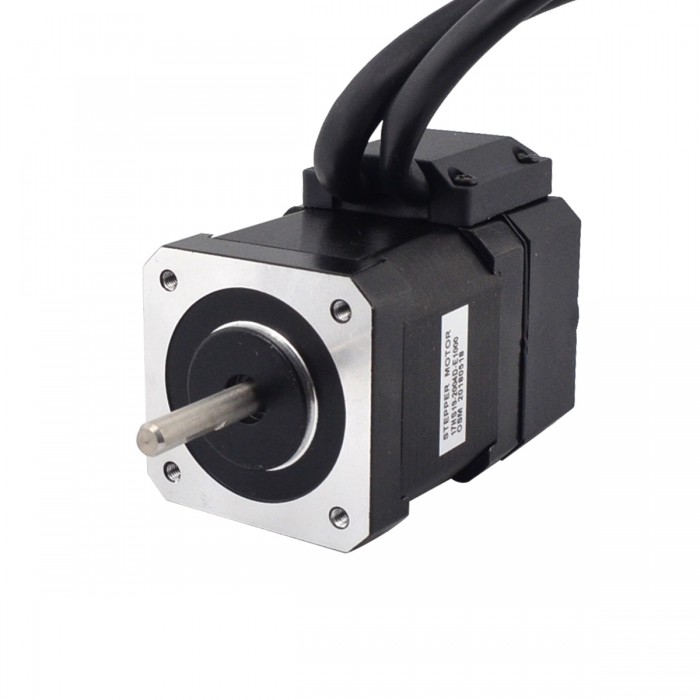

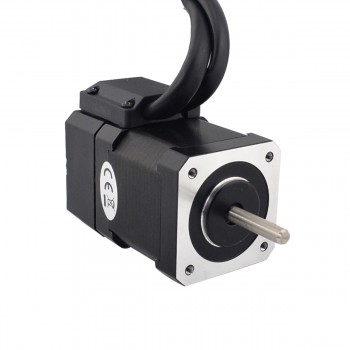

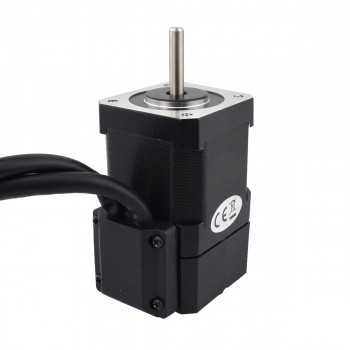

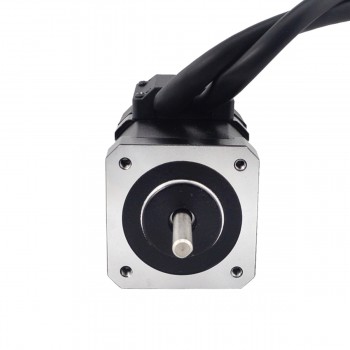

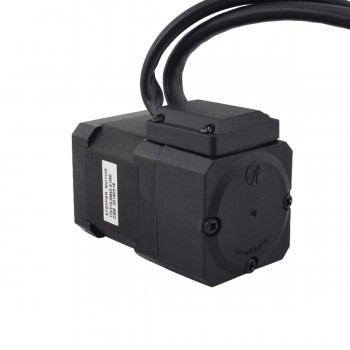

Nema 17 Closed Loop Stepper Motor Bipolar 1.8 Deg 0.59Nm 2A 2.80V with Encoder 1000CPR

Nema 17 Closed Loop Stepper Motor  Bipolar 1.8 Deg 0.59Nm 2A 2.80V with Encoder 1000CPR
NO.:17HS19-2004D-E1000
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$38.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $36.26 5%
10 $35.50 7%
50 $34.35 10%
100 $33.21 13%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 17HS19-2004D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.59Nm(83.57oz.in)
  • Rated Current/phase: 2.00A
  • Voltage: 2.80V
  • Phase Resistance: 1.4ohms
  • Inductance: 3.00mH ± 20%(1KHz)
  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

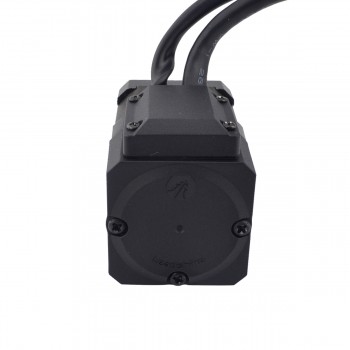

Encoder Specification

  • Driving Voltage : 4.5V to 5.5V
  • Output current : 20mA
  • Resolution : 1000cpr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ5mm
  • Output Frequency : ≤60MHz
  • Running Speed : ≤3600rpm
  • IP Protection: IP20

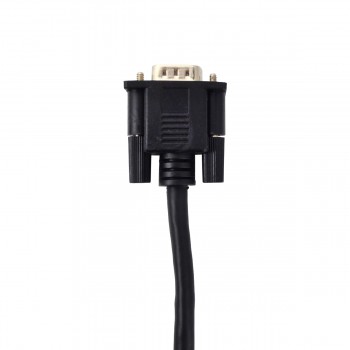

Connection

A+
A-
B+
B-
Green
Black
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed Loop Stepper Motor Bipolar 1.8 Deg 45Ncm/64oz.in 2A 2.20V with Encoder 1000CPR
Next: Nema 17 Closed Loop Stepper Motor Bipolar 1.8 Deg 65Ncm/92oz.in 2.10A 3.36V with Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 83.568
Inductance(mH) 3.0
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.4
Rated Current (A) 2.0
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Current(mA) 20
Output Frequency ≤60KHz
Rated Voltage(V) 5
Resolution(CPR) 1000
Running Speed(rpm) ≤3600rpm
Output Signal Channels 2 Channels
