Small Dual Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 0.6A 6V 4Ncm (5.7oz.in) 0.6A 6V 4 Wires

NO.:8HS15-0604D
Post a review

Special Offer in December 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till December 7th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$22.67

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$21.54	5%
10	$21.08	7%
50	$20.40	10%
100	$19.72	13%

Affiliate Link

Description Specification Custom Options Review

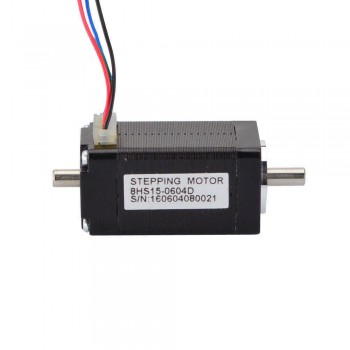

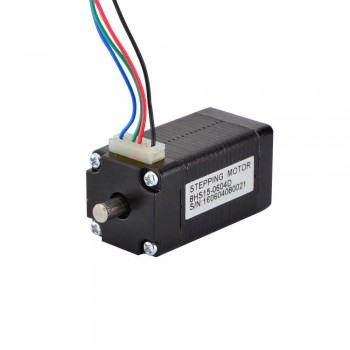

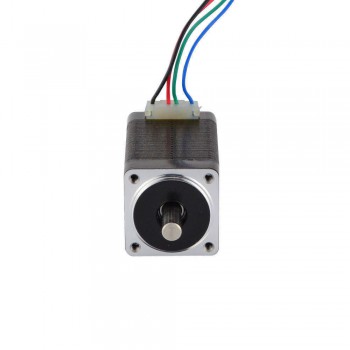

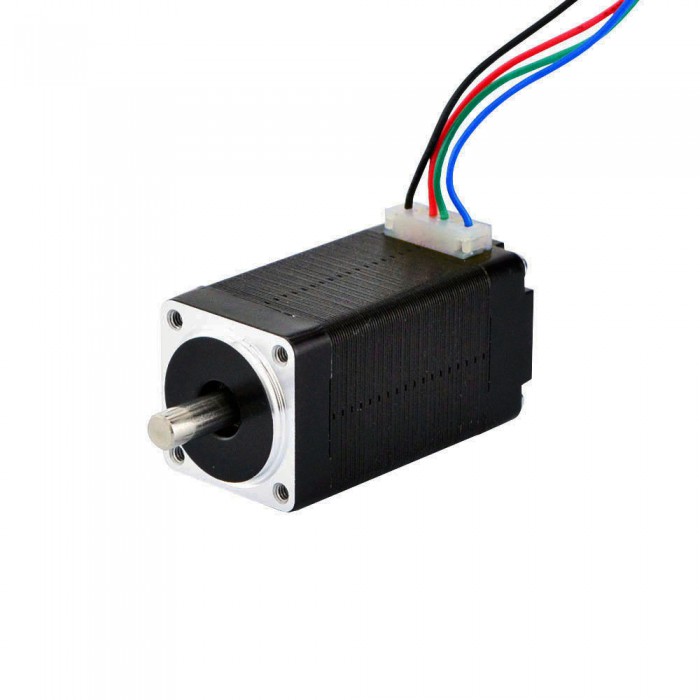

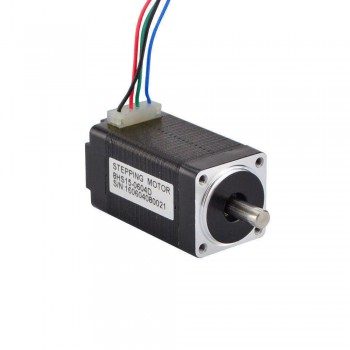

Small Dual Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 0.6A 6V 4Ncm (5.7oz.in) 0.6A 6V 4 Wires

This dual shaft nema 8 stepper motors with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A at 6.0V, with holding torque 4Ncm (5.7oz.in). A rear shaft is available.

Electrical Specification

Manufacturer Part Number: 8HS15-0604D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 4Ncm(5.7oz.in)
Rated Current/phase: 0.6A
Voltage: 6V
Phase Resistance: 10ohms
Inductance : 5.5mH ± 20%(1KHz)

Physical Specification

Frame Size: 20 x 20mm
Body Length: 38mm
Shaft Shape : "O"
Shaft Diameter: Φ4mm
Front Shaft Length: 10mm
Rear Shaft Length : 6mm
Number of Leads: 4
Lead Length: 300mm
Weight : 80g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 8HS15-0604D.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mini Nema 8 Stepper Motor Bipolar 6V 0.6A 1.8 Degree 4Ncm (5.7oz.in) 4 Wires
Next: Nema 11 Stepper Motor Bipolar 1.8 Deg 6Ncm (8.5oz.in) 0.67A 3.8V 28x28x31mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	4
Holding Torque (oz.in)	5.7
Inductance(mH)	5.5
Phase Resistance(ohm)	10
Rated Current (A)	0.6
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	38
Frame Size(mm)	20x20
Single Shaft/Dual Shaft	Dual Shaft
Shaft Type	O
Shaft Diameter(mm)	4
Shaft Length(mm)	10
No. of Lead	4
Lead Length(mm)	300
Weight(g)	80

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
