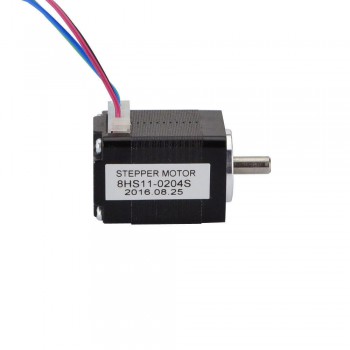

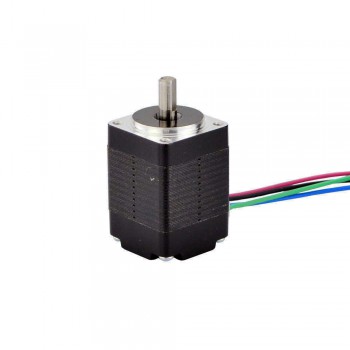

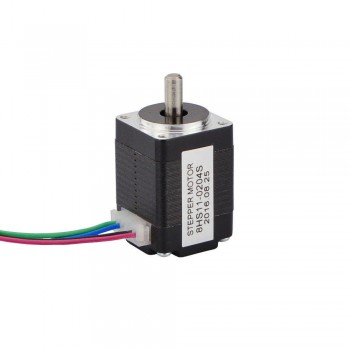

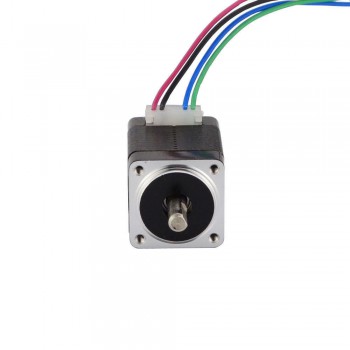

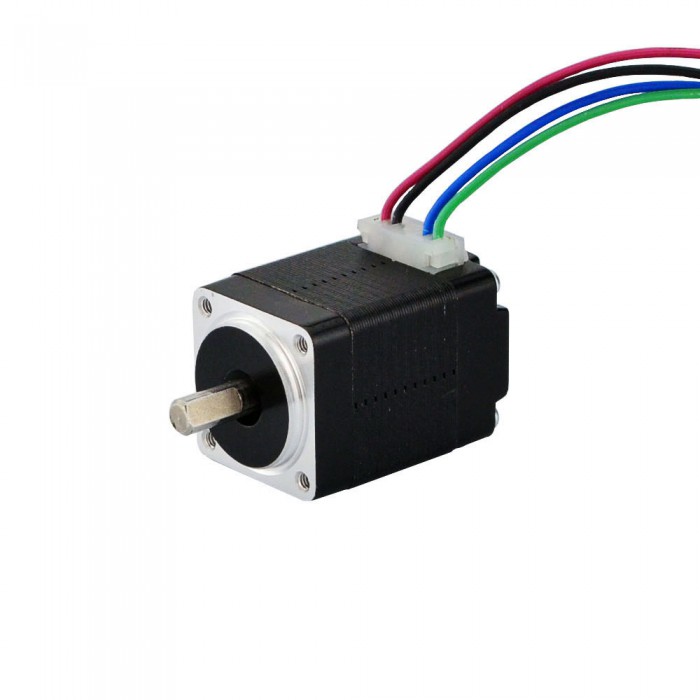

Mini Nema 8 Steperr Motor Bipolar 1.8 deg 1.6Ncm (2.3oz.in) 0.2A 4.8V 20x20x28mm 4 Wires
This mini nema 8 stepper motor is the small hybrid motor we carry, it with step angle 1.8deg and size 20x20x28mm. It has 4 wires, each phase draws 0.2A at 4.8V, with holding torque 1.6Ncm (2.3oz.in).
Electrical Specification
- Manufacturer Part Number: 8HS11-0204S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 1.6Ncm(2.3oz.in)
- Rated Current/phase: 0.2A
- Voltage: 4.8V
- Phase Resistance: 24ohms
- Inductance: 8mH ± 20%(1KHz)
Physical Specification
- Frame Size: 20 x 20mm
- Body Length: 28mm
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- D-cut Length: 7mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 60g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 8HS11-0204S.pdf
- Torque Curver: 8HS11-0204S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 1.6 |
| Holding Torque (oz.in) | 2.3 |
| Inductance(mH) | 8 |
| Phase Resistance(ohm) | 24 |
| Rated Current (A) | 0.2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 28 |
| Frame Size(mm) | 20x20 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 50 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
hankincolorado – 18 Oct 2019
Nice small stepper. As advertised.
Lutorm – 04 Oct 2017
This is a really small stepper motor but, as far as I understand, it does *not* have the normal dimensions for a NEMA-8 motor. Most specs I've seen say a NEMA-8 motor should have 16mm bolt spacing and a 15mm pilot circle. This one has 15.4mm bolt spacing and a 16mm pilot circle. Just be sure to double check that it will fit your application.
East Coast – 10 Jun 2017
I bought this directly from Stepper Online. It will not fit with NEMA 8 motor mounts sold by Servo City (a.k.a. Actobotics and Robotzone). As noted by another buyer, the motor has a pilot circle of 16.0 mm and bolt hole spacing of 15.4 mm, which I measured with calipers. In contrast, the motor mount has a diameter of only 15.75 mm for the pilot circle and 16.0 mm bolt hole spacing.
Lutorm – 04 Oct 2016
This is a really small stepper motor but, as far as I understand, it does *not* have the normal dimensions for a NEMA-8 motor. Most specs I've seen say a NEMA-8 motor should have 16mm bolt spacing and a 15mm pilot circle. This one has 15.4mm bolt spacing and a 16mm pilot circle. Just be sure to double check that it will fit your application.
- Tag:
- Nema ,
- 1.8deg ,
- 1.6Ncm ,
- 0.2A ,
- 4.8V ,
- 4 Wires ,
- Single Shaft ,
- Small Size ,
- Mini ,
- Lightweight ,
- Quiet
