Mini Nema 8 Stepper Motor Bipolar 6V 0.6A 1.8 Degree 4Ncm (5.7oz.in) 4 Wires

Mini Nema 8 Stepper Motor Bipolar 6V 0.6A 1.8 Degree 4Ncm (5.7oz.in) 4 Wires
NO.:8HS15-0604S
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$21.94
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $20.84 5%
10 $20.40 7%
50 $19.75 10%
100 $19.09 13%
Add To Cart

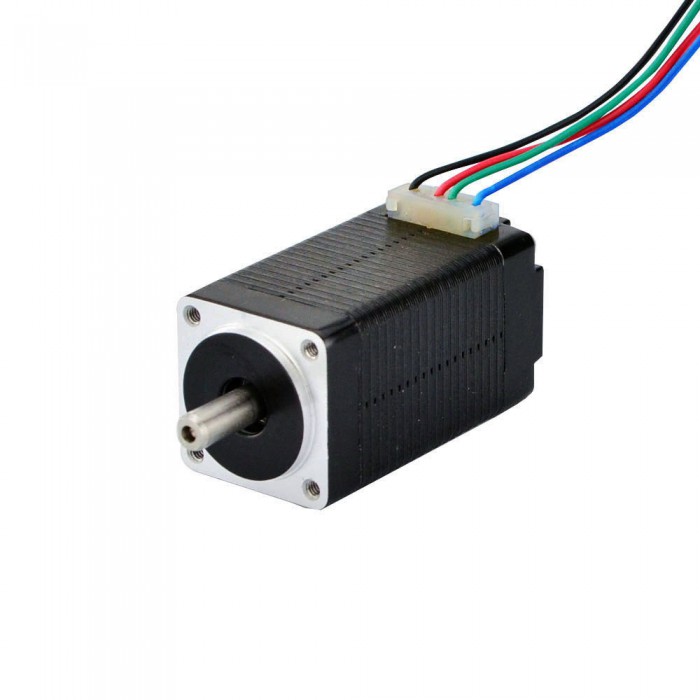

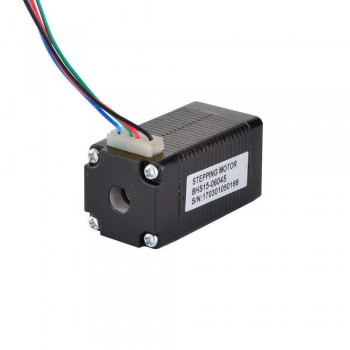

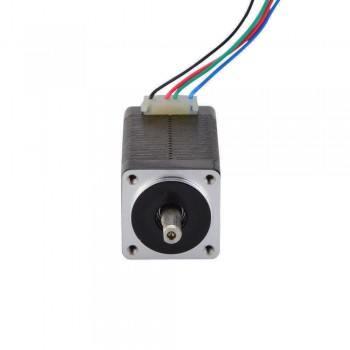

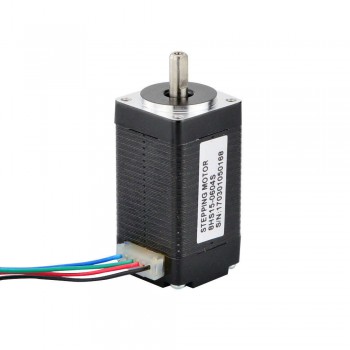

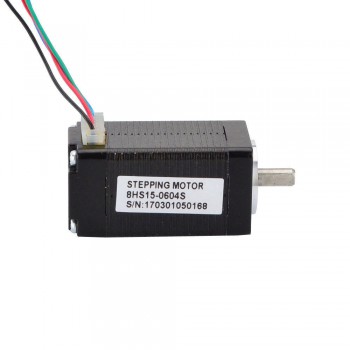

Mini Nema 8 Stepper Motor Bipolar 6V 0.6A 1.8 Degree 4Ncm (5.7oz.in) 4 Wires



This nema 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A at 6.0V, with holding torque 4Ncm (5.7oz.in).



Electrical Specification

  • Manufacturer Part Number: 8HS15-0604S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 4Ncm(5.7oz.in)
  • Rated Current/phase: 0.6A
  • Voltage: 6V
  • Phase Resistance: 10ohms
  • Inductance: 5.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 38mm
  • Shaft Shape: D-cut
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • D-cut Length : 7mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 80g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Micro Nema 8 Stepper Motor Bipolar 12V 1.8 Deg 3Ncm (4.25oz.in) 0.3A 20x20x38mm 4 Wires
Next: Small Dual Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 0.6A 6V 4Ncm (5.7oz.in) 0.6A 6V 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 4
Holding Torque (oz.in) 5.7
Inductance(mH) 5.5
Phase Resistance(ohm) 10
Rated Current (A) 0.6
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 38
Frame Size(mm) 20x20
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 4
Shaft Length(mm) 10
No. of Lead 4
Lead Length(mm) 300
Weight(g) 80
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
