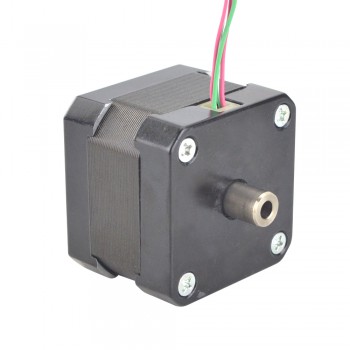

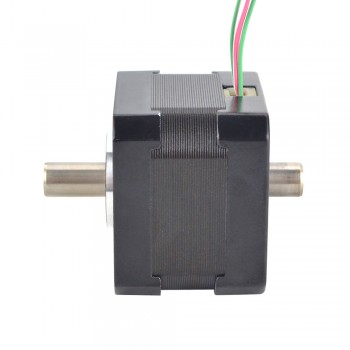

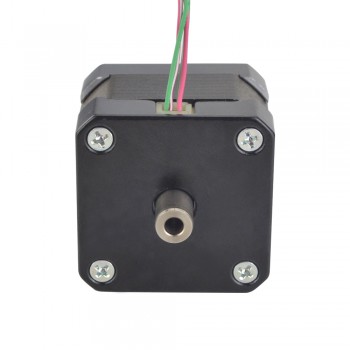

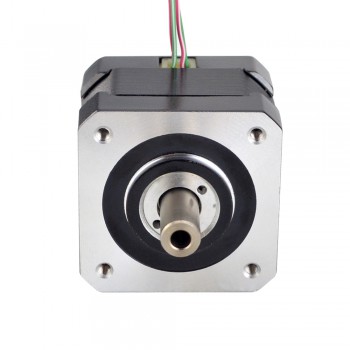

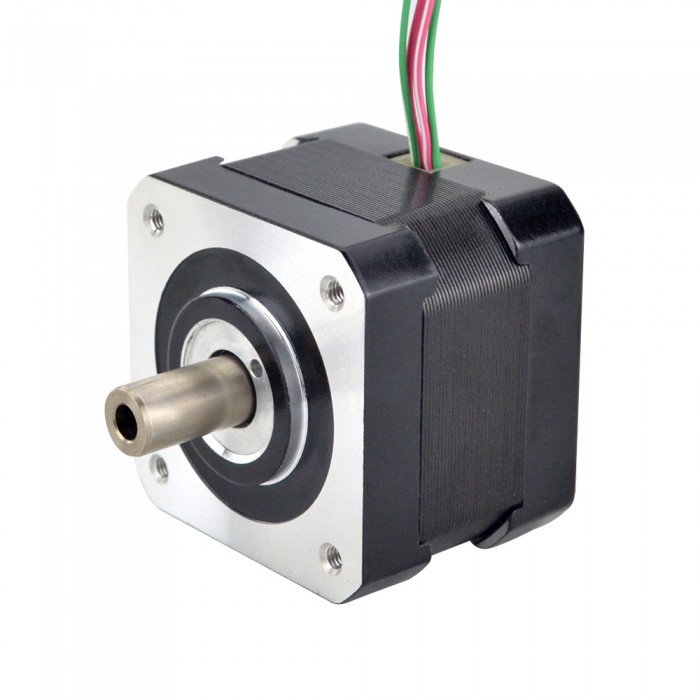

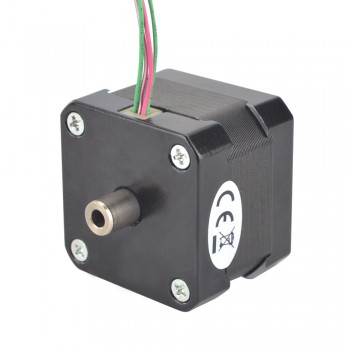

Hollow Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 0.25 Nm(35.41oz.in) 1.5A 42x42x33.8mm Dual Shaft
Electrical Specification
Manufacturer Part Number: 17HS13-1504H
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.25 Nm(35.41oz.in)
Rated Current/phase: 1.5 A
Phase Resistance: 1.56 ohms± 10%
Inductance: 1.9 mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42 mm
Body Length: 33.8 mm
Outer Shaft Diameter: Φ8 mm
Inner Shaft Diameter: Φ4 mm
Front Shaft Length: 16 mm
Rear Shaft Length: 9 mm
Number of Leads: 4
Lead Length: 310 mm
Weight: 0.23 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
RED
|
RED/WHI
|
GRN/WHI
|
GRN
|
Resources
Full Datasheet: 17HS13-1504H.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 25 |
| Holding Torque (oz.in) | 35.41 |
| Inductance(mH) | 1.9 |
| Phase Resistance(ohm) | 1.56 |
| Rated Current (A) | 1.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Frame Size(mm) | 42 x 42 |
| Lead Length(mm) | 310 |
| No. of Lead | 4 |
| Shaft Type | Hollow |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 230 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
