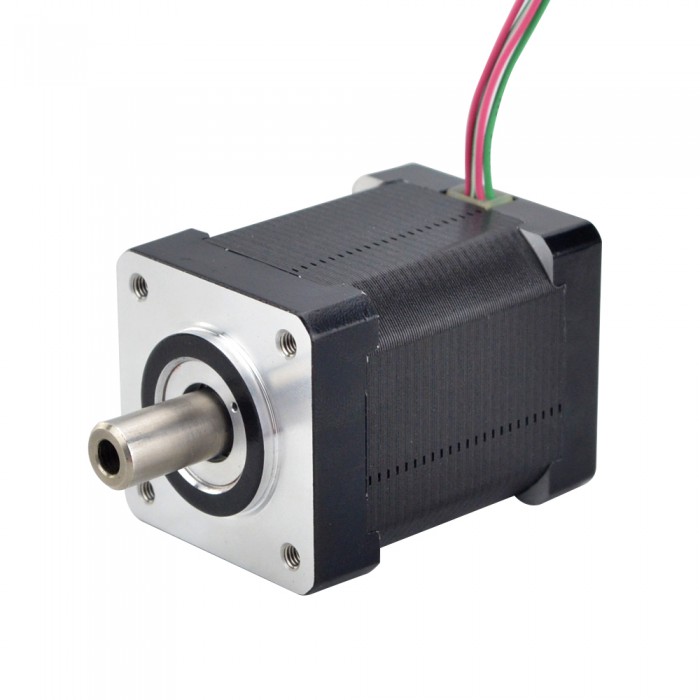

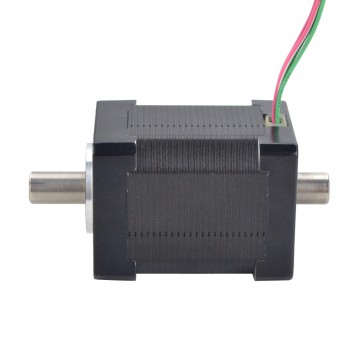

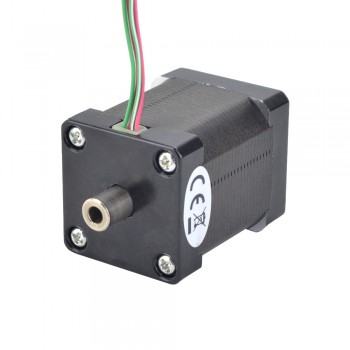

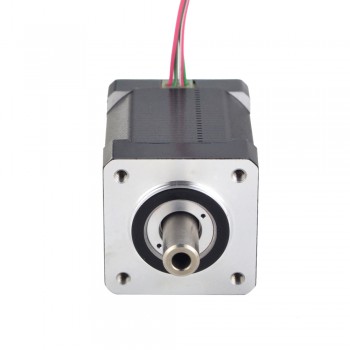

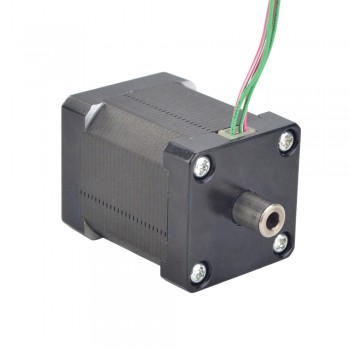

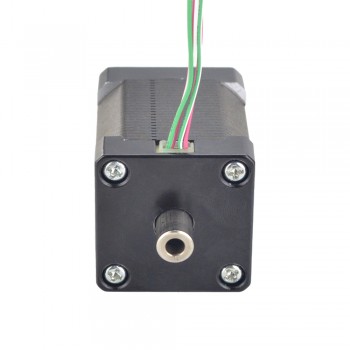

Hollow Shaft Nema 14 Stepper Motor Bipolar 1.8 Deg 33Ncm (46.74oz.in) 2.0A 35x35x48mm 4 Wires
Electrical Specification
Manufacturer Part Number: 14HS19-2004H
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.33 Nm(46.74oz.in)
Rated Current/phase: 2.0 A
Phase Resistance: 1.4 ohms± 10%
Inductance: 2.41 mH ± 20%(1KHz)
Physical Specification
Frame Size: 35 x 35 mm
Body Length: 48 mm
Outer Shaft Diameter: Φ8 mm
Inner Shaft Diameter: Φ4 mm
Front Shaft Length: 16 mm
Rear Shaft Length: 9 mm
Number of Leads: 4
Lead Length: 310 mm
Weight: 0.22 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
RED
|
RED/WHI
|
GRN/WHI
|
GRN
|
Resources
Full Datasheet: 14HS19-2004H.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 48 |
| Lead Length(mm) | 310 |
| No. of Lead | 4 |
| Shaft Type | Hollow |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 220 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 33 |
| Holding Torque (oz.in) | 46.74 |
| Inductance(mH) | 2.41 |
| Phase Resistance(ohm) | 1.4 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
