Nema 11 Non-captive Linear Stepper Motor 1.8 Deg 8.0Ncm 2.4V Bipolar 1.8 Deg 0.75A Lead 4.877mm/0.192" Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$42.98

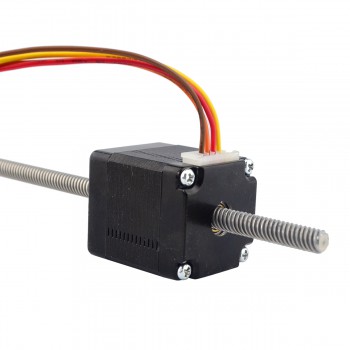

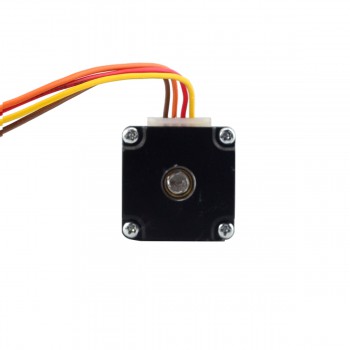

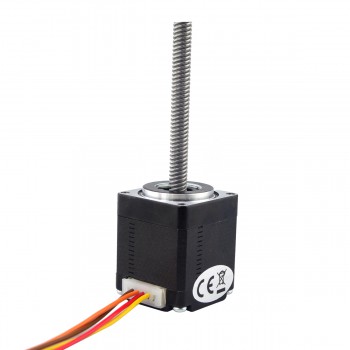

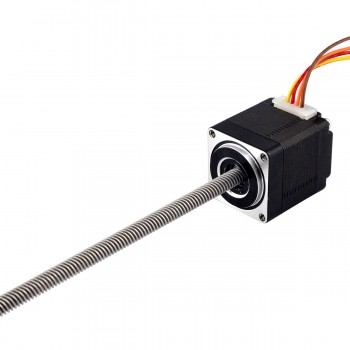

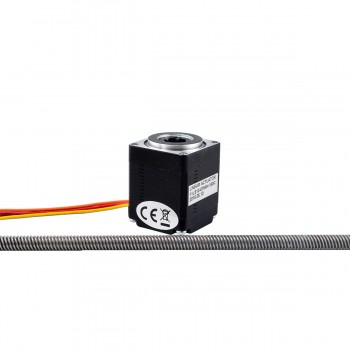

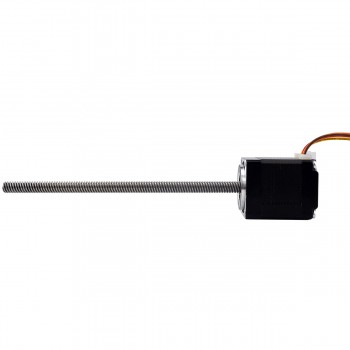

Nema 11 non-captive linear actuator. A 34mm, 1.8°, 0.75A stepper motor mated to a 150mm Tr5.56x4.8768 leadscrew.
Electrical Specification
Manufacturer Part Number: 11LS13-0754N-150C
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 8.0Ncm(11.1oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 3.2ohms
Voltage: 2.4V
Inductance: 2.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 34mm
Lead Screw Length: 150mm(3.937")
Lead Screw Diameter: Φ5.56mm(0.2189")
Lead /Step: 0.024384mm(0.00096")
Lead/Revolution: 4.8768mm(0.192")
Number of Leads: 4
Lead Length: 300mm
Weight: 150g
Connection
| A+ | A- | B+ | B- |
| Red | Brown | Yellow | Orange |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 8 |
| Holding Torque (oz.in) | 11.3 |
| Inductance(mH) | 2 |
| Phase Resistance(ohm) | 3.2 |
| Rated Current (A) | 0.75 |
| Step Angle(°) | 1.8 |
| Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 34 |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 5.56 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 4.8768 |
| Lead Travel/Step(mm) | 0.024384 |
| Frame Size(mm) | Nema 11 (28 x 28) |
