Nema 17 Stepper Motor Bipolar 0.9 Deg 44Ncm (62.3oz.in) 1.68A 2.8V 42x42x47mm 4 Wires
Nema 17 Stepper Motor Bipolar 0.9 deg 44Ncm (62.3oz.in) 1.68A 2.8V 42x42x47mm 4 Wires

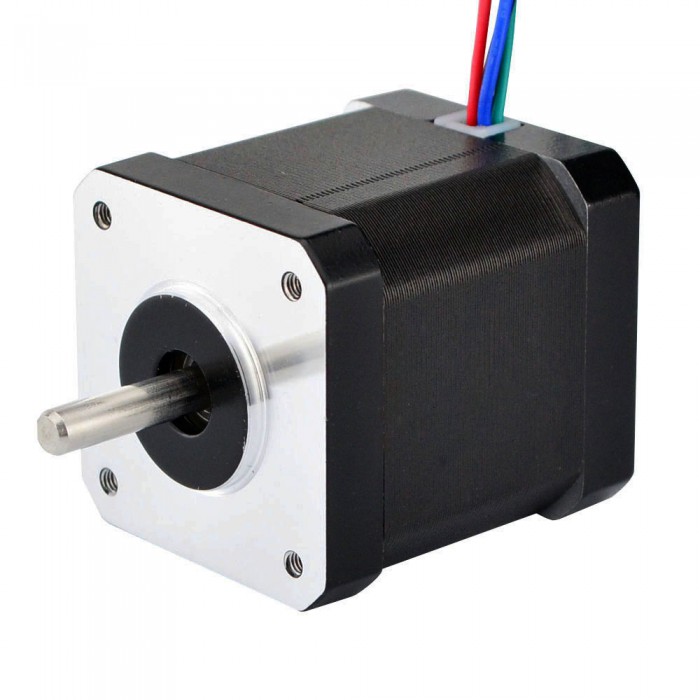

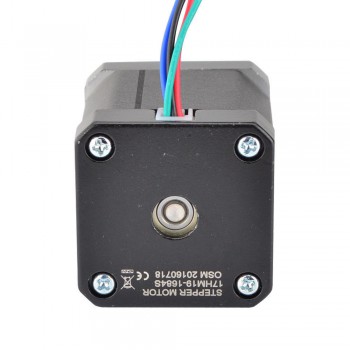

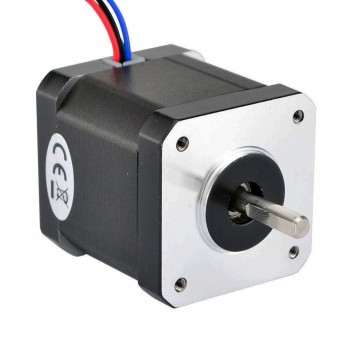

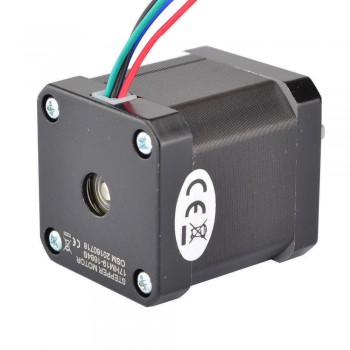

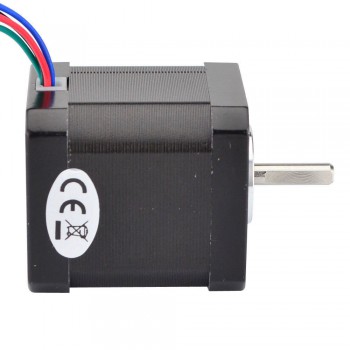

This bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x47mm. It has 4 wires, each phase draws current 1.68A, with holding torque 44Ncm (62.3oz.in).
Electrical Specification
Manufacturer Part Number: 17HM19-1684S
Motor Type: Bipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Voltage: 2.8V
Phase Resistance: 1.65ohms
Inductance: 4.1mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 47mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 370g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 17HM19-1684S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.3 |
| Inductance(mH) | 4.1 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 0.9 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 350 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
