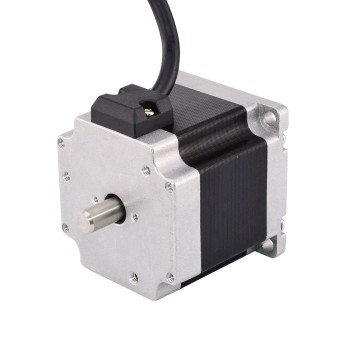

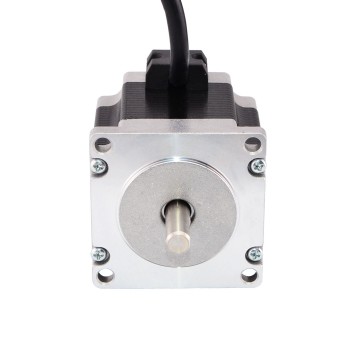

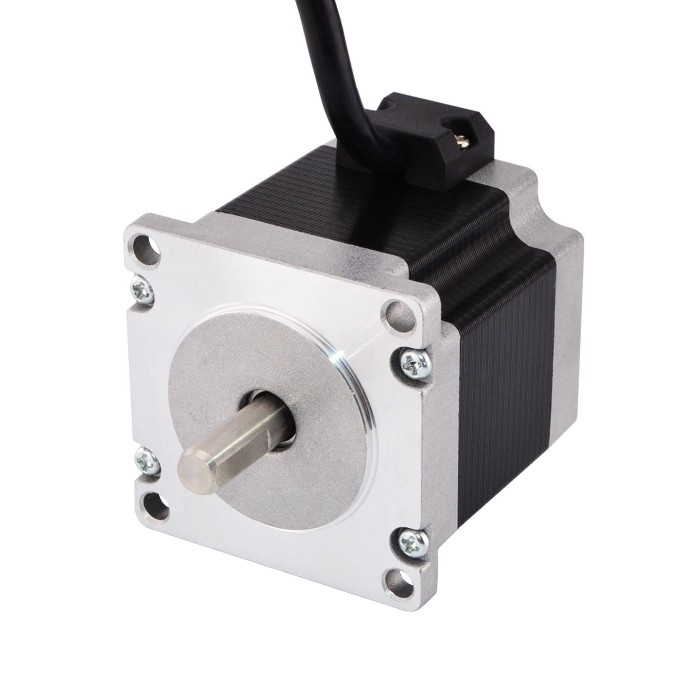

Dual Shaft Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

NO.:SKU:23HS22-2804D
Review: Post a review
Latest price:$20.81
Buy It Now:$16.00
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$15.37 $14.72 $14.08 $13.45
Add To Cart

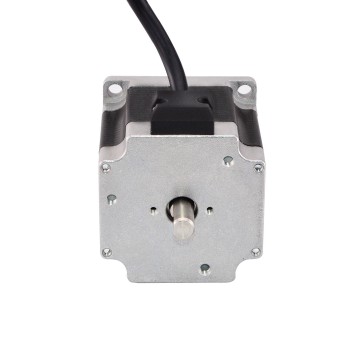

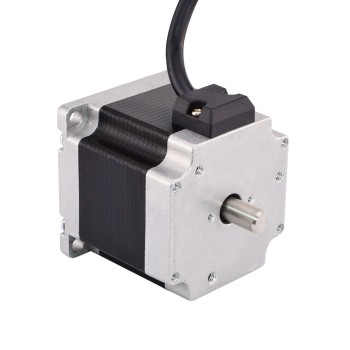

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

  • Manufacturer Part Number: 23HS22-2804D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ8mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 deg 1.9Nm (269oz.in) 3A 3.36V 57x57x76mm 4 Wires
Next: Nema 23 Stepper Motor Bipolar 1.8 deg 2.83Nm (400 oz.in) 4A 2.26V 57x57x84mm 8 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 750
