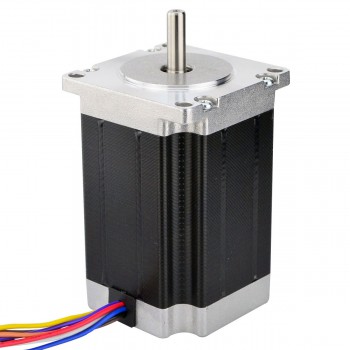

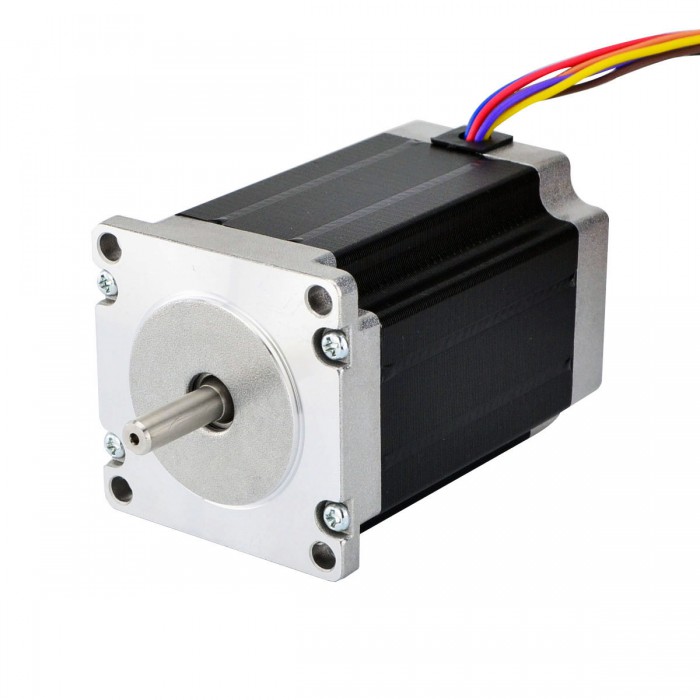

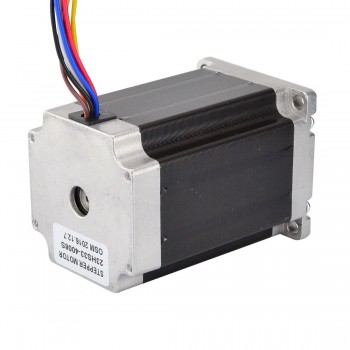

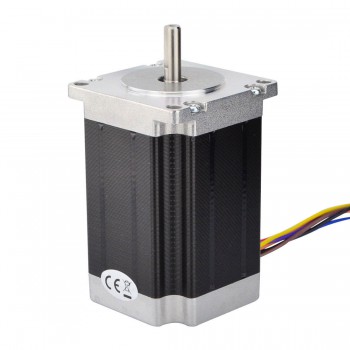

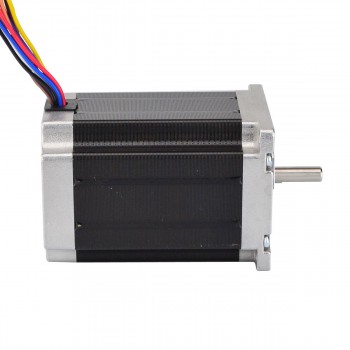

Nema 23 Stepper Motor Bipolar 1.8 deg 2.83Nm (400 oz.in) 4A 2.26V 57x57x84mm 8 Wires

NO.:SKU:23HS33-4008S
Review: Post a review
Latest price:$32.52
Buy It Now:$25.01
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$24.01 $23.01 $22.01 $21.00
Add To Cart

This nema 23 stepper motor with step angle 1.8deg and size 57x57x84mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 2.0Nm(283oz.in) with unipolar connection and 2.83Nm(400oz.in) with bipolar connection.

Electrical Specification

  • Manufacturer Part Number: 23HS33-4008S
  • Motor Type: Unipolar/Bipolar
  • Step Angle: 1.8 deg
  • Holding Torque(Bipolar): 2.83Nm(400oz.in)
  • Holding Torque(Unipolar): 2.0Nm(283oz.in)
  • Rated Current(Bipolar Serial): 2.83A
  • Rated Current(Bipolar Parallel): 5.66A
  • Rated Current(Unipolar): 4.0A
  • Phase Resistance(Bipolar Serial): 1.6ohms
  • Phase Resistance(Bipolar Parallel): 0.4ohms
  • Phase Resistance(Unipolar): 0.8ohms
  • Inductance(Bipolar Serial): 7.2mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 1.8mH ± 20%(1KHz)
  • Inductance(Unipolar): 1.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 84mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Weight: 1.3kg

Connection

A+
A-
C-
C+
B+
B-
D-
D+
BLK
WHT
BRN
ORG
RED
PUR
BLU
YEL

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires
Next: Dual Shaft Nema 23 Stepper Motor Uni/Bipolar 1.8 deg 2.83Nm (400 oz.in) 4A 57x84mm 8 Wires
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Holding Torque (Ncm) 283
Holding Torque (oz.in) 400
Inductance(mH) 1.8
Phase Resistance(ohm) 0.4
Rated Current (A) 5.66
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 84
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
No. of Lead 8
Lead Length(mm) 300
Weight(g) 1130
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
