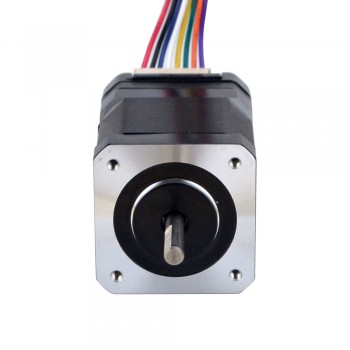

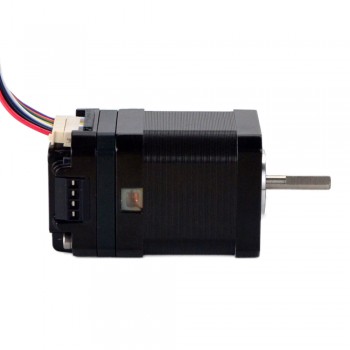

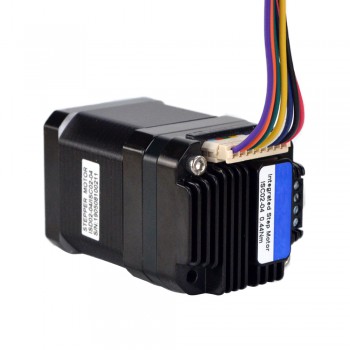

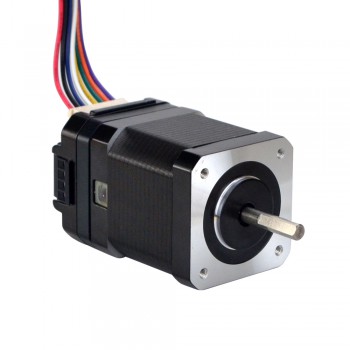

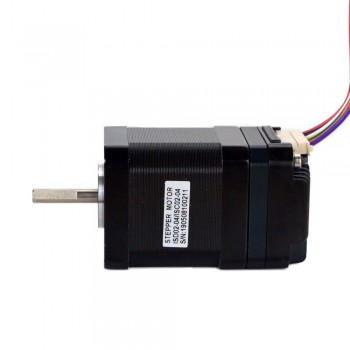

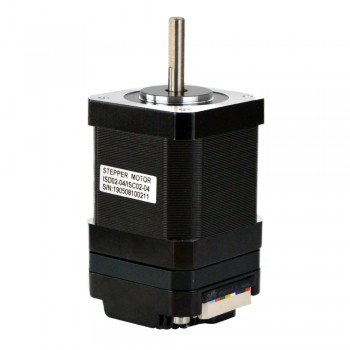

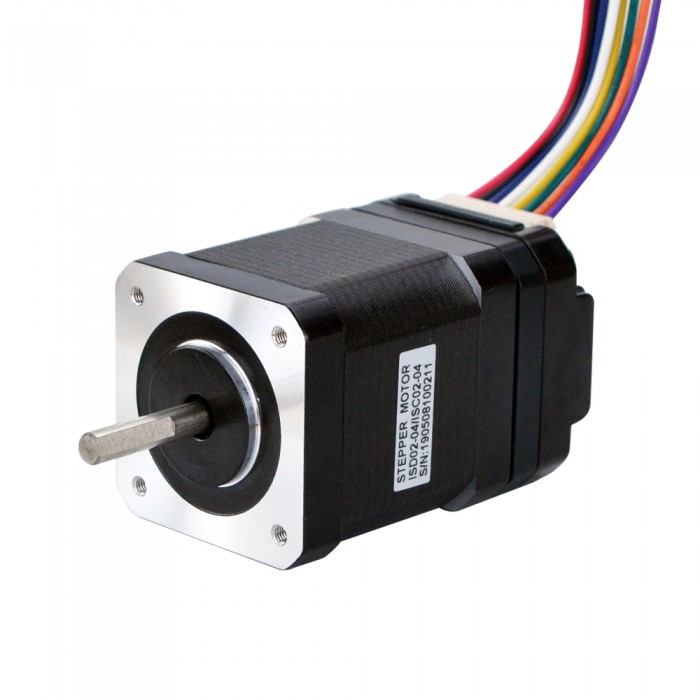

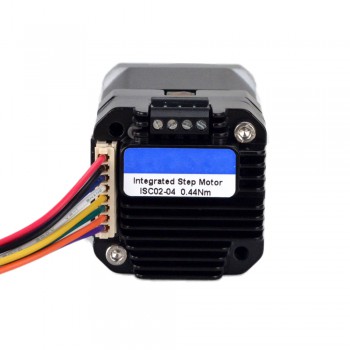

Integrated Nema 17 Stepper Motor 1.8 Deg 0.44Nm(62.32 oz-in) 1.68A with Controller10-30VDC ISC02

NO.:ISC02-04
Post a review

China National Day Special Offer:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till October 7th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$82.53

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$78.40	5%
10	$76.75	7%
50	$74.28	10%
100	$71.80	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specifications:

Manufacturer Part Number: ISC02-04

Step Angle: 1.8 deg

Holding Torque: 44 Ncm(62.32 oz.in)

Rated Current/phase: 1.68 A

Phase Resistance: 2 ohms

Inductance: 2.5 mH ± 20%(1KHz)

Physical Specifications:

Frame Size: 42 x 42 mm

Body Length: 69.5 mm

Shaft Diameter: Φ5 mm

Shaft Length: 24 mm

Weight: 405.5 g

Driver Specifications:

Output Peak Current: 0 - 2 A

Input Voltage: 10 - 30 VDC

Speed control through external potentiometer 0. 75 - 1250 RPM

Isolation Resistance: More than 100 MΩ

Dielectric strength: 500VAC for 1MIN.

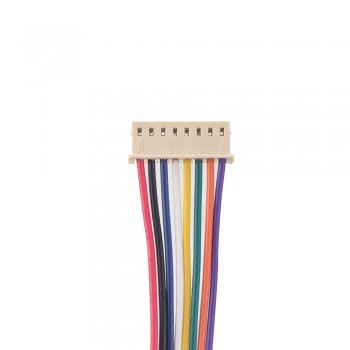

Connection

V+	GND	ENA	ON	H/L	DIR	Vr	SPD
Red	Black	Blue	White	Yellow	Green	Orange	Purple

Resources

Full Datasheet: ISC02-04.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Integrated Stepper Motor 1.8 Deg 0.44Nm(62.32 oz-in) 1.68A with Driver 10-30VDC ISD02
Next: Nema 23 Integrated Stepper Motor 1.8 Deg 126 Ncm(178.4oz.in) 2.8A with Driver Controller ISC04 12-38VDC

Integrate Stepper Servo Motor Specification
Input Voltage (V)	10 - 30
Electrical Specification
Holding Torque (Ncm)	44
Holding Torque (oz.in)	62.32
Inductance(mH)	2.5
Phase Resistance(ohm)	2
Rated Current (A)	1.68
Step Angle(°)	1.8
Stepper Driver Specification
Output Current(A)	0 - 2
Physical Specification
Body Length(mm)	69.5
Frame Size(mm)	42x42
Shaft Diameter(mm)	5
Shaft Length(mm)	24
