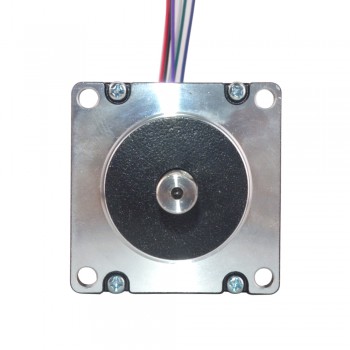

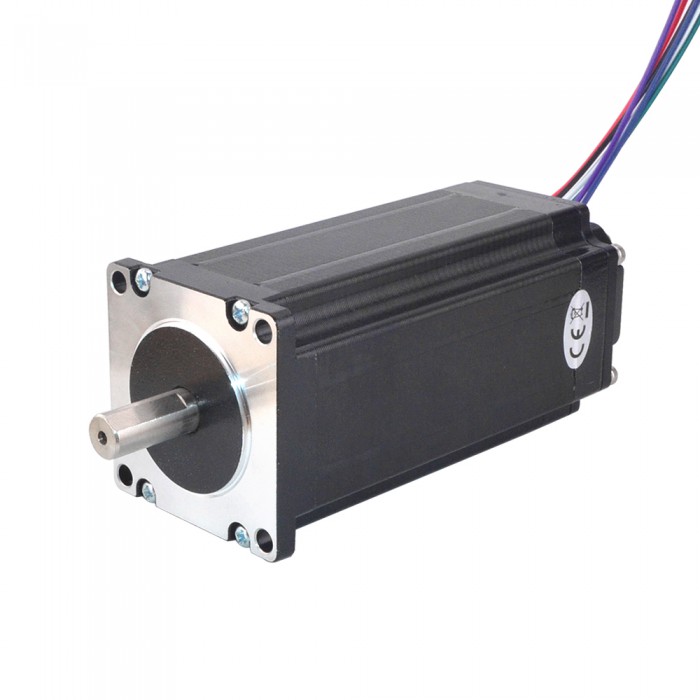

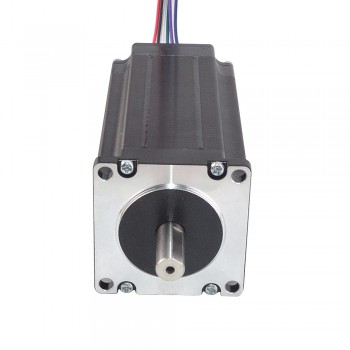

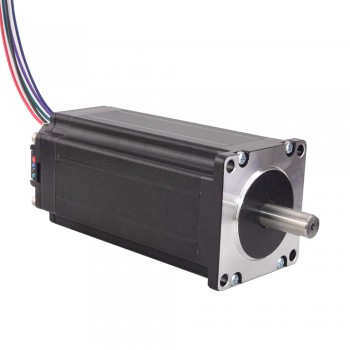

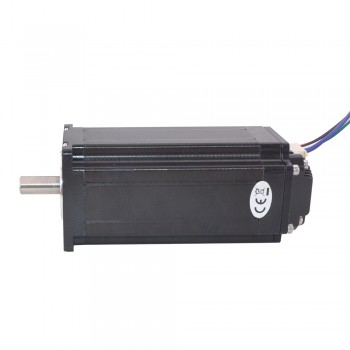

Nema 23 Integrated Stepper Motor 300 Ncm(425oz.in) w/ Driver ISD08 12-38VDC

NO.:ISD08-30
Review: Post a review
Latest price:$140.45
Buy It Now:$93.64
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$90.71 $87.78 $84.85 $79.01
Add To Cart

Electrical Specifications:

  • Manufacturer Part Number: ISD08-30
  • Step Angle: 1.8 deg
  • Holding Torque: 300 Ncm(425oz.in)
  • Rated Current/phase: 4.2 A
  • Phase Resistance: 0.9 ohms
  • Inductance: 3.8 mH ± 20%(1KHz)

Physical Specifications:

  • Frame Size: 57 x 57 mm
  • Body Length: 133 mm
  • Shaft Diameter: Φ10 mm
  • Shaft Length: 24 mm
  • Weight: 1850 g

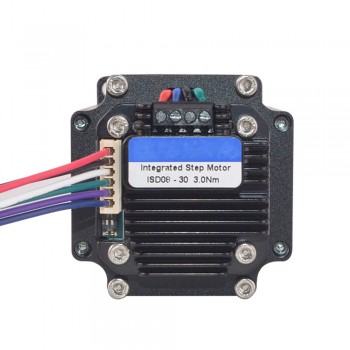

Driver Specifications:

  • Output Peak Current: 3 - 8 A
  • Input Voltage: 12 - 38 VDC
  • Speed control through external potentiometer 0. 75 - 1250 RPM
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

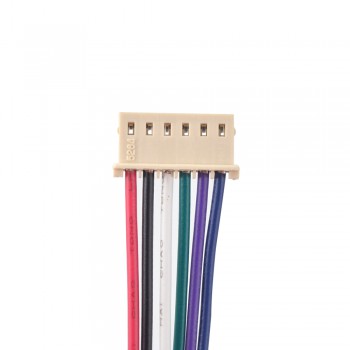

Connection

V+
GND
VCC
DIR
STP
ENA
Red
Black
White
Green
Purple
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Integrated Stepper Motor with Driver 190 Ncm(269oz.in) ISD04 12-38VDC
Next: CNC VFD Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control 0.75KW 1HP 7A 110V
Integrate Stepper Servo Motor Specification
Input Voltage (V) 12 - 38
Electrical Specification
Holding Torque (Ncm) 300
Holding Torque (oz.in) 425
Inductance(mH) 3.8
Phase Resistance(ohm) 0.9
Rated Current (A) 4.2
Step Angle(°) 1.8
Stepper Driver Specification
Output Current(A) 3 - 8
Physical Specification
Body Length(mm) 133
Frame Size(mm) 57 x 57
Shaft Diameter(mm) 10
Shaft Length(mm) 24
