AR3 Open Source Robot Kit - Stepper Motor, Driver & Power Supply

AR3 Open Source Robot Kit - Stepper Motor, Driver & Power Supply
NO.:AR3
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$608.10
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $577.70 5%
5 $565.53 7%
10 $547.29 10%
50 $529.05 13%
Add To Cart
Add To My Favorites
  • Share:
Affiliate Link

Difference between AR3 and AR2 is that each motor in AR3 have rear shaft and mounting holes for encoder.

Here is the youtube video show how to build a AR3 robot by yourself  OPEN SOURCE LOW COST ROBOTS

More details for parts in AR3, please follow below links.

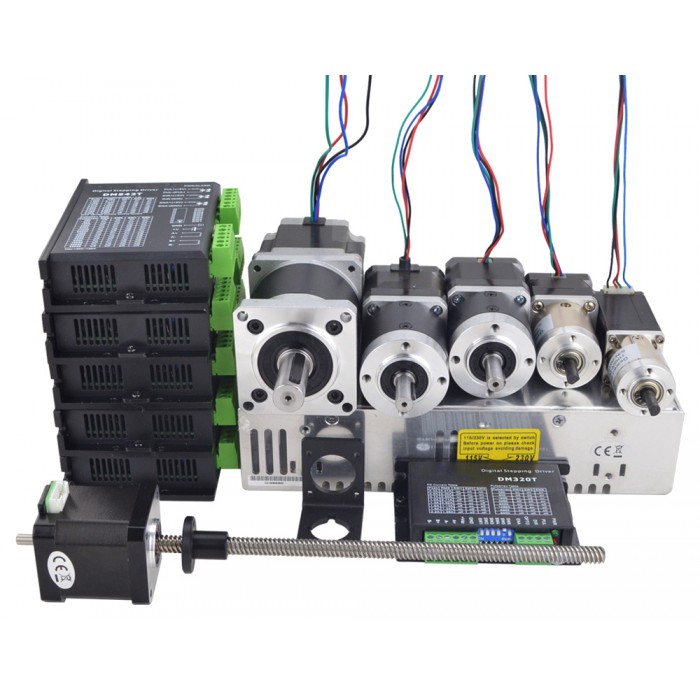

Package includes:

1 x Nema 17 Dual Shaft Stepper Motor L=39mm Gear Ratio 10:1 Planetary Gearbox 9.5mm Rear Shaft Length 17HS15-1684D-HG10-AR3

  • 1 x Nema 23 Dual Shaft Stepper Motor L=56mm Gear Ratio 50:1 Planetary Gearbox 9.5mm Rear Shaft Length 23HS22-2804D-HG50-AR3

  • 1 x Nema 17 Dual Shaft Stepper Motor L=39mm Gear Ratio 50:1 Planetary Gearbox 9.5mm Rear Shaft Length 17HS15-1684D-HG50-AR3

  • 1 x Nema 11 Dual Shaft Stepper Motor Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox 9.5mm Rear Shaft Length 11HS20-0674D-PG14-AR3

  • 1 x Nema 17 External 48mm Stack 1.68A Lead 8mm/0.31496" Length 200mm 17LS19-1684E-200G-AR3

  • 1 x Nema 14 Dual Shaft Stepper Motor Bipolar L=28mm w/ Gear Ratio 19:1 Planetary Gearbox 9.5mm Rear Shaft Length 14HS11-1004D-PG19-AR3

  • 1 x Nema 11 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket ST-M3

  • 1 x Digital Stepper Driver 0.3-2.2A 18-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor DM320T

  • 5 x Digital Stepper Driver 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor DM542T

  • 1 x 250W 24V 10A 115/230V Switching Power Supply Stepper Motor CNC Router Kits S-250-24



    • Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

    Prev: AR2 Open Source Robot Stepper Motor Kit with Stepper Motor, Driver & Power Supply
    Next: AR3 Open Source Robot Kit CNC Stepper Motor Kit
    CNC Kit Specification
    No of Axis AR2
    Open-loop/Closed-loop Open-loop
