MeanWell HDR-15-12 15W 12VDC 1.25A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply

MeanWell HDR-15-12 15W 12VDC 1.25A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
Review: Post a review
Latest price:$14.52
Buy It Now:$9.68
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $9.20 5%
30 $9.00 7%
50 $8.71 10%
100 $8.23 15%
Add To Cart

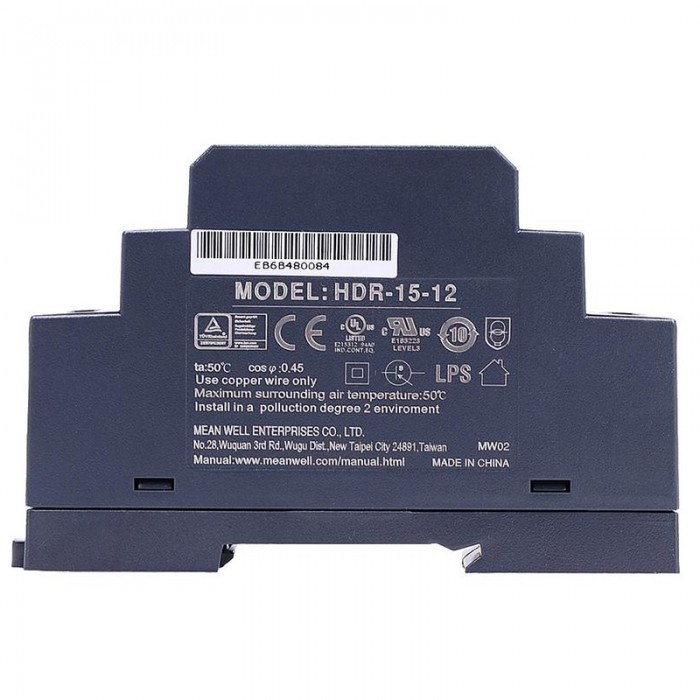

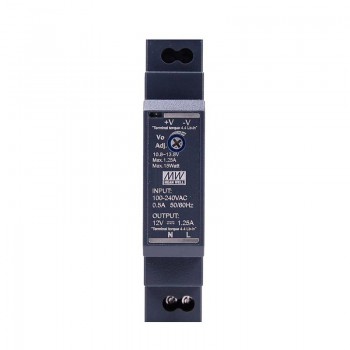

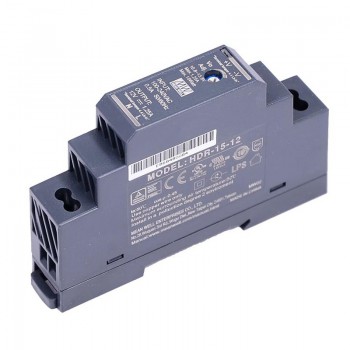

HDR-15-12 MEAN WELL 15W 12VDC 1.25A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply


MEAN WELL HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

HDR-15 is designed with plastic housing that it can effectively preventuser from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508,UL62368-1,BS EN/EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.




12V DC 1.25A output

AC input voltage range: 85 ~ 264VAC

Rated power: 15W

UItra slim design with 17.5mm(1SU) width

Universal input 85~264VAC(277VAC operational)

No load power consumption<0.3W

Isolation class II

Pass LPS (Limited power source)

DC output voltage adjustable

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection (working temperature:-30~+70°C)

DIN rail TS-35/7.5 or 15 mountable

LED indicator for power on

Over voltage category Ⅲ

3 years warranty



Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Full Datasheet: HDR-15-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well EDR-75-24 75W 24VDC 3.2A 115/230VAC DIN Rail Power Supply
Next: Mean Well HDR-15-24 15W 24VDC 0.63A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 1.25
Power(W) 15
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 17.5 x 90 x 54.5 / 0.69 x 3.54 x 2.15
Input Frequency(Hz) 47 - 63
Efficiency(%) 85%
Physical Specification
