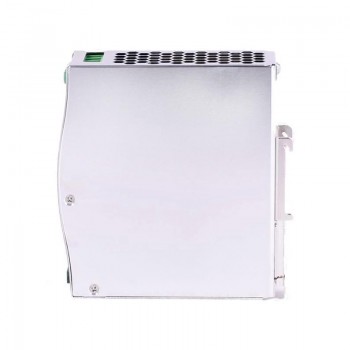

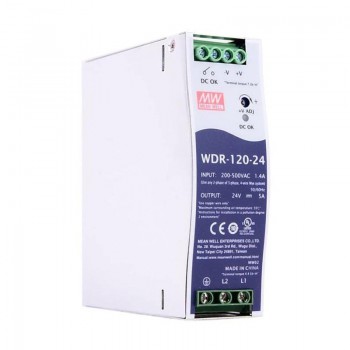

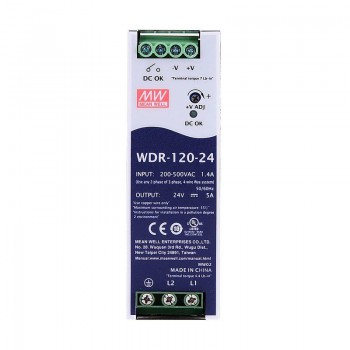

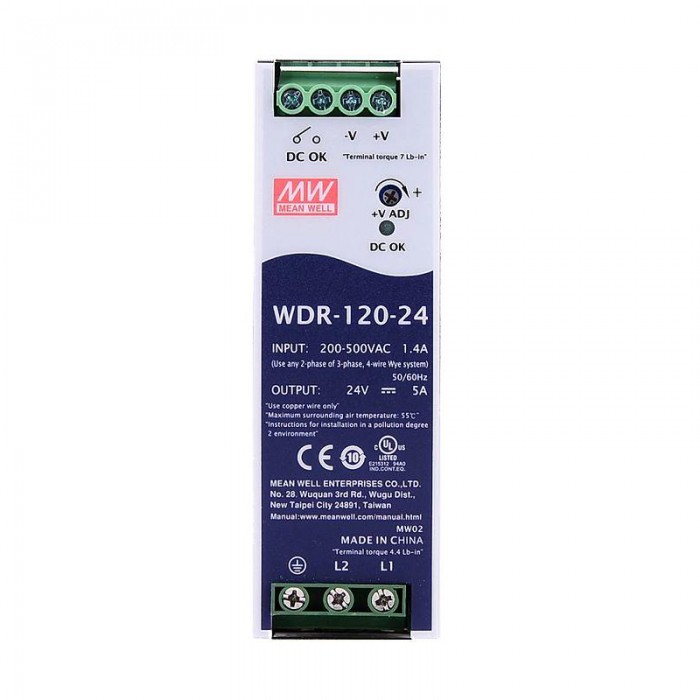

Meanwell WDR-120-24 120W 24VDC 5A 180~550VAC DIN Rail Power Supply

Meanwell WDR-120-24  120W 24VDC 5A 180~550VAC DIN Rail Power Supply
NO.:WDR-120-24
Review: Post a review
Latest price:$70.26
Buy It Now:$46.84
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $44.50 5%
10 $43.56 7%
50 $42.16 10%
100 $39.81 15%
Add To Cart

WDR-120-24 MEAN WELL 120W 24VDC 5A 180~550VAC DIN Rail Power Supply



Features

Brand MEANWELL

24V DC 5A output

AC input voltage range: 180 ~ 550VAC

Rated power: 120W

Single and two phase wide input range 180~550VAC

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Built-in constant current limiting circuit

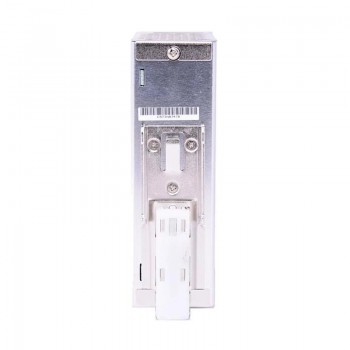

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

Buil-in DC OK relay contact

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: WDR-120-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell SDR-75-12 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply
Next: PLE Series Planetary Gearbox Gear Ratio 5:1 Backlash 15 Arcmin for Nema 17 Stepper Motor
Power Supply Specification
Max. Output Current(A) 5
Power(W) 120
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 180 - 550
PFC Function No
Dim.(LxWxH)(mm/in.) 40 x 125.2 x 113.5 / 1.57 x 4.93 x 4.47
Input Frequency(Hz) 47 - 63
Efficiency(%) 91%
Physical Specification
Product Type POWER SUPPLY
