Meanwell MDR-60-12 CNC Power Supply 60W 12VDC 5A 115/230VAC DIN Rail Power Supply
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$19.93

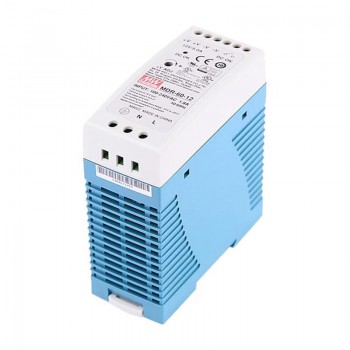

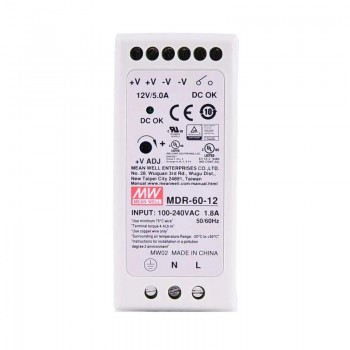

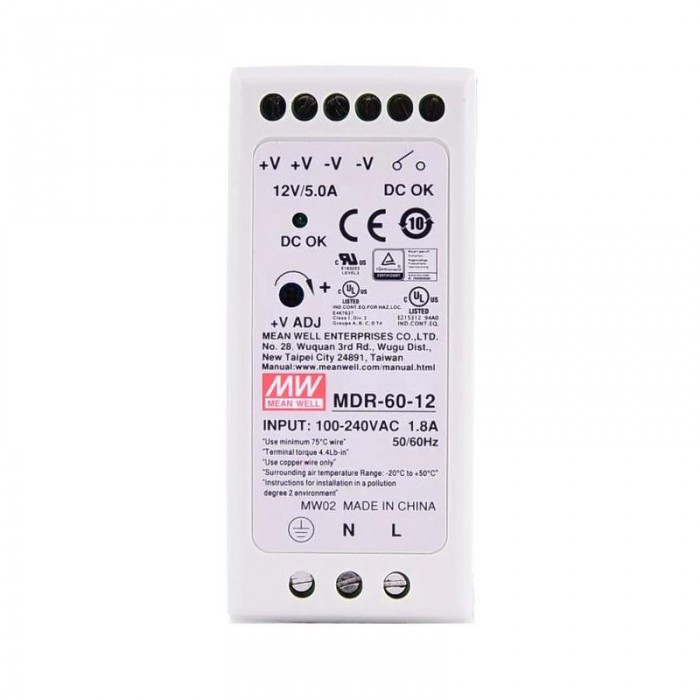

MDR-60-12 MEAN WELL 60W 12VDC 5A 115/230VAC DIN Rail Power Supply
Features
Brand MEANWELL
12V DC 5A output
AC input voltage range: 85 ~ 264VAC
Rated power: 60W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Class I, Div 2 Hazardous Locations T4
LED indicator for power on
DC OK relay contact
No load power consumption<0.75W
100% full load burn-in test
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Resources
Full Datasheet: MDR-60-12.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 5 |
| Power(W) | 60 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 12 |
| Input Voltage(VAC/VDC) | 85 - 264 / 120 - 370 |
| Dim.(LxWxH)(mm/in.) | 40 x 90 x 100 / 1.57 x 3.54 x 3.94 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 86% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
