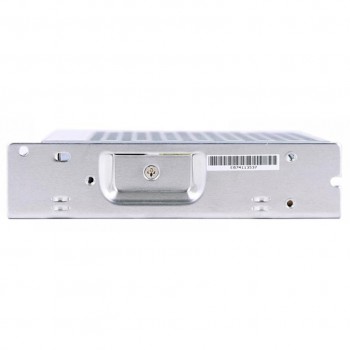

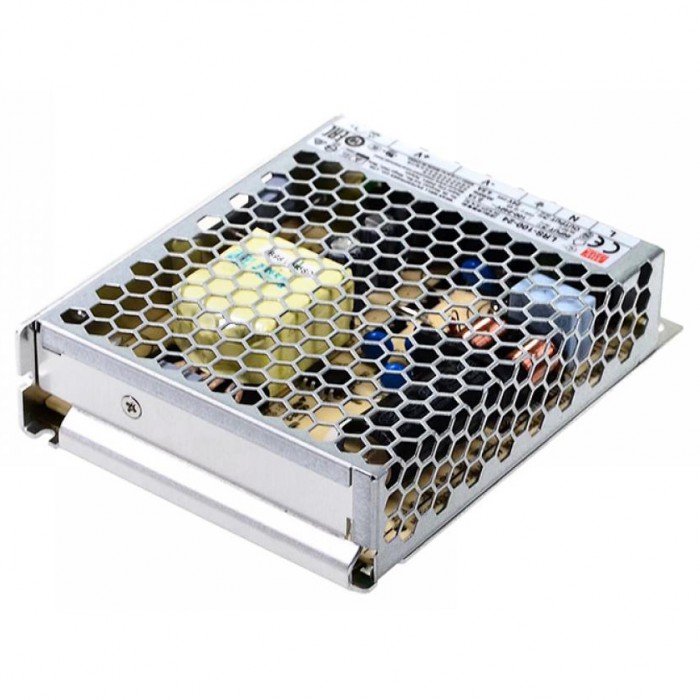

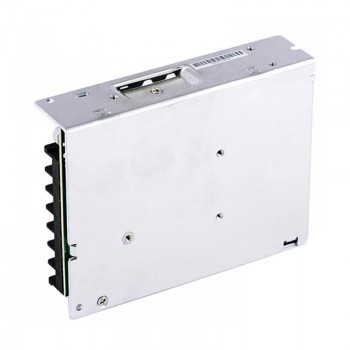

Meanwell LRS-100-24 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply

Meanwell LRS-100-24 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-100-24
Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$13.56
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $12.89 5%
30 $12.61 7%
50 $12.21 10%
100 $11.53 15%
Add To Cart

LRS-100-24 MEAN WELL 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.

LRS-100 has the complete protection functions and 5G anti¬vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN2368-1, BS EN / EN60335-1, BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

24V DC 4.5A output

AC input voltage range: 85 ~ 264VAC

Rated power: 108W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

Protections: Short circuit/ Overload / Over voltage

Cooling by free air convection

Miniature size and 1U low profile

Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters (Note.7)

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.3W

Over voltage category III

100% full load burn-in test

High operating temperatir up 70°C

High efficiency, long life and reliability

3 years warranty

3 year warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-100-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well LRS-100-12 100W 12VDC 8.5A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-100-48 100W 48VDC 2.3A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 4.5
Power(W) 108
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
PFC Function No
Dim.(LxWxH)(mm/in.) 129 x 97 x 30 / 5.08 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 90%
Physical Specification
Product Type POWER SUPPLY
