Mean Well LRS-100-5 CNC Power Supply 100W 5VDC 18A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation: Full Datasheet:

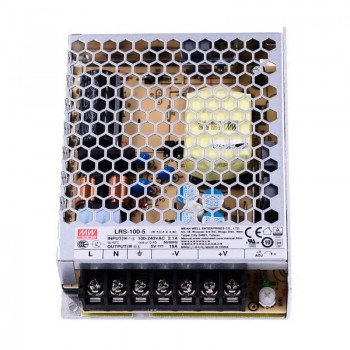

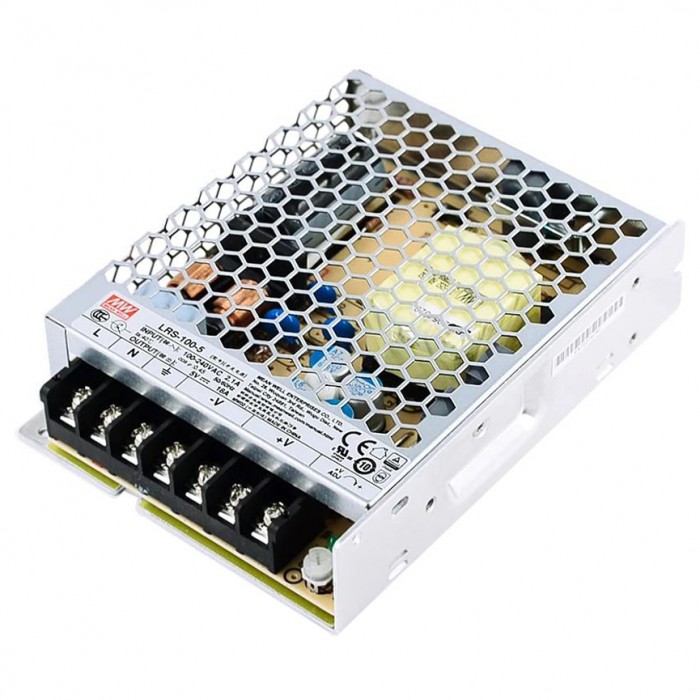

LRS-100-5 MEAN WELL 100W 5VDC 18A 115/230VAC Enclosed Switching Power Supply
MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.
Features
Brand MEANWELL
5V DC 18A output
AC input voltage range: 85 ~ 264VAC
Rated power: 90W
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Miniature size and 1U low profile
Compliance to IEC / BS EN / EN 60335-1 (PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances
Operating altitude up to 5000 meters (Note.7)
Withstand 5G vibration test
LED indicator for power on
No load power consumption < 0.3W
Over voltage category III
High operating temperatir up 70°C
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 18 |
| Power(W) | 90 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 5 |
| Input Voltage(VAC/VDC) | 85 - 264 / 120 - 373 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 129 x 97 x 30 / 5.08 x 3.82 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 86% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
