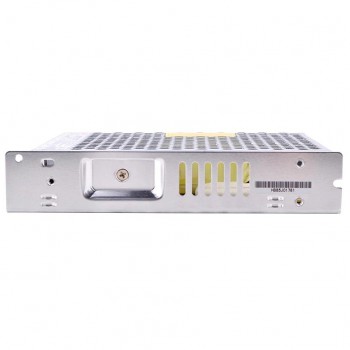

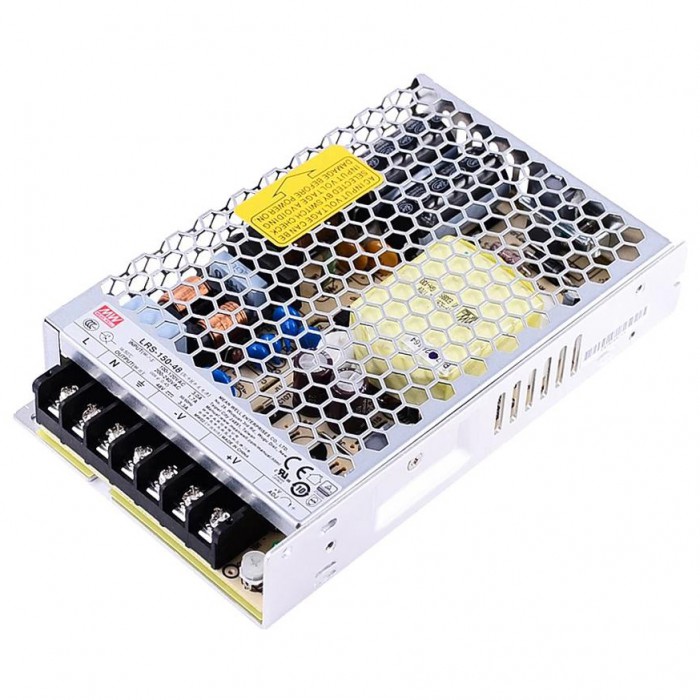

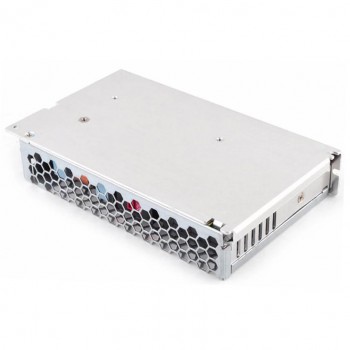

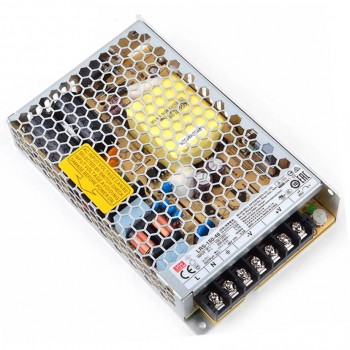

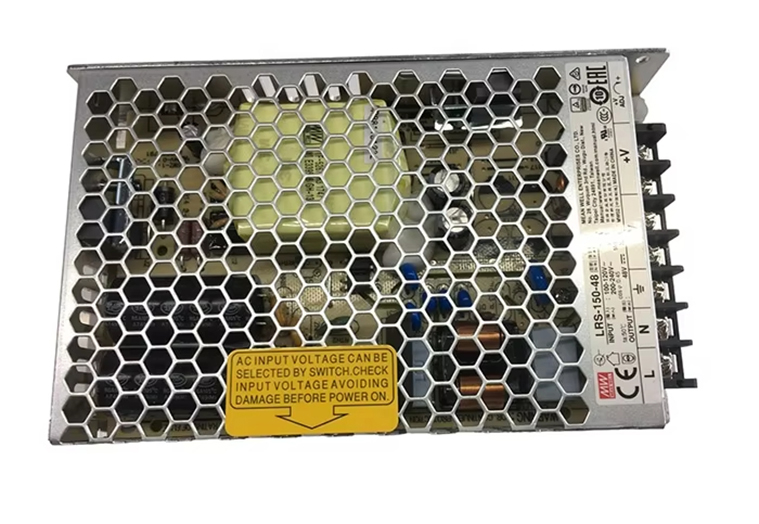

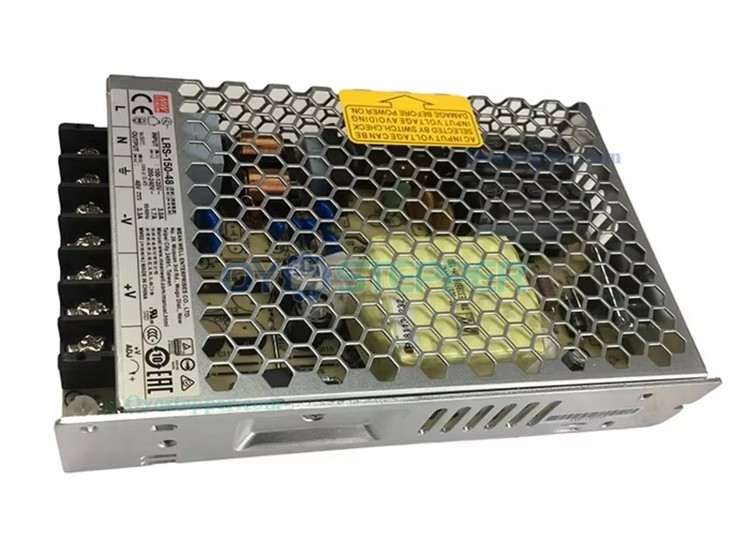

Meanwell LRS-150-48 CNC Power Supply 150W 48VDC 3.3A 115/230VAC Enclosed Switching Power Supply
LRS-150-48 MEAN WELL 150W 48VDC 3.3A 115/230VAC Enclosed Switching Power Supply

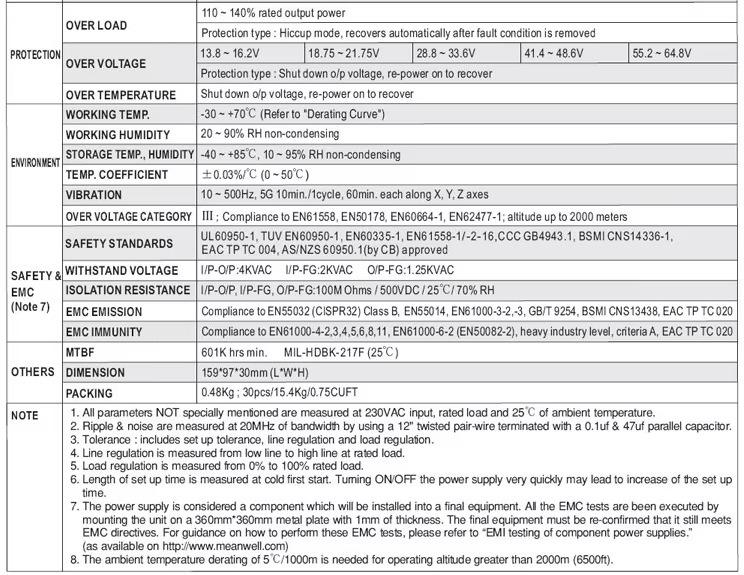

Key Specifications:
Output: 48V DC / 3.3A
Input Voltage: 85–132VAC / 170–264VAC
Rated Power: 150W (maximum 158.4W depending on model)
Surge Withstand: 300VAC for 5 seconds
Cooling: Free air convection
Operating Altitude: up to 5000m
Compliance: EN60335-1, EN61558-1/-2-16, UL62368-1, GB4943
3-year manufacturer warranty;
Typical Applications:
Industrial automation and control
Mechanical and electronic equipment
Measurement and testing instruments
Household electronics (compliant with IEC 60335)；
.jpg)
.jpg)
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

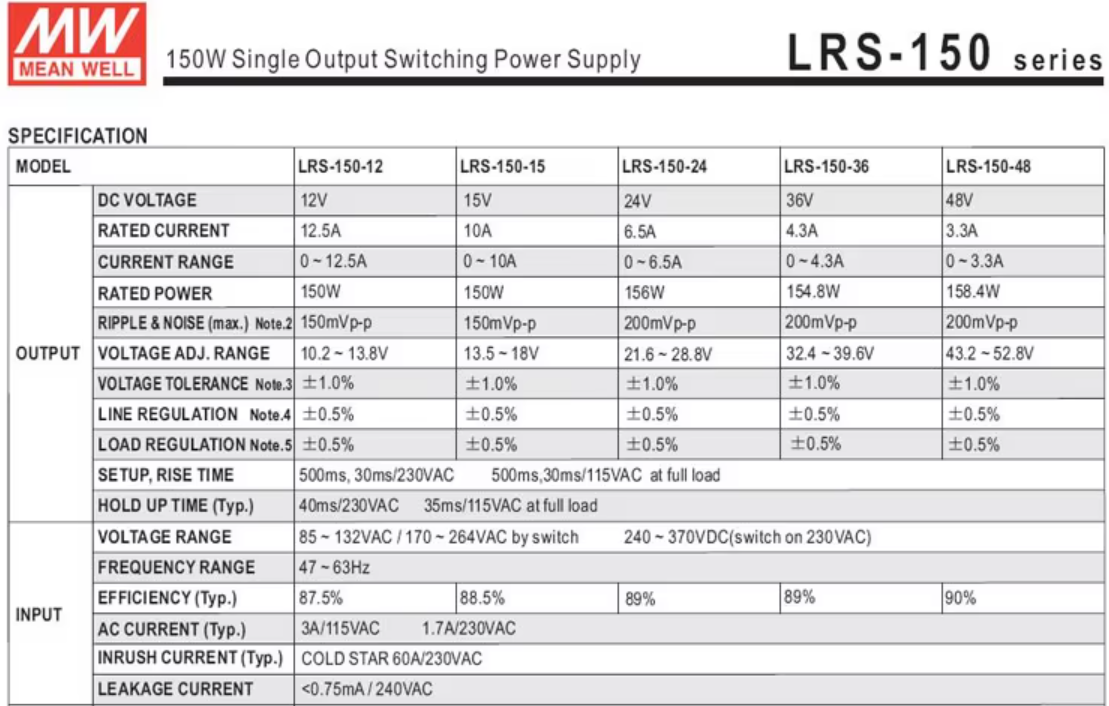

| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 3.3 |
| Power(W) | 158.4 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 48 |
| Input Voltage(VAC/VDC) | 85 - 132 / 170 - 264 |
| PFC Function | No |

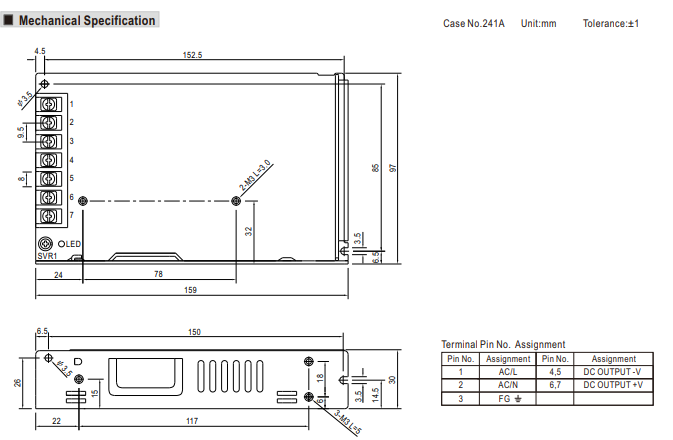

| Dim.(LxWxH)(mm/in.) | 159 x 97 x 30 / 6.26 x 3.82 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 90% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
