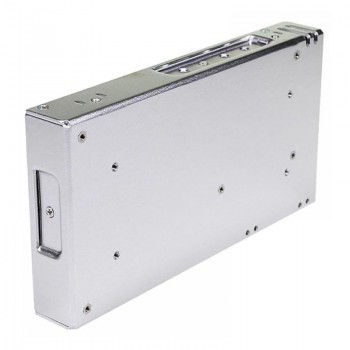

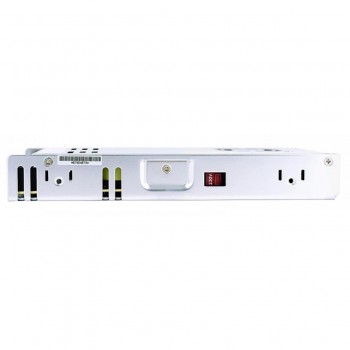

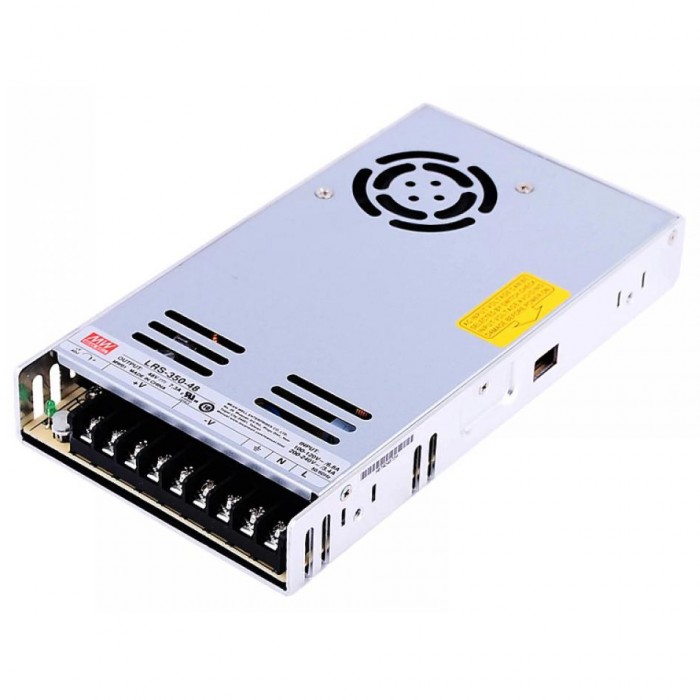

Mean Well LRS-350-48 350W 48VDC 7.3A 115/230VAC Enclosed Switching Power Supply

Mean Well LRS-350-48 350W 48VDC 7.3A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-350-48
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$30.44
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $28.91 5%
10 $28.31 7%
50 $27.40 10%
100 $25.88 15%
Add To Cart

LRS-350-48 MEAN WELL 350W 48VDC 7.3A 115/230VAC Enclosed Switching Power Supply



LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

48V DC 7.3A output

AC input voltage range: 90 ~ 132VAC

Rated power: 350.4W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption<0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus



Resources

Full Datasheet: LRS-350-48.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell LRS-350-36 350W 36VDC 9.7A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-350-5 350W 5VDC 60A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 7.3
Power(W) 350.4
Brand MEANWELL
Output Voltage(VDC) 48
Input Voltage(VAC/VDC) 90 - 132 / 180 - 264
Input Frequency(Hz) 47 - 63
Efficiency(%) 89%
Physical Specification
Product Type POWER SUPPLY
