Meanwell LRS-75-24 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply

Meanwell LRS-75-24 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-75-24
Review: Post a review
Latest price:$15.10
Buy It Now:$10.07
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $9.57 5%
30 $9.37 7%
50 $9.06 10%
100 $8.56 15%
Add To Cart

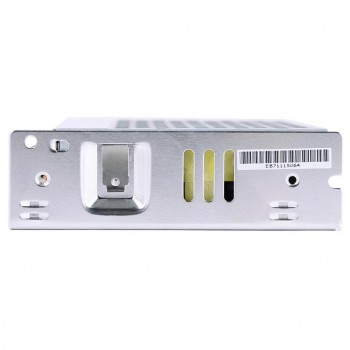

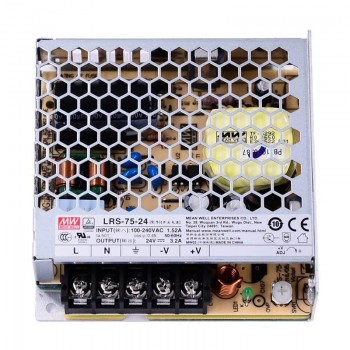

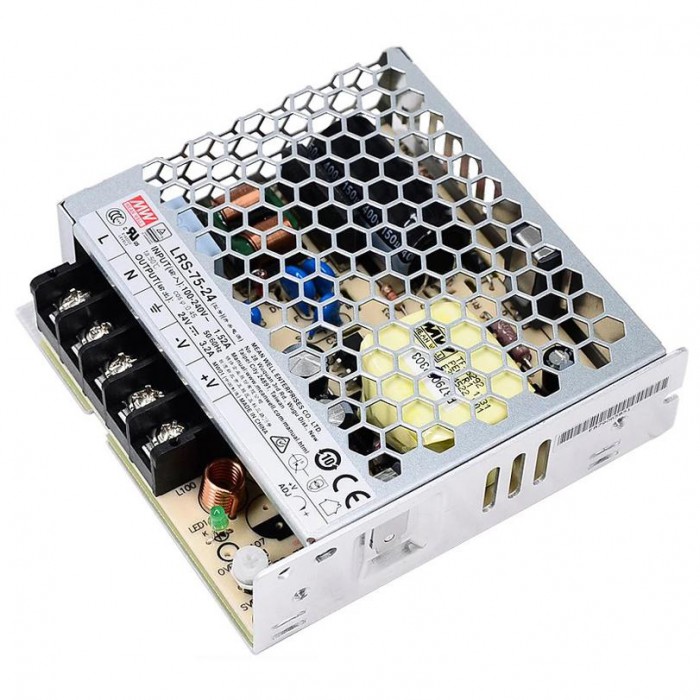

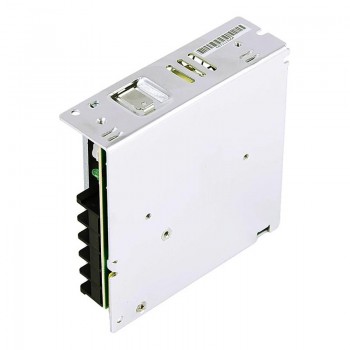

LRS-75-24 MEAN WELL 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.

LRS-75 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1,BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

24V DC 3.2A output

AC input voltage range: 85 ~ 264VAC

Rated power: 76.8W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

No load power consumption < 0.3W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, -2-16 for household appliances

Operating altitude up to 5000 meters (Note.7)

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-75-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well LRS-75-12 75W 12VDC 6A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well MDR-10-24 10W 24VDC 0.42A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 3.2
Power(W) 76.8
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
PFC Function No
Dim.(LxWxH)(mm/in.) 99 x 97 x 30 / 3.90 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 90%
Physical Specification
Product Type POWER SUPPLY
