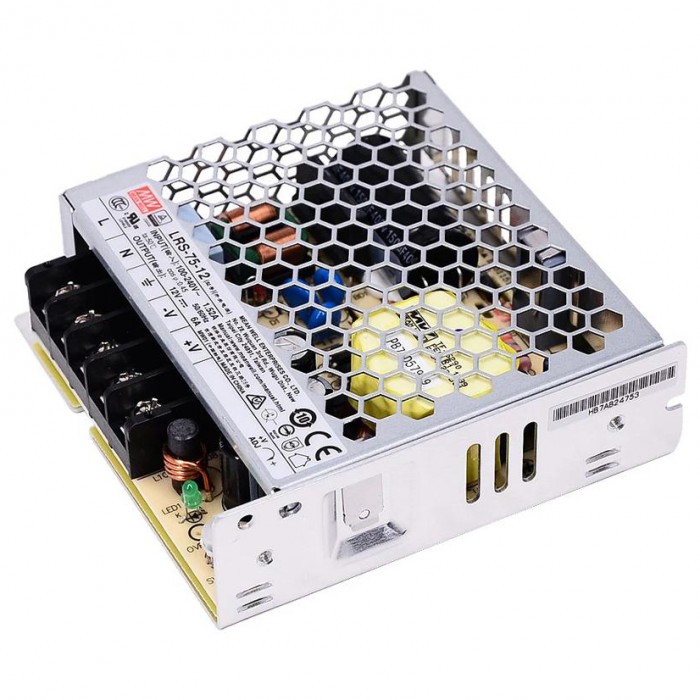

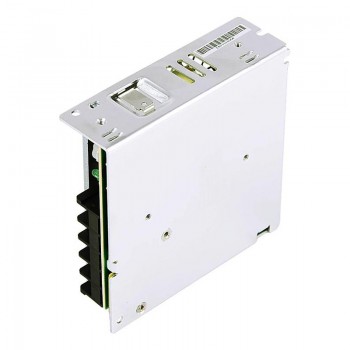

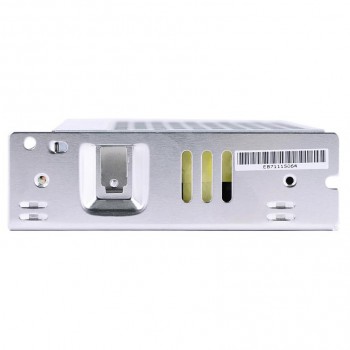

Mean Well LRS-75-12 CNC Power Supply 75W 12VDC 6A 115/230VAC Enclosed Switching Power Supply

Mean Well LRS-75-12 CNC Power Supply 75W 12VDC 6A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-75-12
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$13.56
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $12.88 5%
30 $12.61 7%
50 $12.20 10%
100 $11.80 13%
Add To Cart

LRS-75-12 MEAN WELL 75W 12VDC 6A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.

LRS-75 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1,BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943.



Features

Brand MEANWELL

12V DC 6A output

AC input voltage range: 85 ~ 264VAC

Rated power: 72W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

No load power consumption < 0.3W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, -2-16 for household appliances

Operating altitude up to 5000 meters (Note.7)

Withstand 5G vibration test

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-75-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well LRS-50-5 CNC Power Supply 50W 5VDC 10A 115/230VAC Enclosed Switching Power Supply
Next: Meanwell LRS-75-24 CNC Power Supply 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 6
Power(W) 72
Brand MEANWELL
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
PFC Function No
Dim.(LxWxH)(mm/in.) 99 x 97 x 30 / 3.90 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 86%
Physical Specification
Product Type POWER SUPPLY
