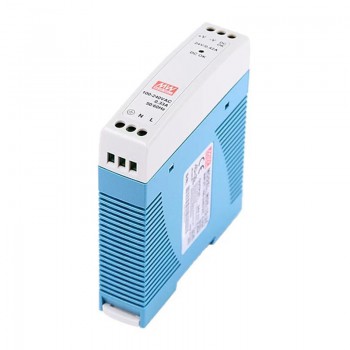

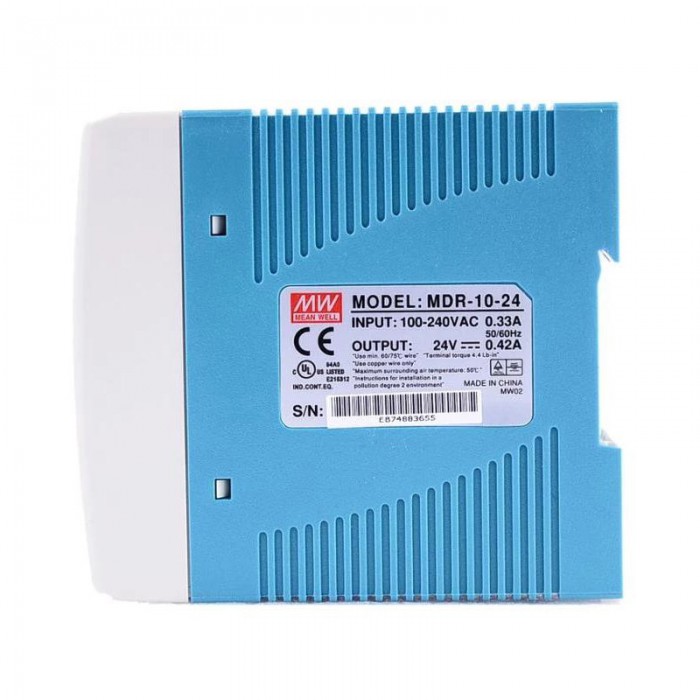

Mean Well MDR-10-24 10W 24VDC 0.42A 115/230VAC DIN Rail Power Supply

Mean Well MDR-10-24 10W 24VDC 0.42A 115/230VAC DIN Rail Power Supply
NO.:MDR-10-24
Review: Post a review
Latest price:$13.35
Buy It Now:$8.90
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $8.46 5%
30 $8.28 7%
50 $8.01 10%
100 $7.57 15%
Add To Cart

MDR-10-24 MEAN WELL 10W 24VDC 0.42A 115/230VAC DIN Rail Power Supply



Features

Brand MEANWELL

24V DC 0.42A output

AC input voltage range: 85 ~ 264VAC

Rated power: 10W

Universal AC input/Full range

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

Built in DC OK active signal

LED indicator for power on

No load power consumption<0.75W

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: MDR-10-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell LRS-75-24 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well MDR-100-12 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 0.42
Power(W) 10
Brand MEANWELL
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 22.5 x 90 x 100 / 0.89 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Efficiency(%) 84%
Physical Specification
Product Type POWER SUPPLY
