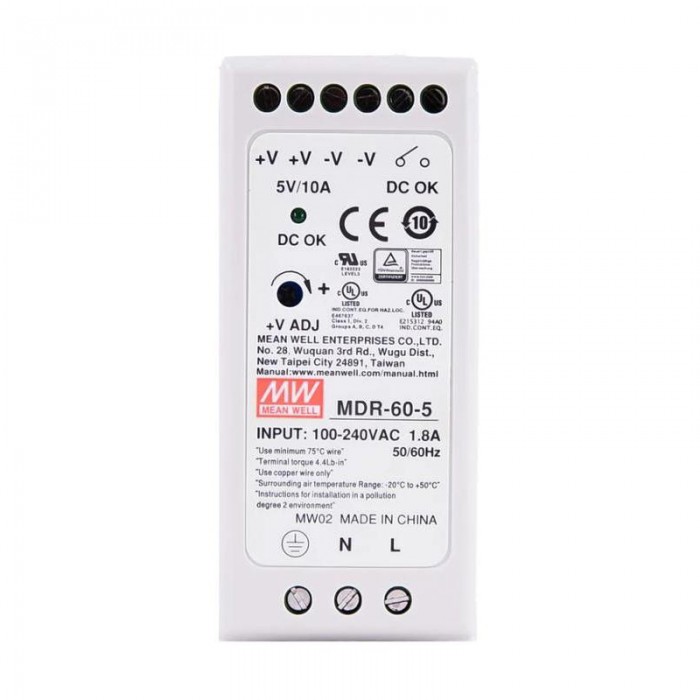

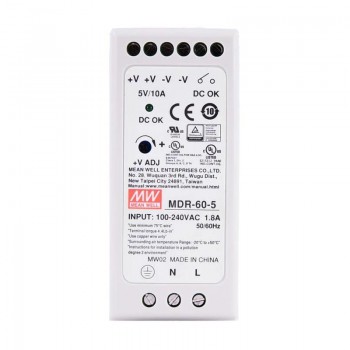

Mean Well MDR-60-5 CNC Power Supply 60W 5VDC 10A 115/230VAC DIN Rail Power Supply

Mean Well MDR-60-5 CNC Power Supply 60W 5VDC 10A 115/230VAC DIN Rail Power Supply
NO.:MDR-60-5
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$20.16
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $19.15 5%
10 $18.75 7%
50 $18.14 10%
100 $17.54 13%
Add To Cart

MDR-60-5 MEAN WELL 60W 5VDC 10A 115/230VAC DIN Rail Power Supply



Features

Brand MEANWELL

5V DC 10A output

AC input voltage range: 85 ~ 264VAC

Rated power: 50W

Universal AC input/Full range

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

Class I, Div 2 Hazardous Locations T4

LED indicator for power on

DC OK relay contact

No load power consumption<0.75W

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: MDR-60-5.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well MDR-60-24 Switching Power Supply 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply
Next: Meanwell NDR-120-24 Switching Power Supply 120W 24VDC 5A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 10
Power(W) 50
Brand MEANWELL
Output Voltage(VDC) 5
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 40 x 90 x 100 / 1.57 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Efficiency(%) 78%
Physical Specification
Product Type POWER SUPPLY
